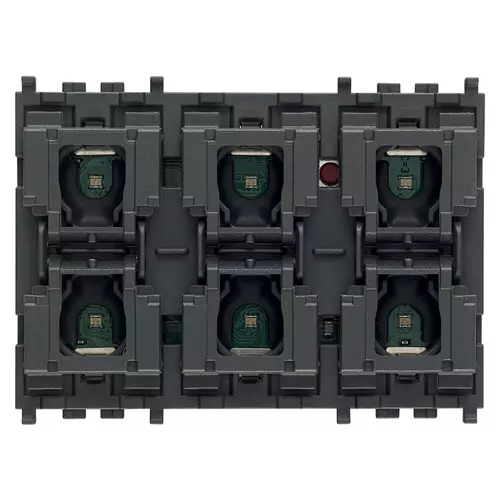

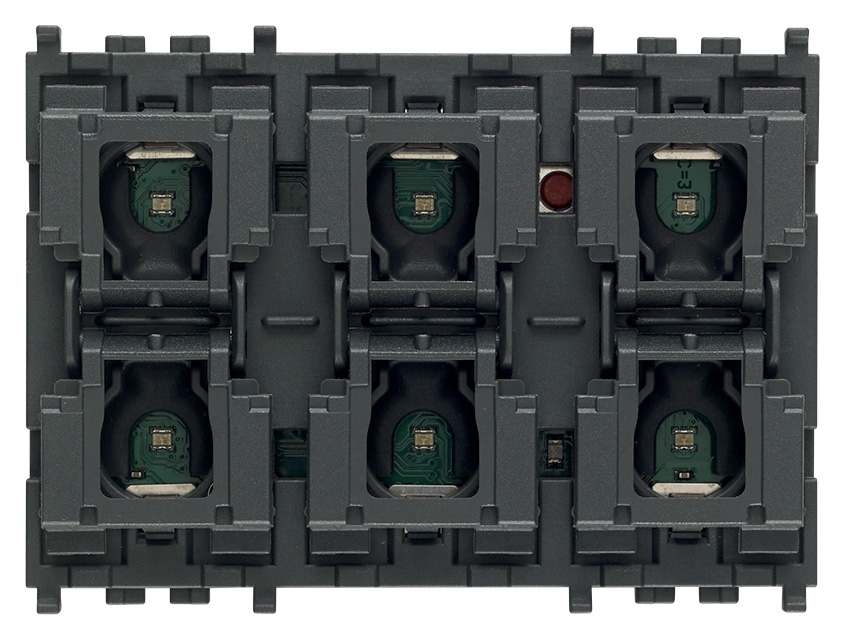

6-button KNX Secure control 3M - 01588

Pdf
Vimar - 01588 - 6-button KNX Secure control 3M
Vimar - 01588 - 6-button KNX Secure control 3M

01588
Smart systems&products / KNX / Shared components / Devices

6-button KNX Secure control 3M

Product Status
3 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
0
Number of actuation points
6
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
Yes
With temperature controller
No
With integrated DCF77 receiver
No
With time switch clock
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
Degree of protection (IP)
IP20
With bus connection
Yes
Min. depth of built-in installation box
25 mm

00. CE Marking - EU

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352756076
1 NR
5.7x5.3x7.7 [cm]
50.6 [g]
Barcode Qty 70 NR
8007352756083
70 NR
39.5x30x17 [cm]
3,924 [g]
