4-button KNX Secure control 2M - 01583

Pdf
Vimar - 01583 - 4-button KNX Secure control 2M
Vimar - 01583 - 4-button KNX Secure control 2M

01583
Smart systems&products / KNX / Shared components / Devices

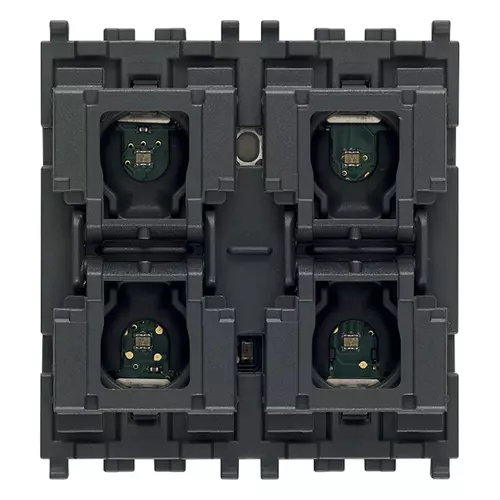

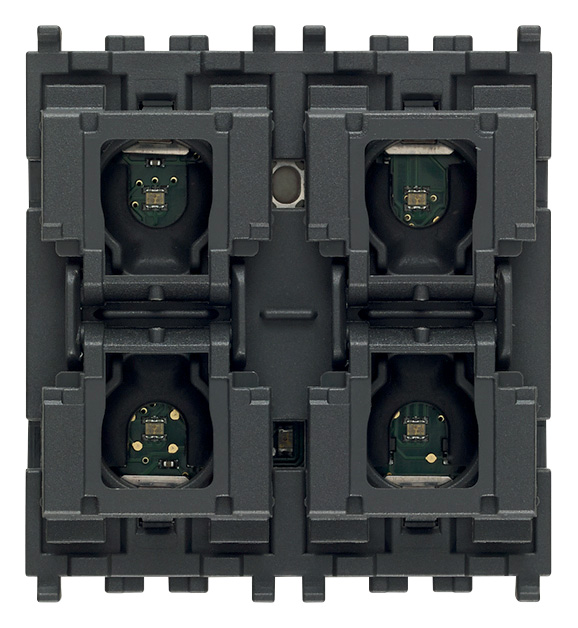

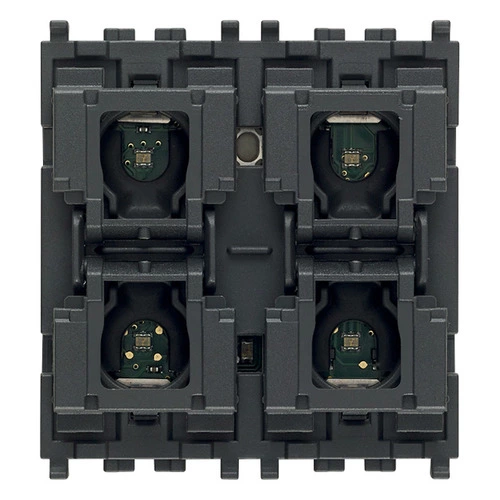

4-button KNX Secure control 2M
Home automation system control device with four push buttons, KNX Secure standard, RGB LED visible in darkness with brightness control, built-in temperature sensor, to be completed with two interchangeable half-button caps: 1 or 2 module Eikon, 2 module Arké or Plana

Product Status
3 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequency bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
0
Number of actuation points
4
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
Yes
With temperature controller
No
With integrated DCF77 receiver
No
With time switch clock
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
Degree of protection (IP)
IP20
With bus connection
Yes
Min. depth of built-in installation box
25 mm

00. CE Marking - EU

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352756038
1 NR
6x5.4x5.2 [cm]
39.2 [g]
Barcode Qty 60 NR
8007352756045
60 NR
37.5x30x13.5 [cm]
2,660 [g]
