6-button KNX control 3M - 01585

01585
Smart systems&products / KNX / Shared components / Devices

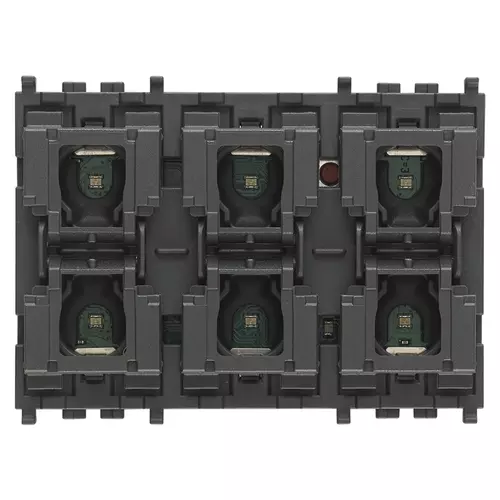

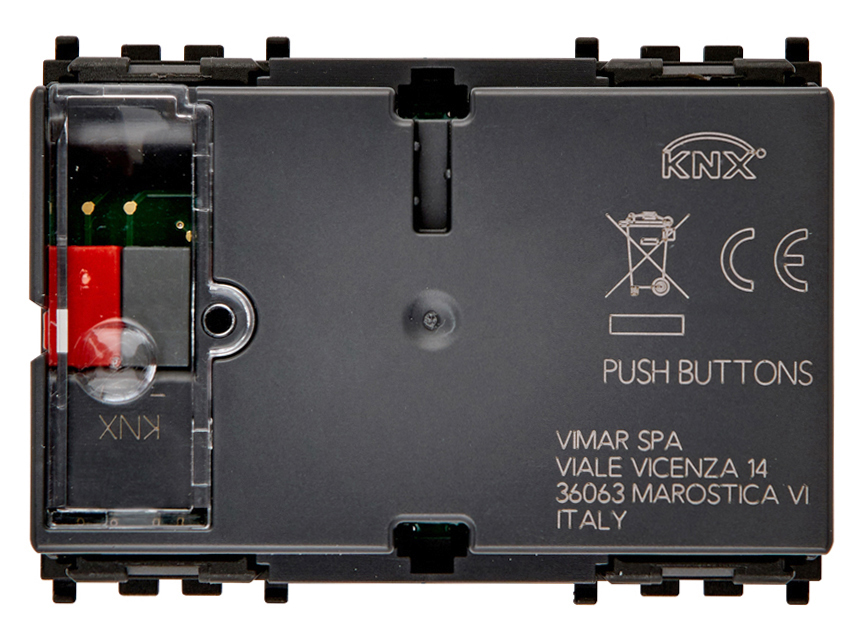

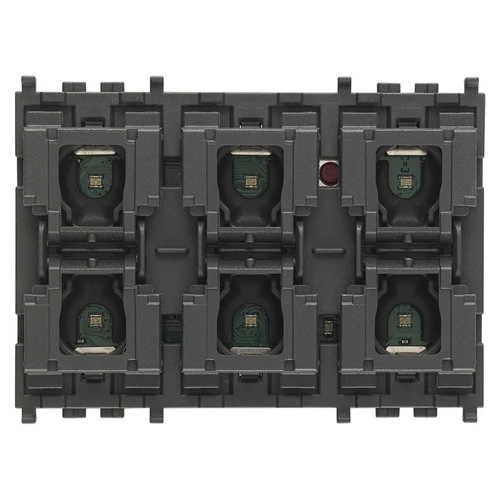

6-button KNX control 3M
6-button home automation device, KNX standard, RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light multilanguage instructions sheet (638 kb)
• Full multilanguage instructions sheet (742 kb)
• Manuale installatore (2893 kb)
• Installer manual (1926 kb)

Product Software

• DB_ComandoSupervisione_KNX_REL-01.17_20230117.zip
• DB_ComandoSupervisione_KNX_REL-01.18_20240618.zip

Video

• Universal home automation controls

---

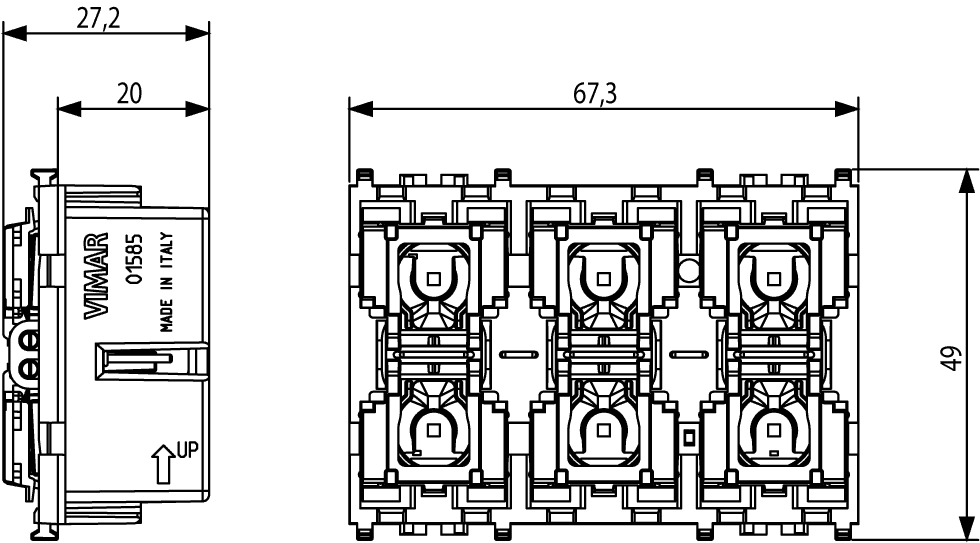

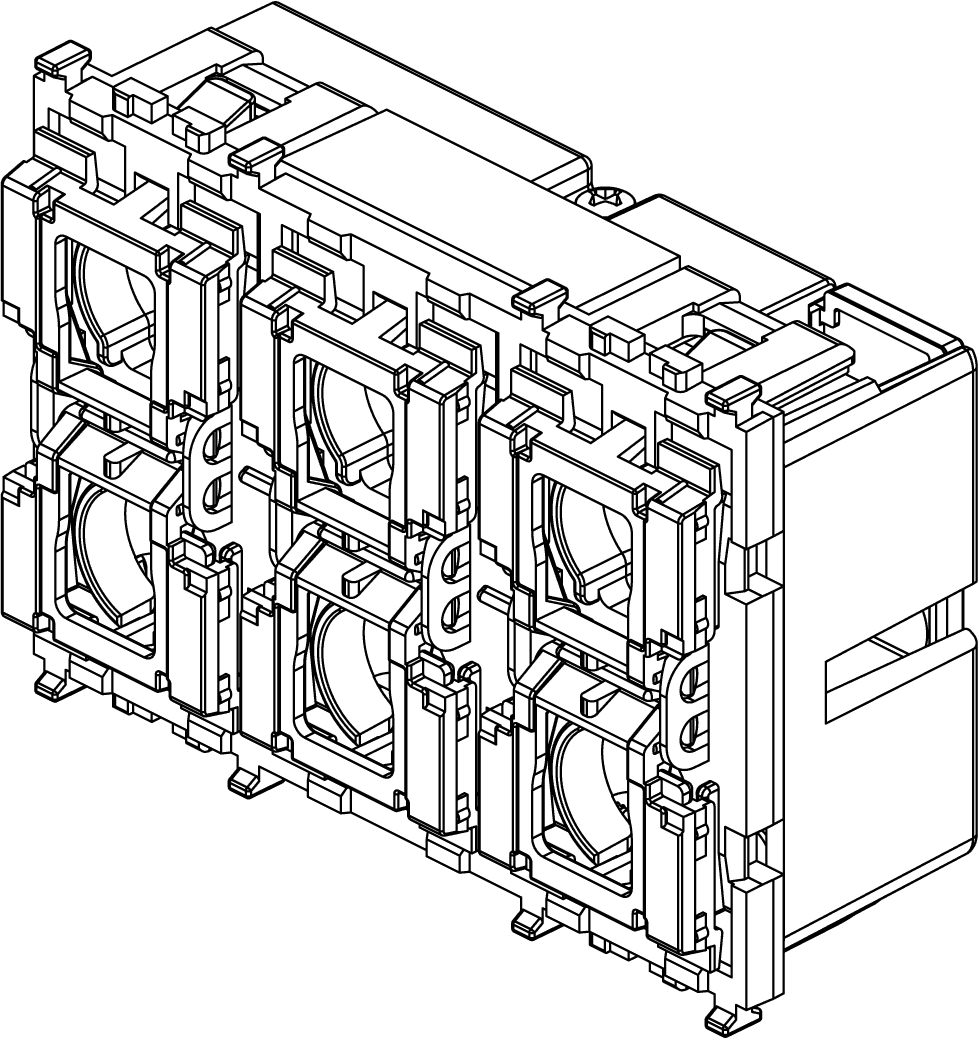

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Multi operating device for bus system

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Radio frequent bidirectional
No

Width in number of modular spacings
3

Material
Other

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Other

RAL-number (similar)
7024

Transparent
No

With bus connection
Yes

00. CE Marking - EU

27. KNX

37. Marking - Morocco

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352593589

1 NR

5.7x5.3x7.7 [cm]

54.2 [g]

8007352633216

70 NR

39.5x30x17 [cm]

4,643.8 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
