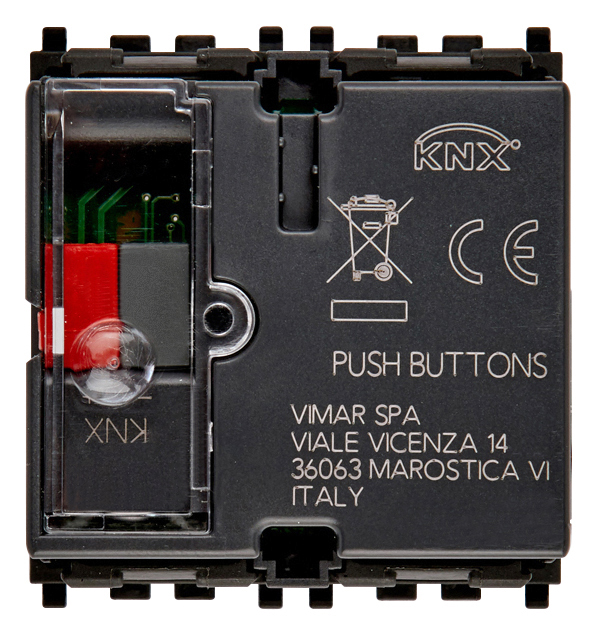

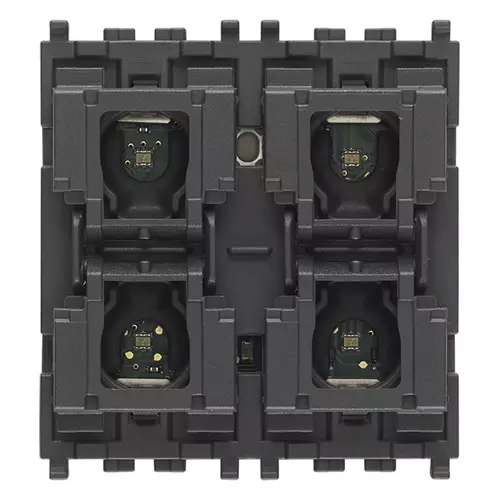

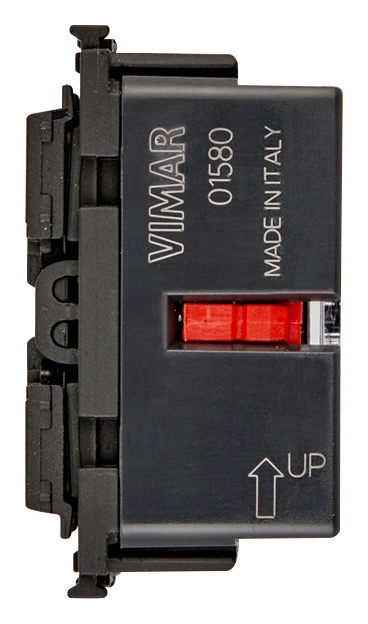

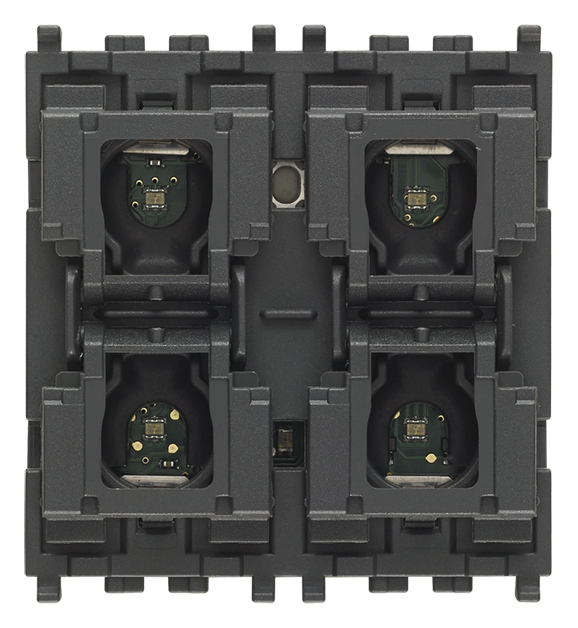

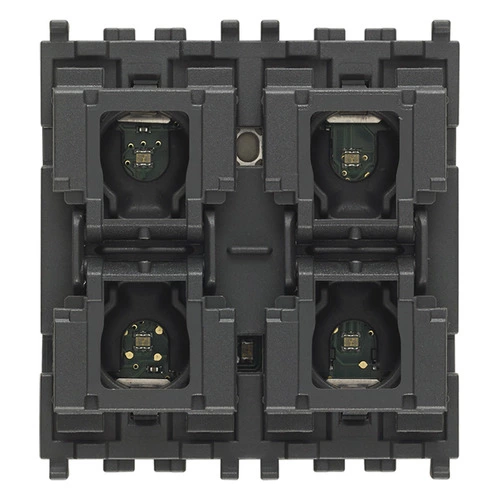

4-button KNX control 2M
4-button home automation device, KNX standard, RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons - 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light multilanguage instructions sheet (638 kb)
• Full multilanguage instructions sheet (742 kb)
• Manuale installatore (2893 kb)
• Installer manual (1926 kb)

Product Software

• DB_ComandoSupervisione_KNX_REL-01.17_20230117.zip
• DB_ComandoSupervisione_KNX_REL-01.18_20240618.zip

Video

• Universal home automation controls

---

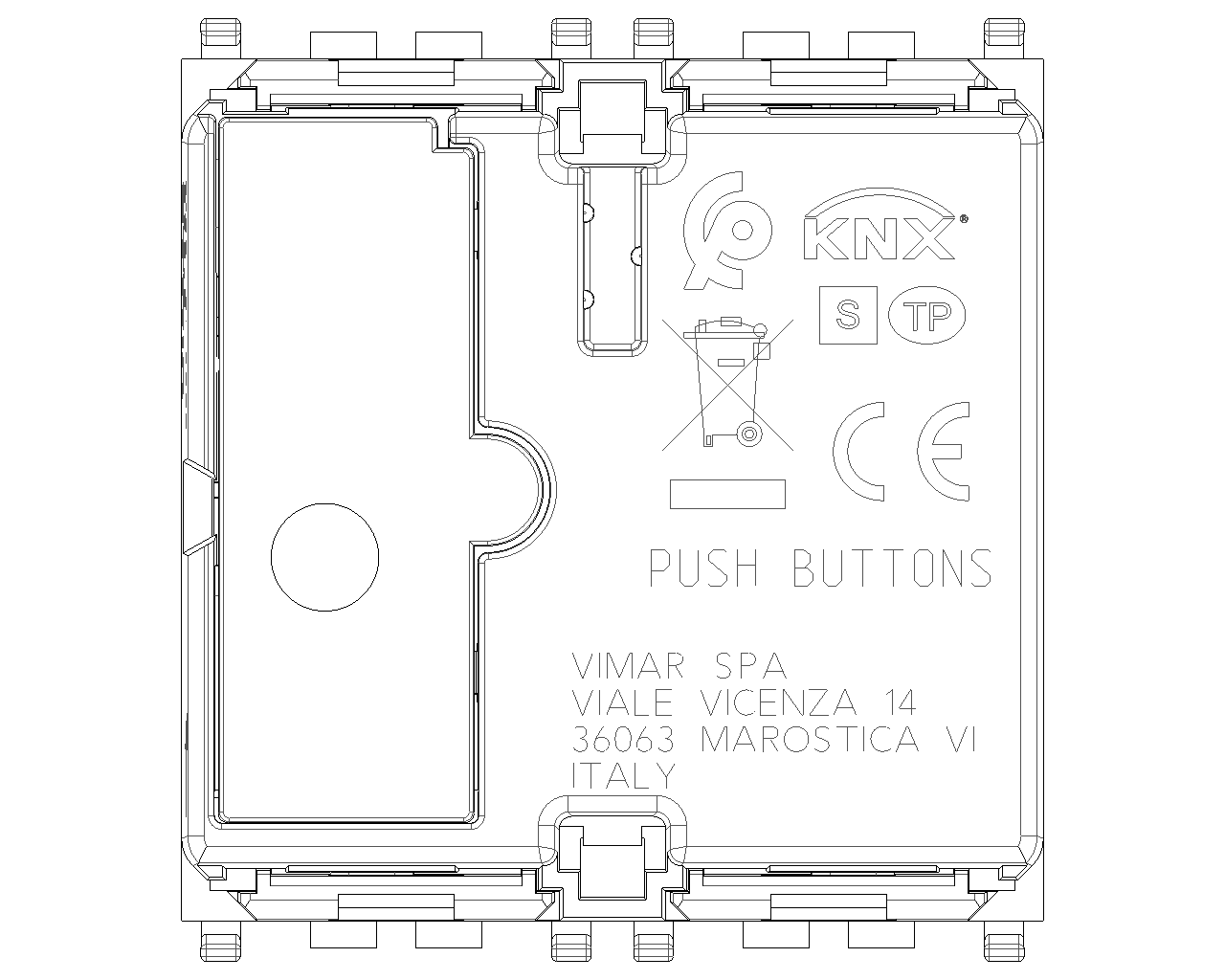

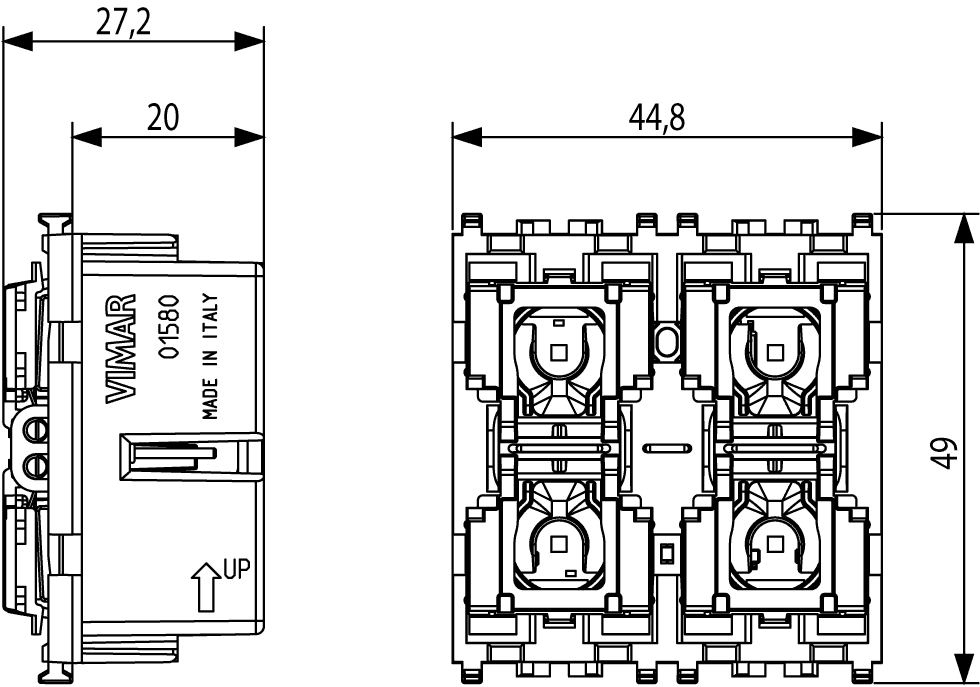

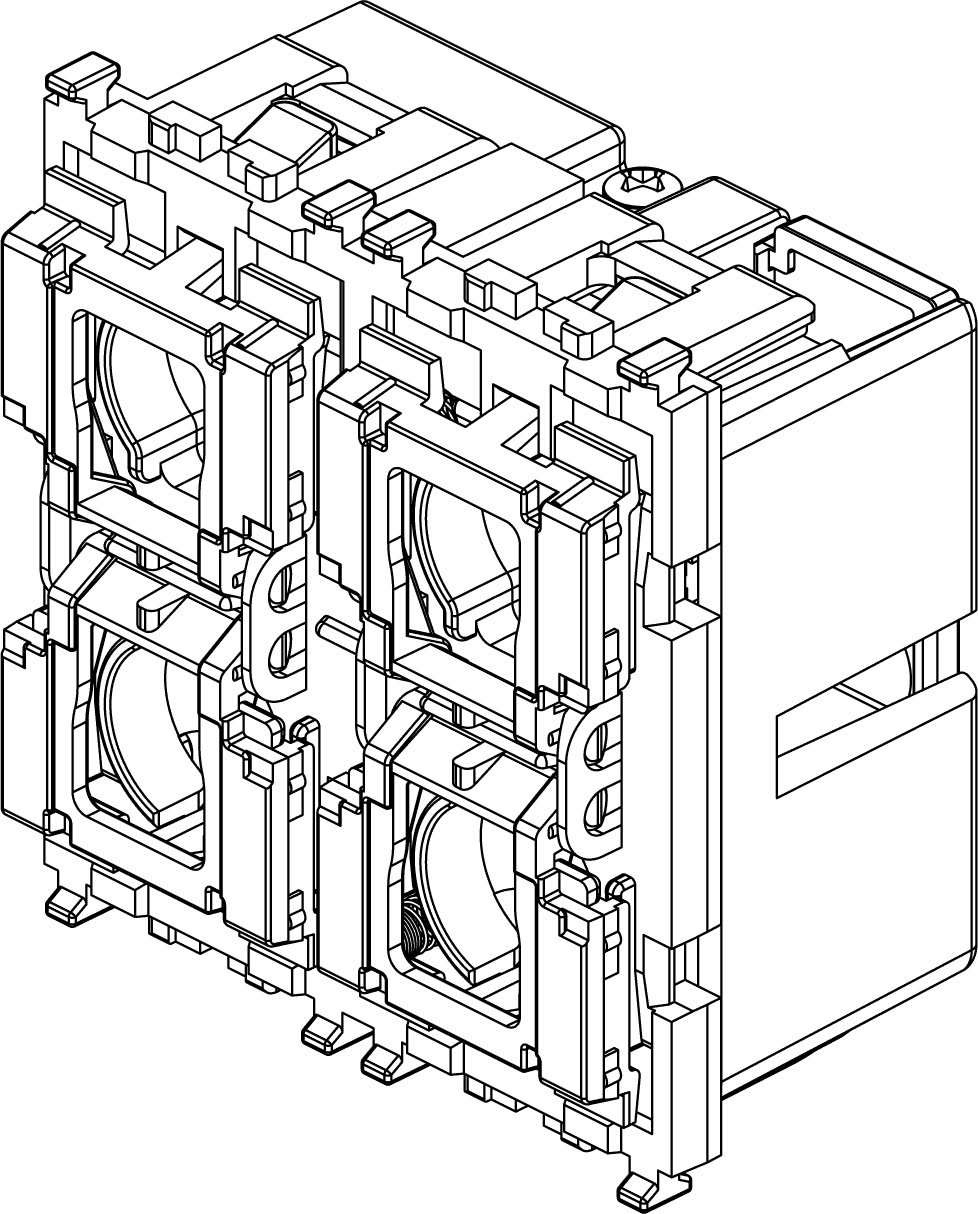

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Multi operating device for bus system

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Radio frequent bidirectional
No

Width in number of modular spacings
2

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Other

RAL-number (similar)
7024

Transparent
No

With bus connection
Yes

00. CE Marking - EU

27. KNX

37. Marking - Morocco

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352593527

1 NR

6x5.4x5.2 [cm]

38.2 [g]

8007352633131

60 NR

37.5x30x13.5 [cm]

2,606 [g]
