1P 16AX reversing switch white - 09013

Pdf

Vimar - 09013 - 1P 16AX reversing switch white

09013
Wiring devices / Traditional wiring devices / NEVE UP / Devices

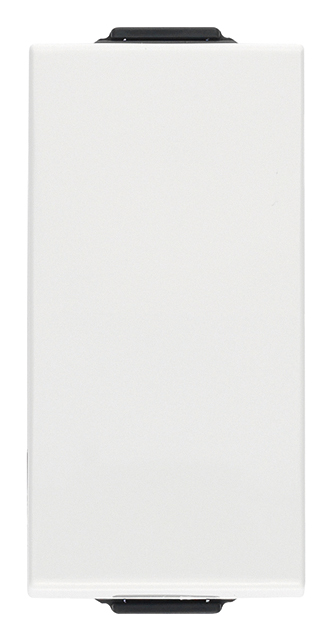

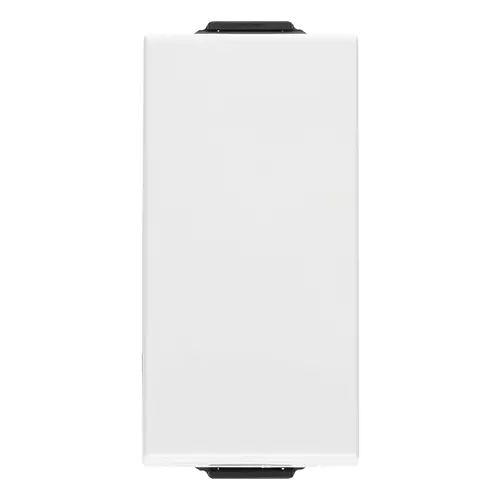

1P 16AX reversing switch white
1P 16 AX 250 V~ reversing switch, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

09013.2 - 1P 16AX reversing switch 2M white

09001 - 1P 16AX 1-way switch white

09005 - 1P 16AX 2-way switch white

09008 - 1P NO 10A push button white

Drawings

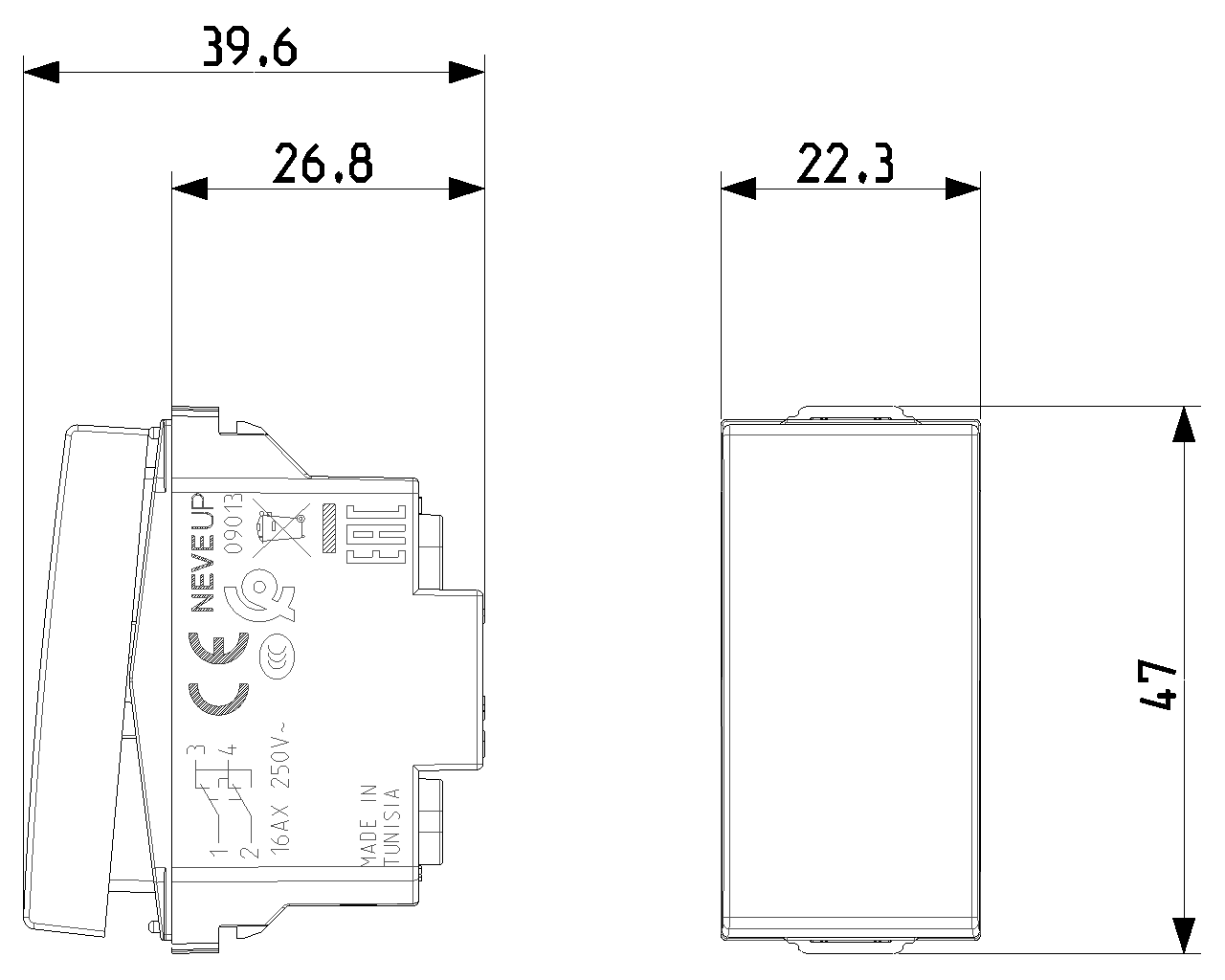

view encumbered art. 09013

PNG DXF

rear view art. 09013

PNG DXF

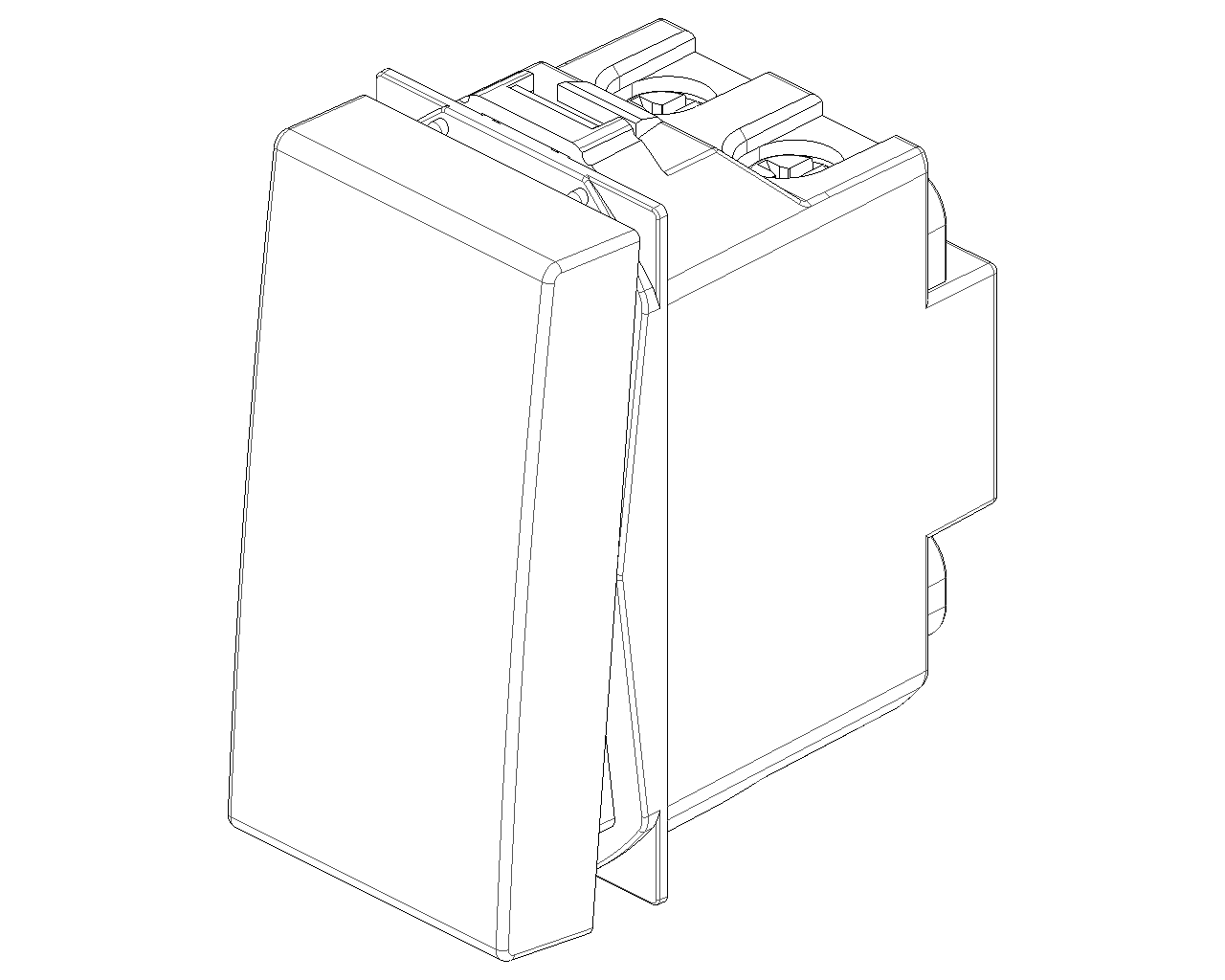

3D view art. 09013

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Intermediate switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Label space/information surface
Yes

Illumination
No

Function lighting
Other

Type of lighting
Other

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
47,00 mm

Device depth
39,50 mm

Built-in depth
26,70 mm

00. CE Marking - EU

07. INGCER - Chile

13. SNI-MGI - Indonesia

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

8007352305038

1 NR

4.1x2.8x5.3 [cm]

31.6 [g]

8007352305045

10 NR

14.4x9x6 [cm]

353.2 [g]

8007352305052

160 NR

37.5x30x13.5 [cm]

5,984 [g]
