1P 16AX 1-way switch white - 09001

Pdf

Vimar - 09001 - 1P 16AX 1-way switch white

09001
Wiring devices / Traditional wiring devices / NEVE UP / Devices

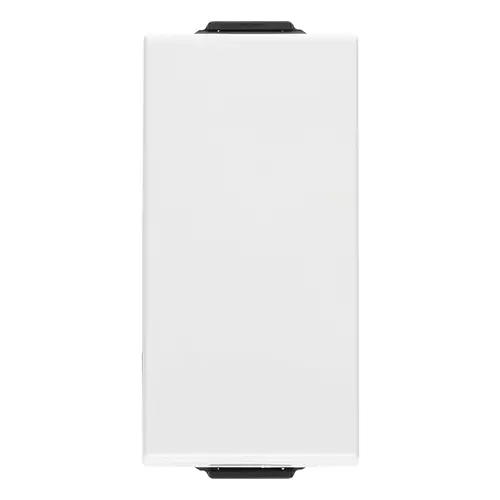

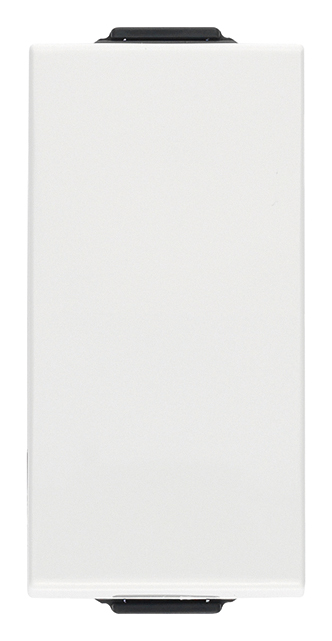

1P 16AX 1-way switch white
1P 16 AX 250 V~ 1-way switch, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

09001.2 - 1P 16AX 1-way switch 2M white

09015 - 2P 16AX 1-way switch white

09005 - 1P 16AX 2-way switch white

09013 - 1P 16AX reversing switch white

09008 - 1P NO 10A push button white

Drawings

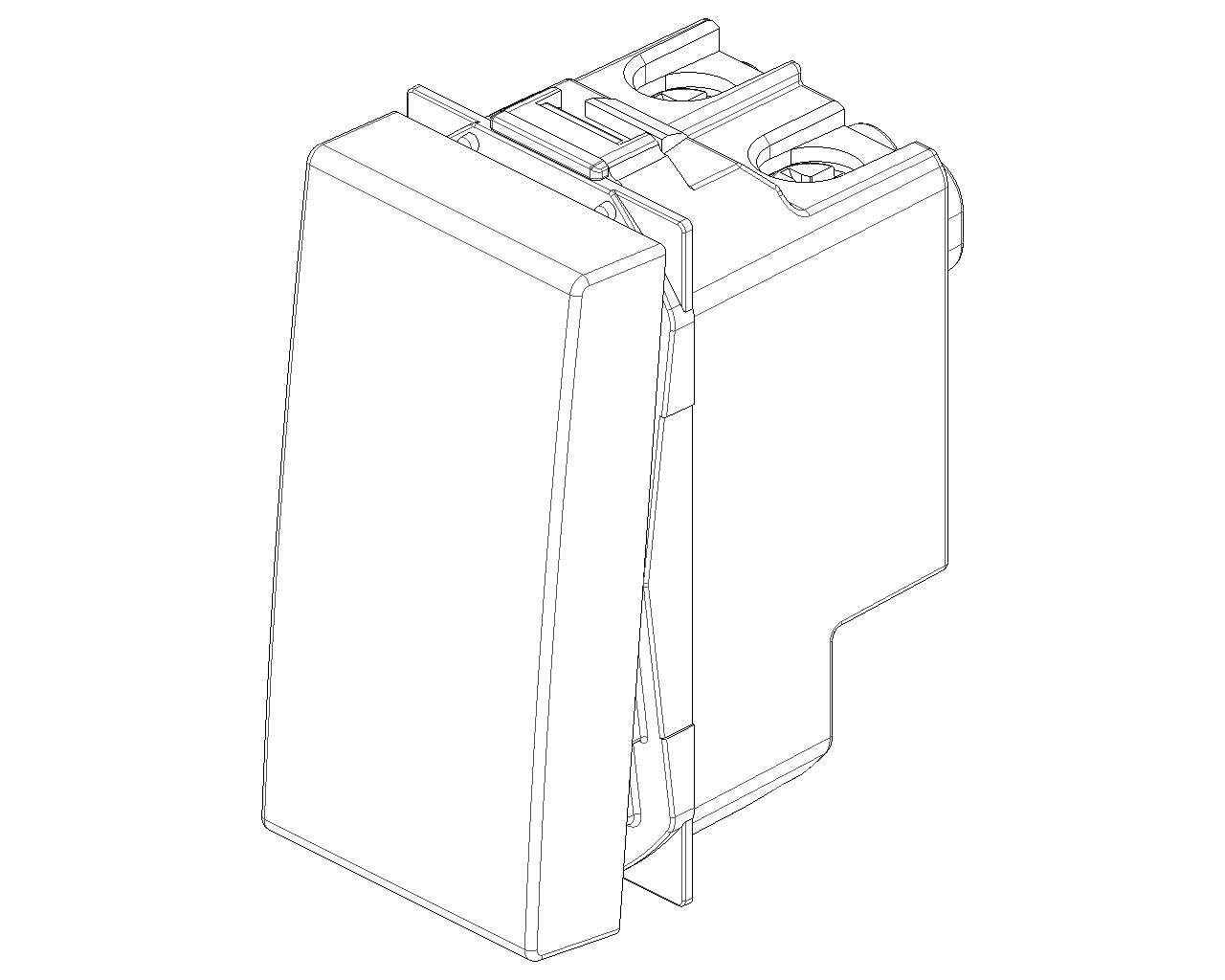

view encumbered art. 09001

PNG DXF

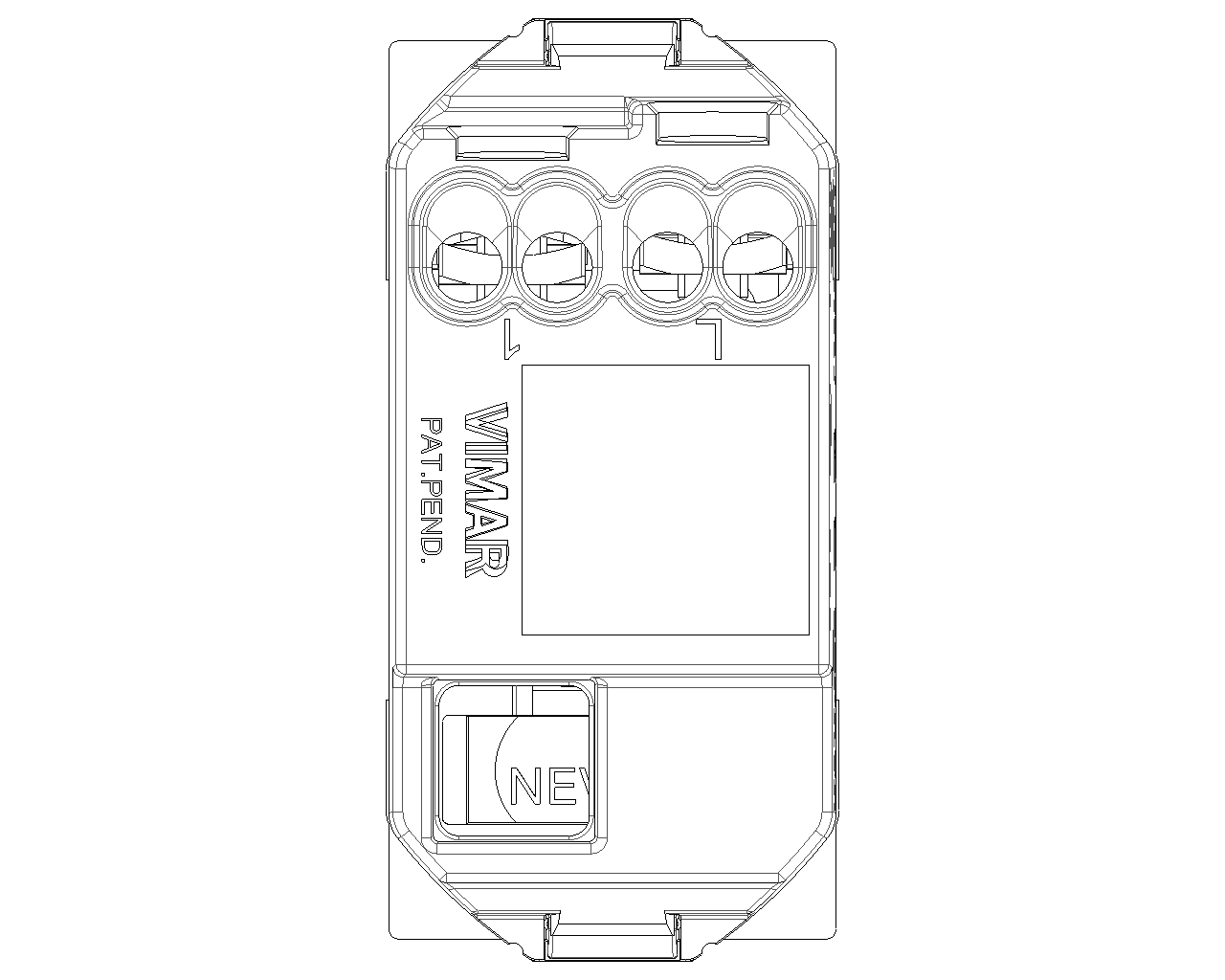

rear view art. 09001

PNG DXF

3D view art. 09001

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Off switch 1-pole

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
47,00 mm

Device depth
35,90 mm

Built-in depth
23,10 mm

00. CE Marking - EU

07. INGCER - Chile

13. SNI-MGI - Indonesia

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352296145

1 NR

4.1x2.8x5.3 [cm]

23.4 [g]

8007352296152

50 NR

21.4x11.6x14.2 [cm]

1,250.8 [g]

8007352296169

500 NR

57.5x22x29.5 [cm]

12,888.67 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
