1P 16AX 2-way switch white - 09005

Pdf

Vimar - 09005 - 1P 16AX 2-way switch white

09005
Wiring devices / Traditional wiring devices / NEVE UP / Devices

1P 16AX 2-way switch white
1P 16 AX 250 V~ 2-way switch, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

09005.2 - 1P 16AX 2-way switch 2M white

09001 - 1P 16AX 1-way switch white

09013 - 1P 16AX reversing switch white

09008 - 1P NO 10A push button white

Drawings

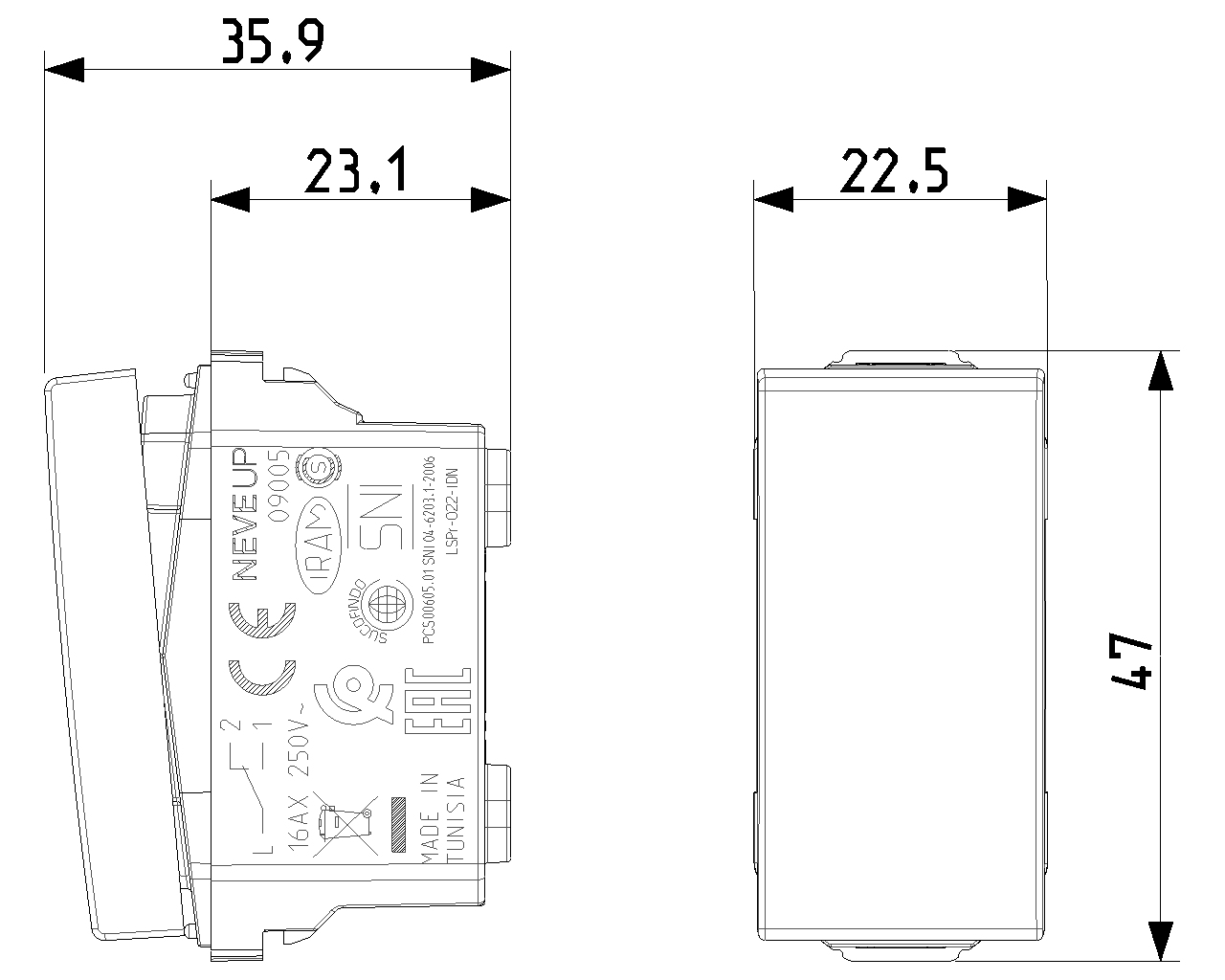

view encumbered art. 09005

PNG DXF

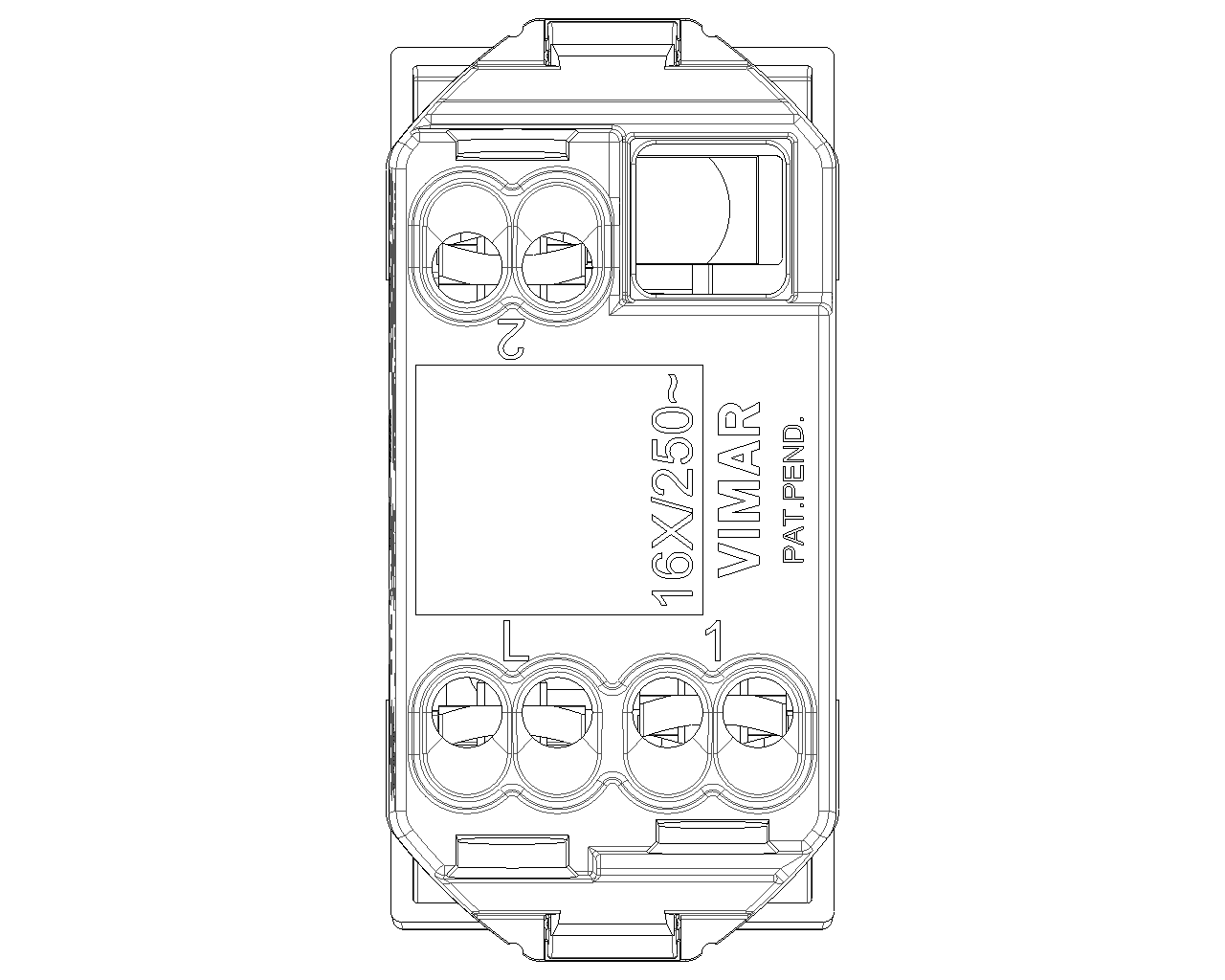

rear view art. 09005

PNG DXF

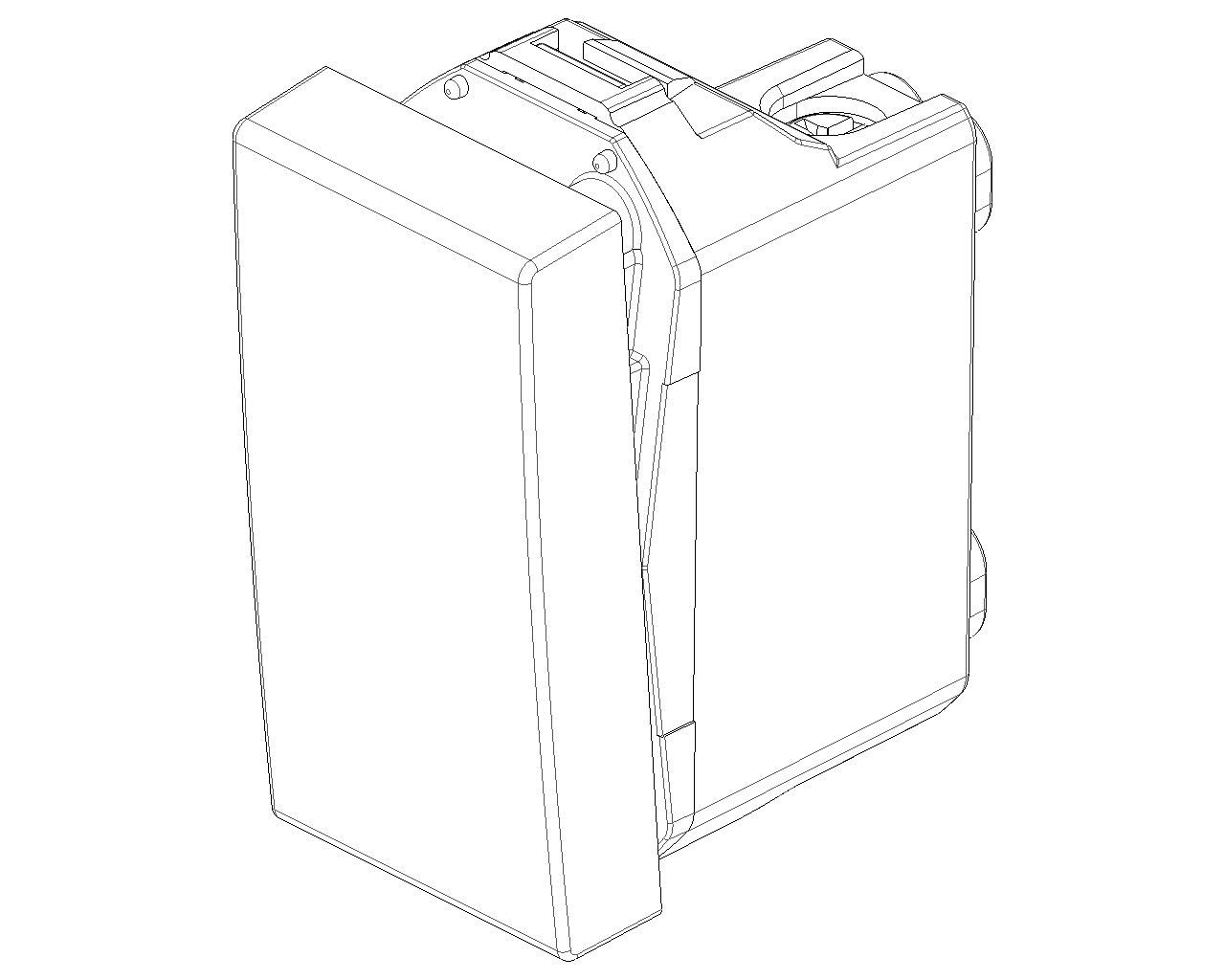

3D view art. 09005

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
47,00 mm

Device depth
35,90 mm

Built-in depth
23,10 mm

00. CE Marking - EU

13. SNI-MGI - Indonesia

15. CCC - China

19. NOM - Mexico

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352296671

1 NR

4.1x2.8x5.3 [cm]

25.8 [g]

8007352296688

50 NR

21.4x11.6x14.2 [cm]

1,378.8 [g]

8007352296695

500 NR

57.5x22x29.5 [cm]

14,264 [g]
