Vimar - 03905 - ZigBee Green Power device
Vimar - 03905 - ZigBee Green Power device

03905
Smart systems&products / Smart switch&sound / Shared components / Devices

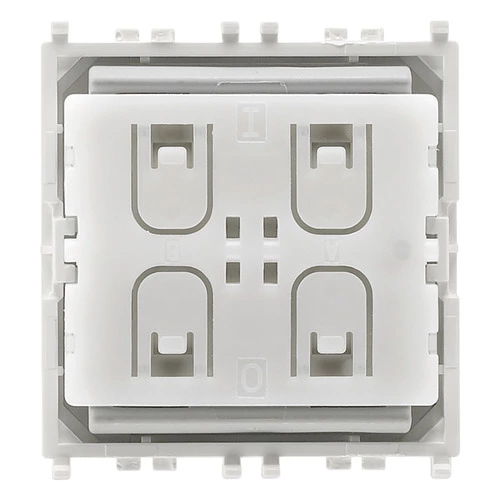

ZigBee Green Power device
Two-rocker-buttons flat device with 2.4 GHz ZigBee Green Power standard radiofrequency transmitter, no battery, powered by built-in electrodynamic generator, to complete with Eikon 20506 or 20506.2, Arké 19506 or 19506.2 or Plana 14506 or 14506.2 buttons - 2 modules

Product Status
3 - Active

You may also be interested in

14506
14506 - Button 1M for RF switch white - 2pieces
14506.SL
14506.SL - Button 1M for RF switch Silver - 2pieces
14506.2
14506.2 - Button 2M for RF switch white
14506.2.SL
14506.2.SL - Button 2M for RF switch Silver
19506
19506 - Button 1M for RF switch grey - 2pieces
19506.B
19506.B - Button 1M for RF switch white - 2pieces
19506.M
19506.M - Button 1M for RF switch Metal - 2pieces
19506.2
19506.2 - Button 2M for RF switch grey
19506.2.B
19506.2.B - Button 2M for RF switch white
19506.2.M
19506.2.M - Button 2M for RF switch Metal
20506
20506 - Button 1M for RF switch grey - 2pieces
20506.B
20506.B - Button 1M for RF switch white - 2pieces
20506.N
20506.N - Button 1M for RF switch Next - 2pieces
20506.2
20506.2 - Button 2M for RF switch grey
20506.2.B
20506.2.B - Button 2M for RF switch white
20506.2.N
20506.2.N - Button 2M for RF switch Next
14507
14507 - Frame 2M for RF device white
19507.CL
19507.CL - Frame RF device Classic plate grey
19507.RN
19507.RN - Frame RF device Round plate grey
19507.CL.B
19507.CL.B - Frame RF device Classic plate white
19507.RN.B
19507.RN.B - Frame RF device Round plate white
21507.1
21507.1 - Frame for RF device grey
21507.1.B
21507.1.B - Frame for RF device white
22507
22507 - Frame for RF device grey
22507.B
22507.B - Frame for RF device white
Class group
Installation bus systems
Class
Light control unit for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Mounting method
Other
Width in number of modular spacings
2
With bus connection
No
Local operation/hand operation
Yes
Number of outputs
0
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

42. Zigbee certified

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352561793
1 NR
5.1x4.3x5.3 [cm]
37.9 [g]
Barcode Qty 5 NR
8007352564527
5 NR
14.4x11.6x6 [cm]
238.2 [g]
Barcode Qty 6 NR
8007352629530
6 NR
14.4x11.6x6 [cm]
285.84 [g]
