Frame 2M for RF device white - 14507

Pdf
Vimar - 14507 - Frame 2M for RF device white
Vimar - 14507 - Frame 2M for RF device white

14507
Smart systems&products / Smart switch&sound / PLANA / Mounting frames

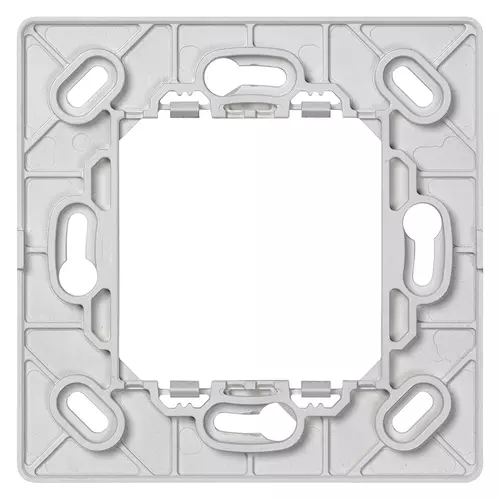

Frame 2M for RF device white
Frame 2M for RF device white

Product Status
3 - Active

Drawings

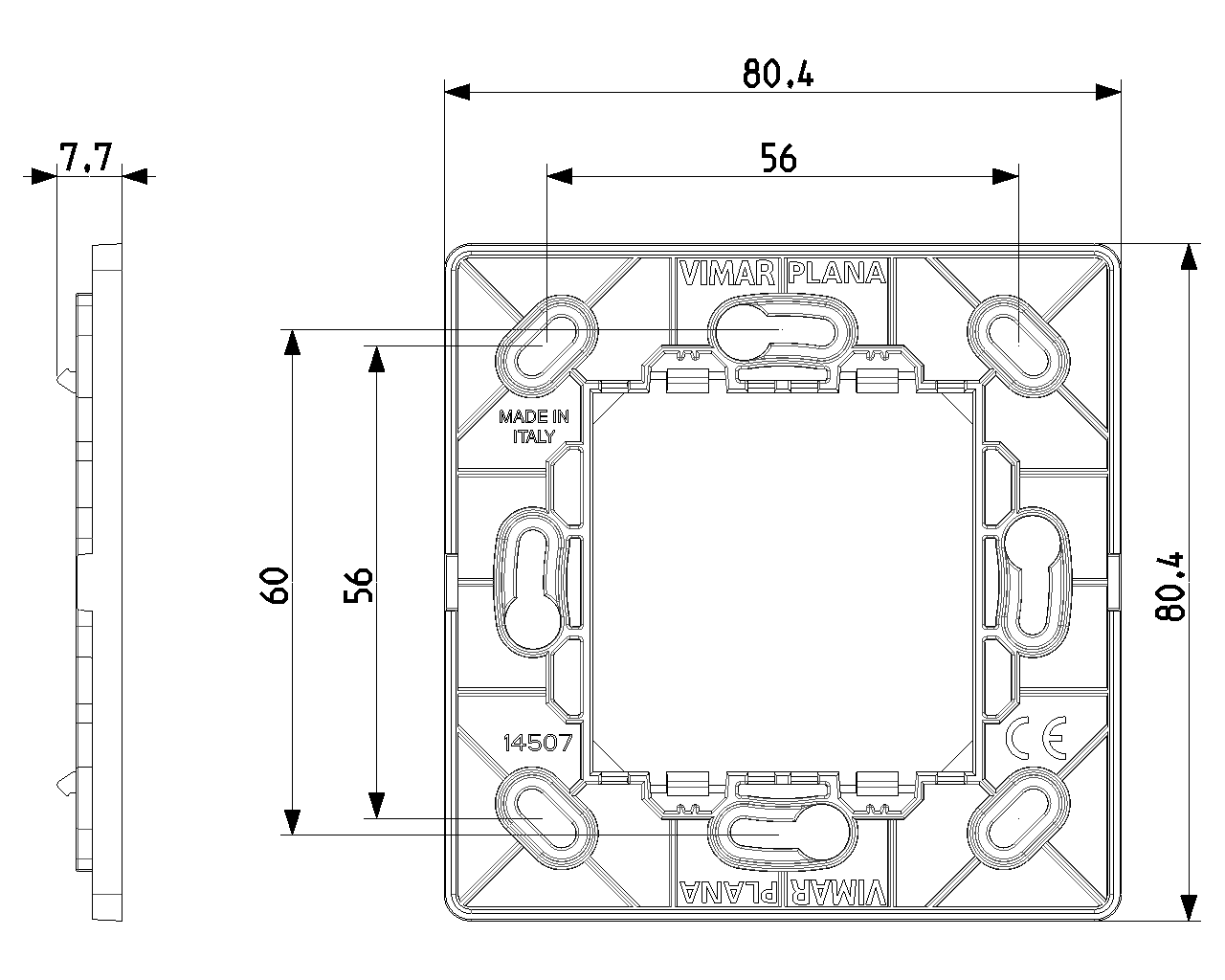

view encumbered art. 14507
PNG DXF
rear view art. 14507
PNG DXF

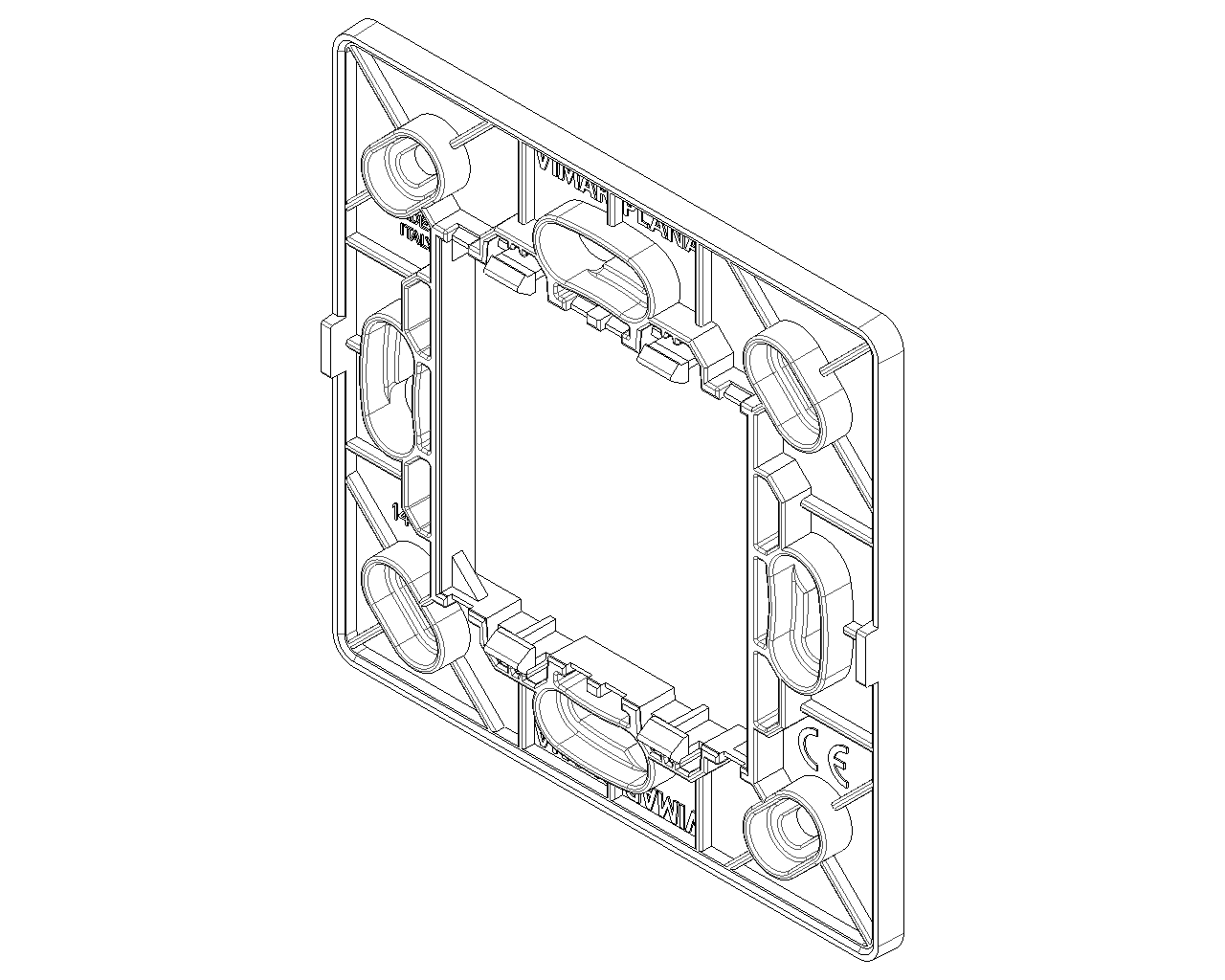

3D view art. 14507
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352620377
1 NR
8.8x8.8x0.5 [cm]
18.2 [g]
Barcode Qty 10 NR
8007352624238
10 NR
19x14.3x9.5 [cm]
253 [g]
