Button 2M for RF switch grey - 19506.2

Pdf
Vimar - 19506.2 - Button 2M for RF switch grey
Vimar - 19506.2 - Button 2M for RF switch grey

19506.2
Smart systems&products / Smart switch&sound / ARKÉ / Buttons

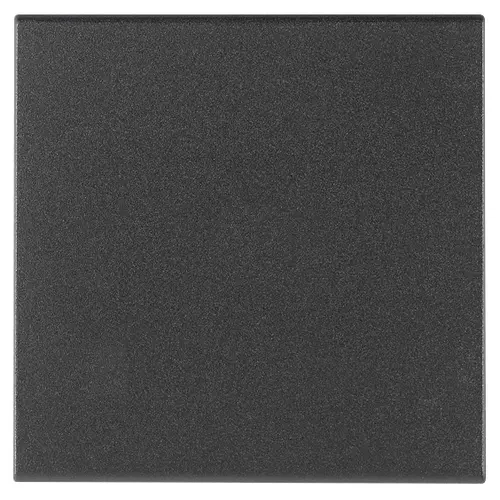

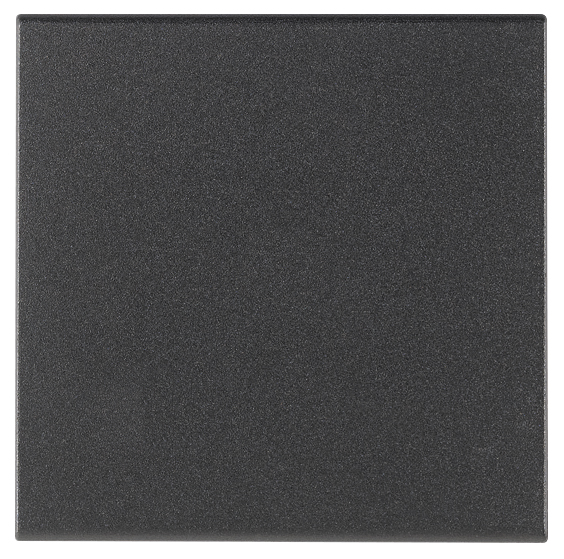

Button 2M for RF switch grey
2-module interchangeable buttons for EnOcean, Bluetooth, ZigBee, Friends of Hue radiofrequency devices, grey

Product Status
3 - Active

Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part button
Imprint/indication
None
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
640,00 mm

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352574038
1 NR
4.4x4.4x0.6 [cm]
4.8 [g]
Barcode Qty 5 NR
8007352566460
5 NR
8.8x4.4x1.2 [cm]
24 [g]
Barcode Qty 25 NR
8007352566477
25 NR
11.7x10.8x7.1 [cm]
167 [g]
