Frame RF device Classic plate white - 19507.CL.B

Pdf
Vimar - 19507.CL.B - Frame RF device Classic plate white
Vimar - 19507.CL.B - Frame RF device Classic plate white

19507.CL.B
Smart systems&products / Smart switch&sound / ARKÉ / Mounting frames

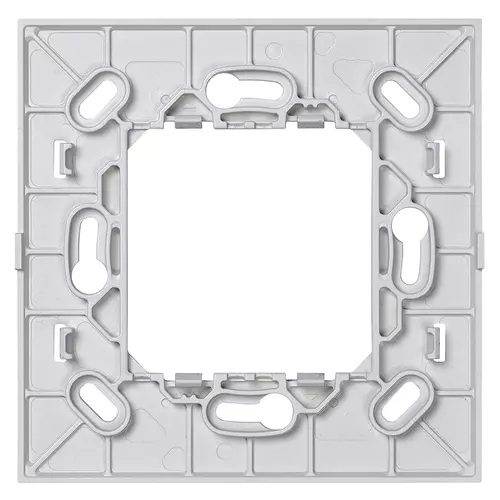

Frame RF device Classic plate white
Frame RF device Classic plate white

Product Status
3 - Active

Drawings

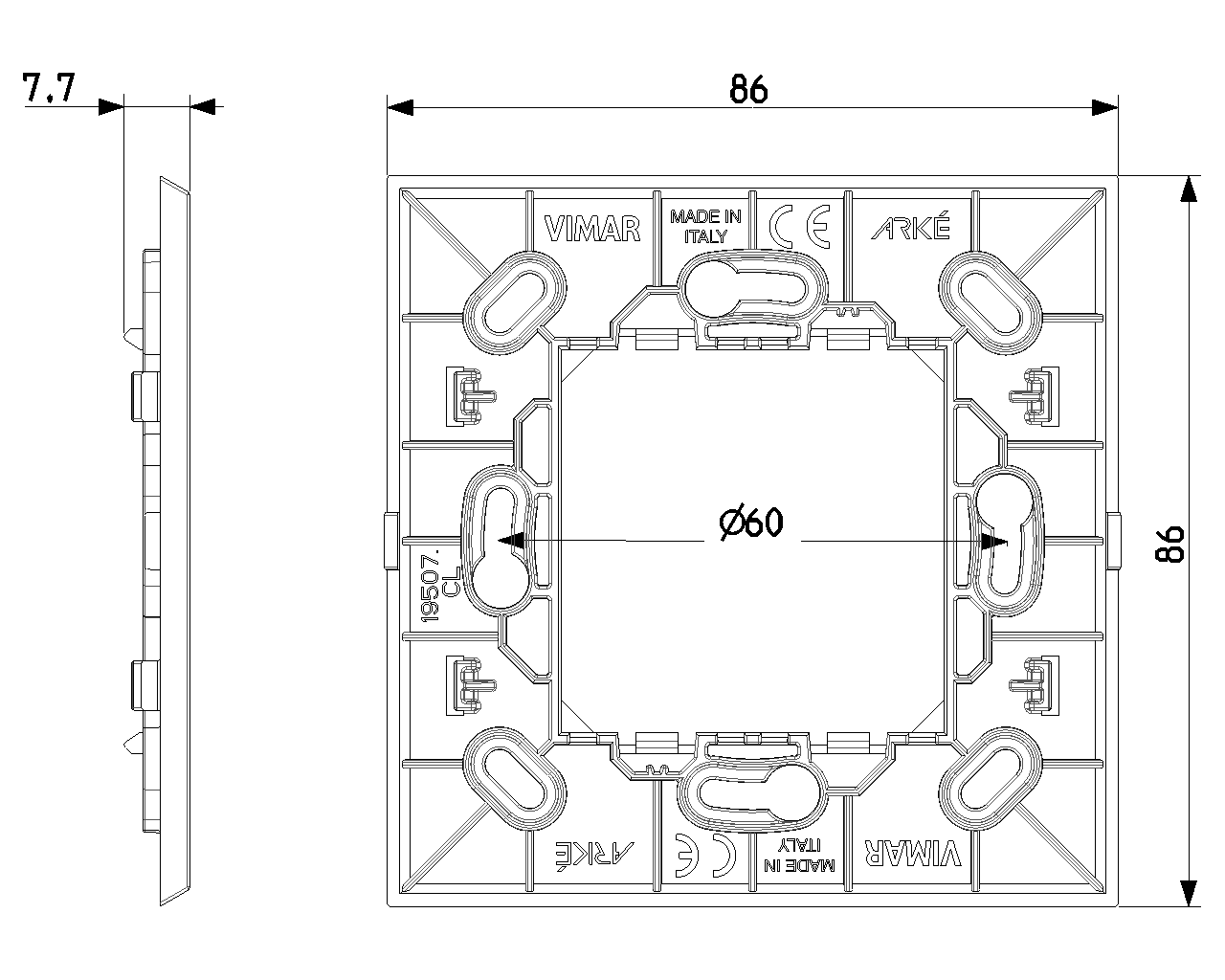

view encumbered art. 19507.CL.B
PNG DXF

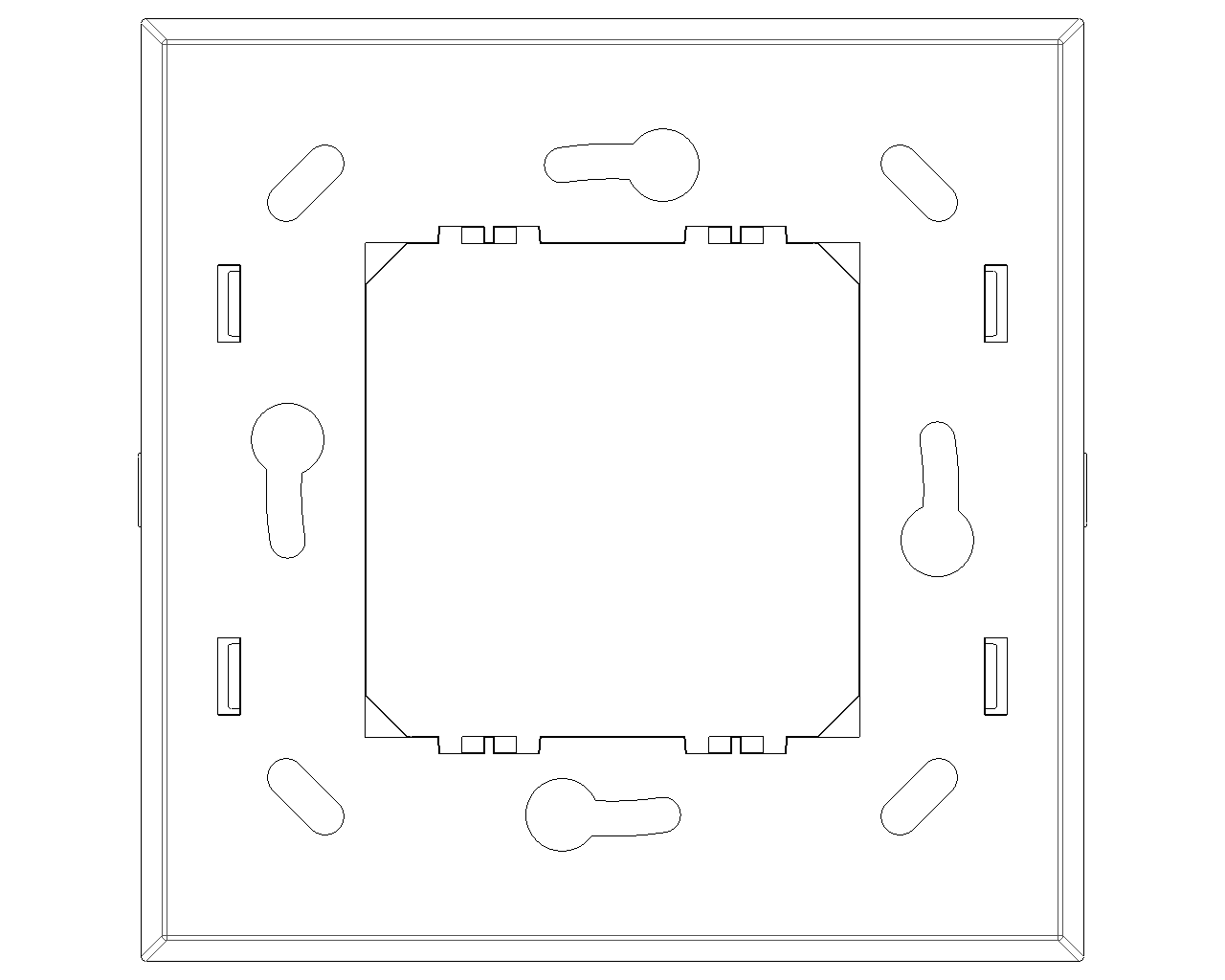

rear view art. 19507.CL.B
PNG DXF

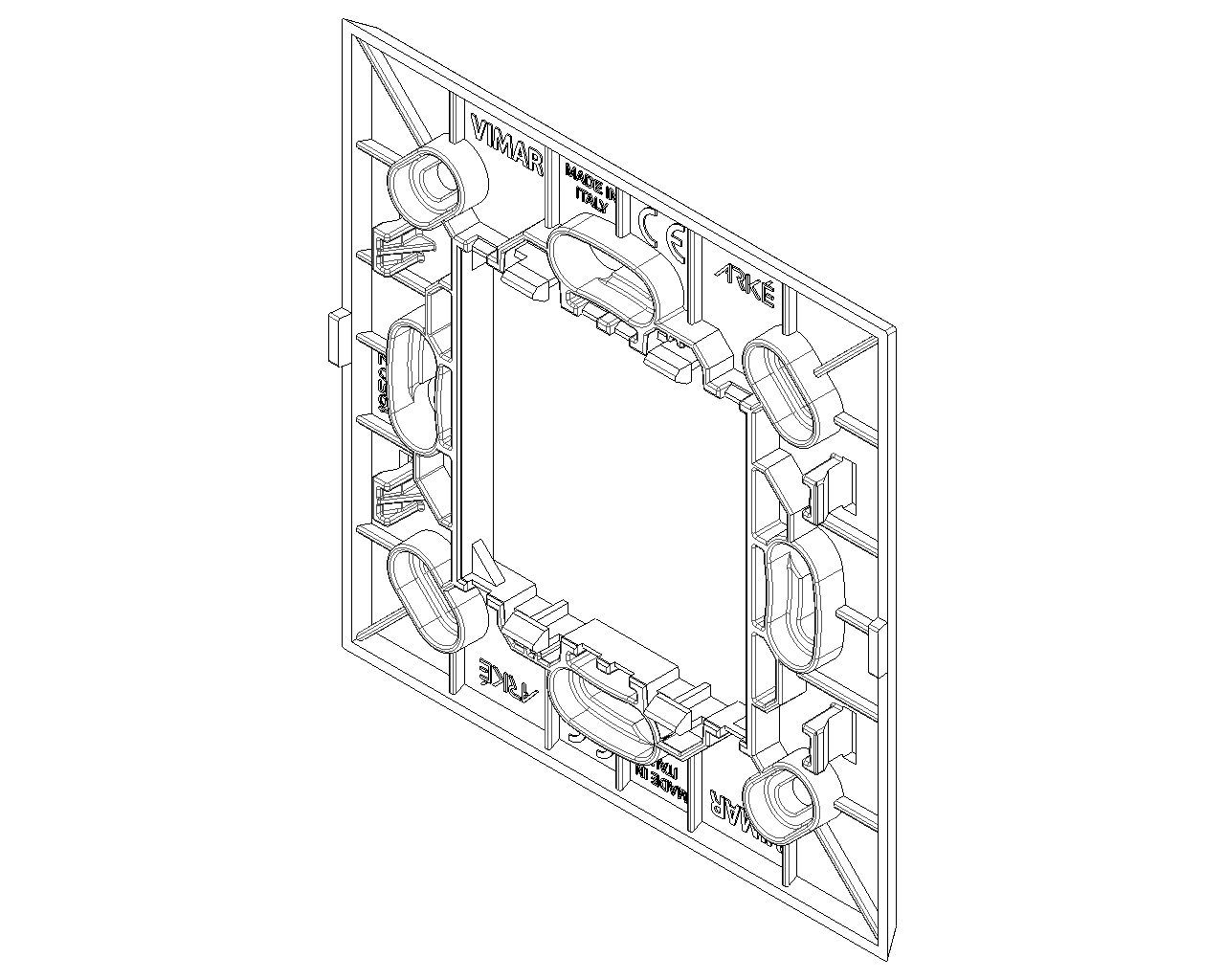

3D view art. 19507.CL.B
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
2
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352620391
1 NR
8.8x8.8x0.5 [cm]
19.6 [g]
Barcode Qty 10 NR
8007352624252
10 NR
18.8x13.8x7 [cm]
267 [g]
