20507
Smart systems&products / Smart switch&sound / Shared components / Mounting frames

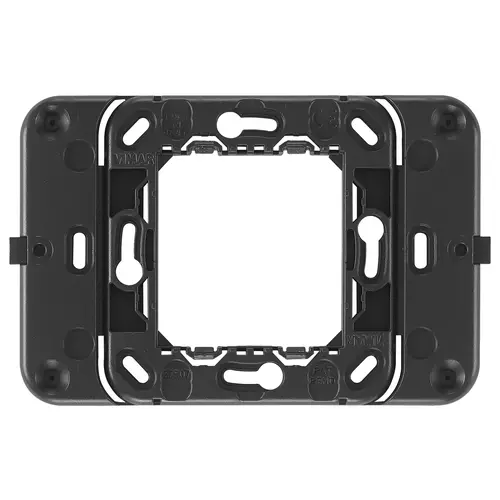

Frame for RF device grey
Frame for surface mounting of EnOcean, Bluetooth, ZigBee radiofrequency devices, to complete with Eikon or Plana 2-central-module or 2-module cover plates, grey

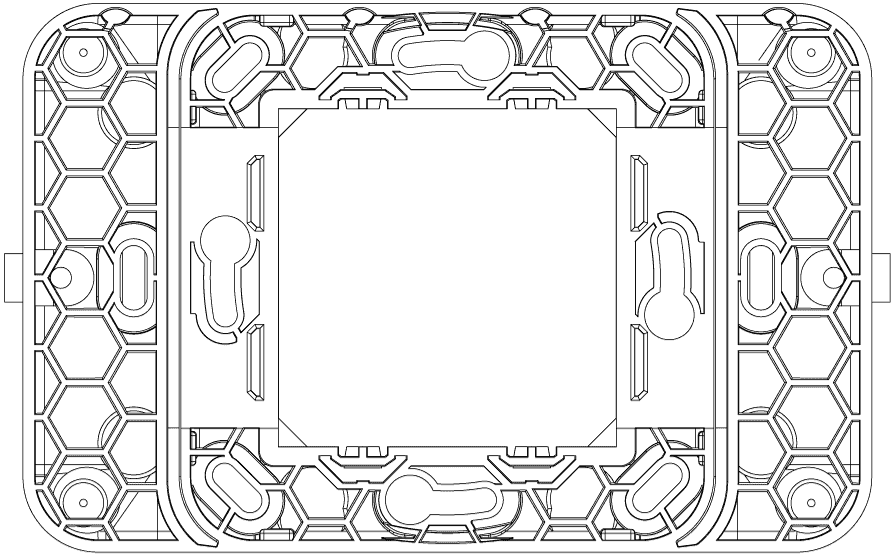

- The honeycomb structure gives structural strength
- The slots in the corners enable fixing to the panel
- The hooking teeth encourage fixing in series for the installation of multiple modules
- Thanks to the central slots, the support can be fixed onto the wall level
产品状态
3 - Active
您可能也感兴趣

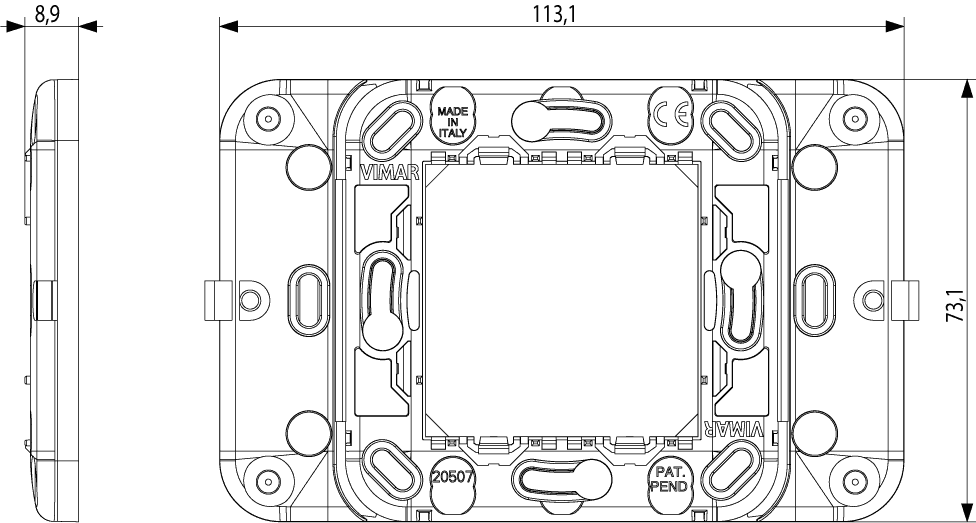

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Holder for modular domestic switching devices
Holder for modular domestic switching devices
Model
Flush-mounted
Flush-mounted
Mounting method
Mounting with screw
Mounting with screw
Mounting method of the module inserts
Front side
Front side
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of modules horizontal (module system)
2
2
Number of modules vertical (module system)
1
1
With built-in installation box
No
No
With screws
No
No
Suitable for mounting in round junction box 60 mm
Yes
Yes
Flush-mounted installation
Yes
Yes
Suitable for subfloor installation duct box
No
No
Suitable for wall duct
No
No
Suitable for mounting on DIN-rail 35 mm
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
00. CE Marking - EU
29. QCERT - Colombia
最小订单数量: 10 NR
条形码
8007352362710
1 NR
11.3x7.3x0.9 [cm]
26.3 [g]
8007352362727
10 NR
13.9x11.9x7.4 [cm]
309.2 [g]
8007352647541
200 NR
38.5x29.5x25 [cm]
6,640 [g]
