Vimar - 03905 - ZigBee Green Power device

03905
Smart systems&products / Smart switch&sound / Shared components / Devices

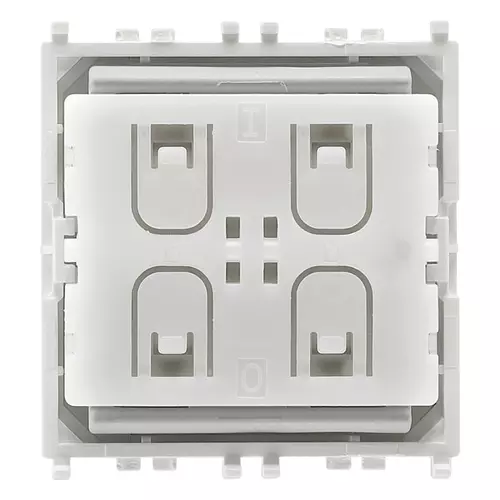

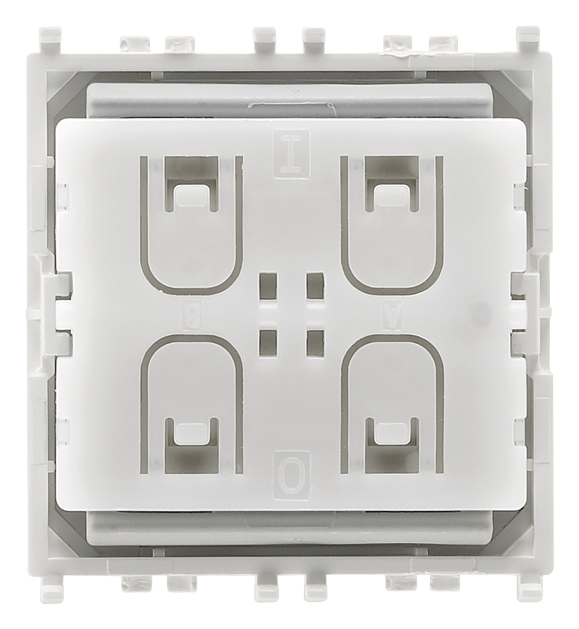

ZigBee Green Power device
Two-rocker-buttons flat device with 2.4 GHz ZigBee Green Power standard radiofrequency transmitter, no battery, powered by built-in electrodynamic generator, to complete with Eikon 20506 or 20506.2, Arké 19506 or 19506.2 or Plana 14506 or 14506.2 buttons - 2 modules

产品状态
3 - Active

您可能也感兴趣

14506 - Button 1M for RF switch white - 2pieces

14506.SL - Button 1M for RF switch Silver - 2pieces

14506.2 - Button 2M for RF switch white

14506.2.SL - Button 2M for RF switch Silver

19506 - Button 1M for RF switch grey - 2pieces

19506.B - Button 1M for RF switch white - 2pieces

19506.M - Button 1M for RF switch Metal - 2pieces

19506.2 - Button 2M for RF switch grey

19506.2.B - Button 2M for RF switch white

19506.2.M - Button 2M for RF switch Metal

20506 - Button 1M for RF switch grey - 2pieces

20506.B - Button 1M for RF switch white - 2pieces

20506.N - Button 1M for RF switch Next - 2pieces

20506.2 - Button 2M for RF switch grey

20506.2.B - Button 2M for RF switch white

20506.2.N - Button 2M for RF switch Next

14507 - Frame 2M for RF device white

19507.CL - Frame RF device Classic plate grey

19507.RN - Frame RF device Round plate grey

19507.CL.B - Frame RF device Classic plate white

19507.RN.B - Frame RF device Round plate white

21507.1 - Frame for RF device grey

21507.1.B - Frame for RF device white

22507 - Frame for RF device grey

22507.B - Frame for RF device white

单, 说明书, 文档

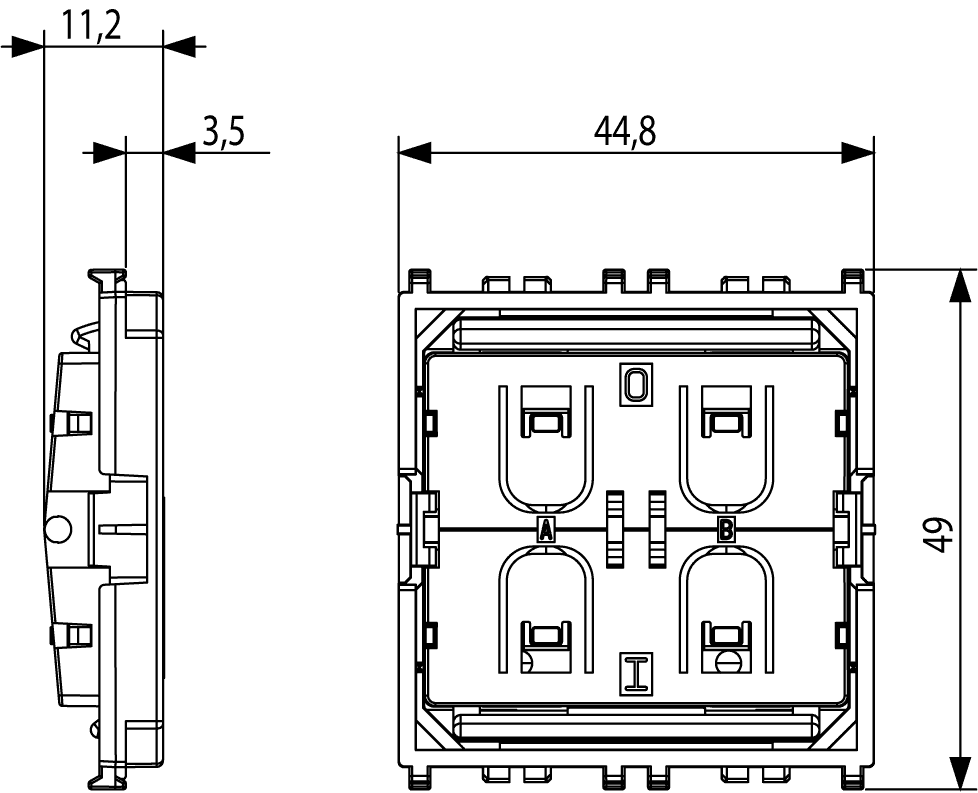

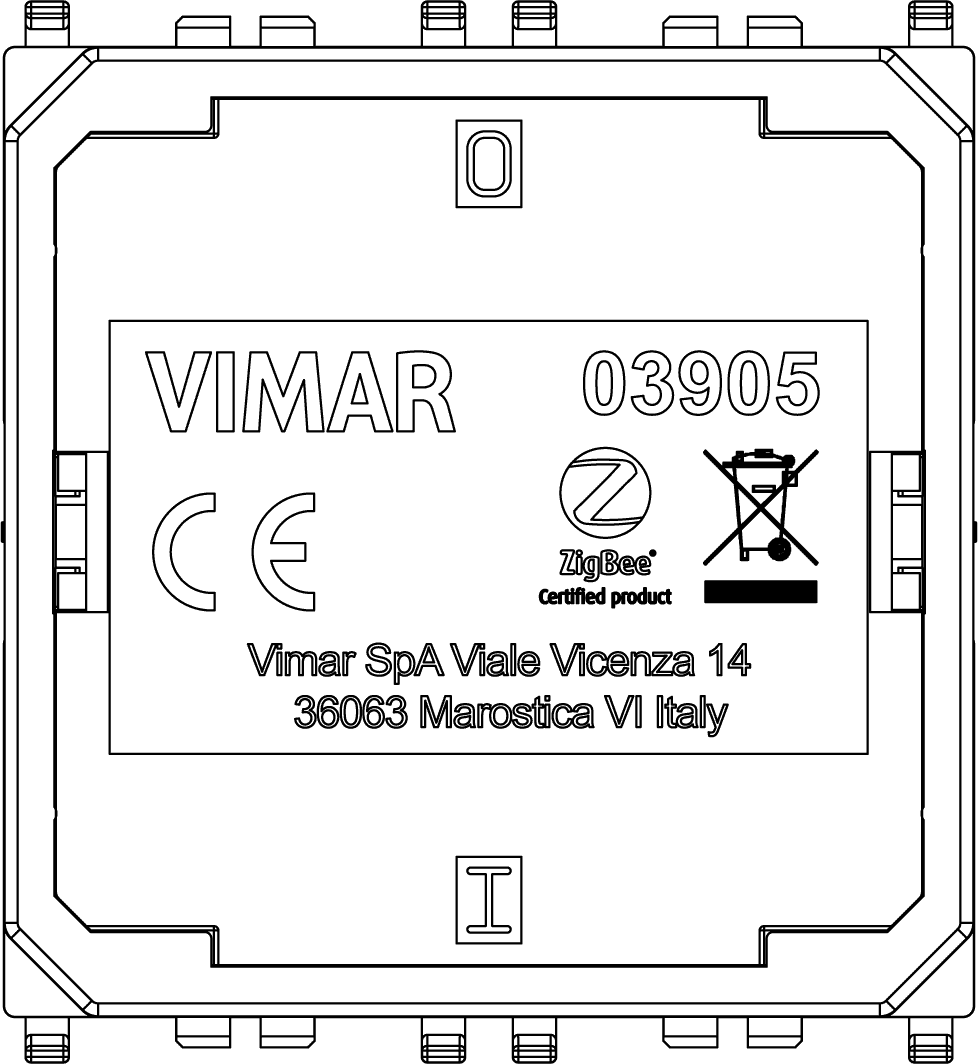

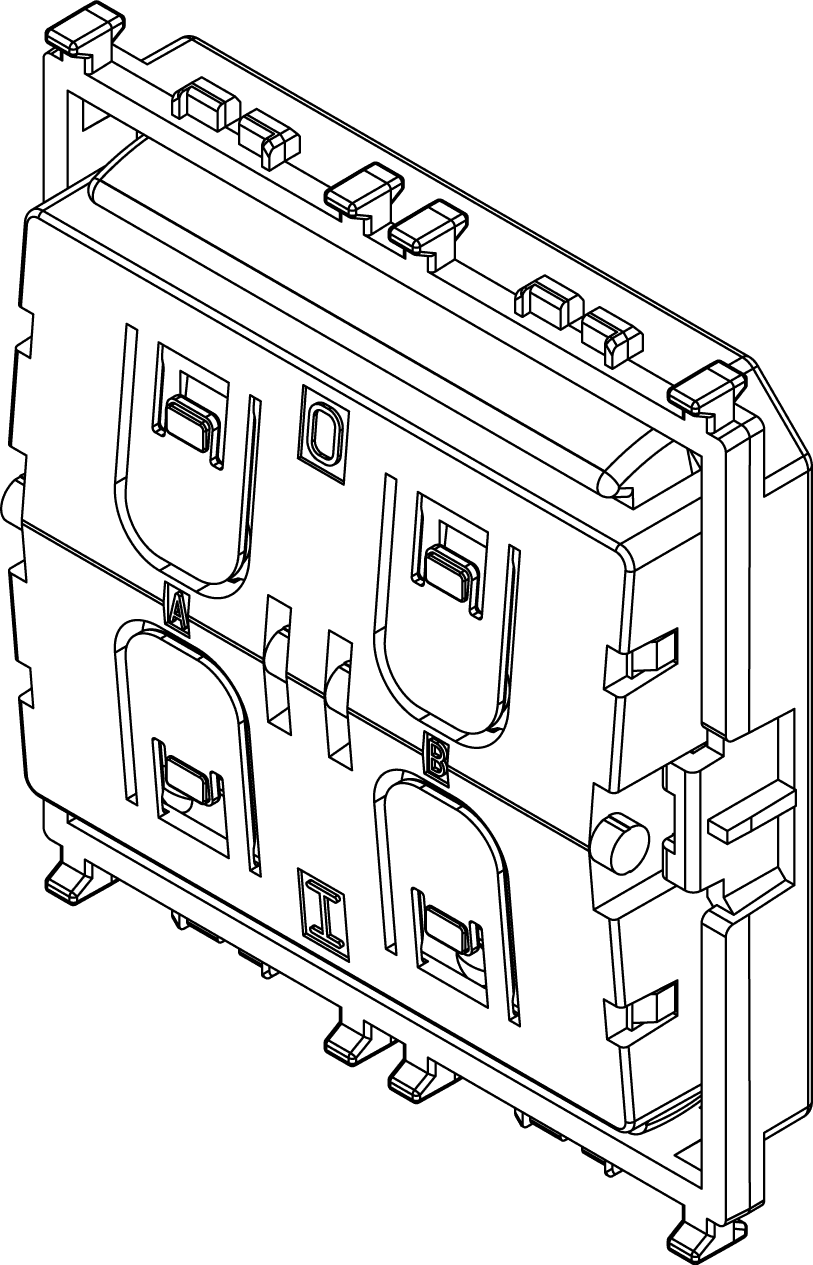

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Light control unit for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
Yes

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Radio frequent bidirectional
No

Mounting method
Other

Width in number of modular spacings
2

With bus connection
No

Local operation/hand operation
Yes

Number of outputs
0

Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

42. Zigbee certified

46. UK PSTI compliance

99. WEEE Directive

最小订单数量: 5 NR

条形码

8007352561793

1 NR

5.1x4.3x5.3 [cm]

37.9 [g]

8007352564527

5 NR

14.4x11.6x6 [cm]

238.2 [g]

8007352629530

6 NR

14.4x11.6x6 [cm]

285.84 [g]
