03925
Smart systems&products / Smart switch&sound / Surface mounting components / Non-modular components

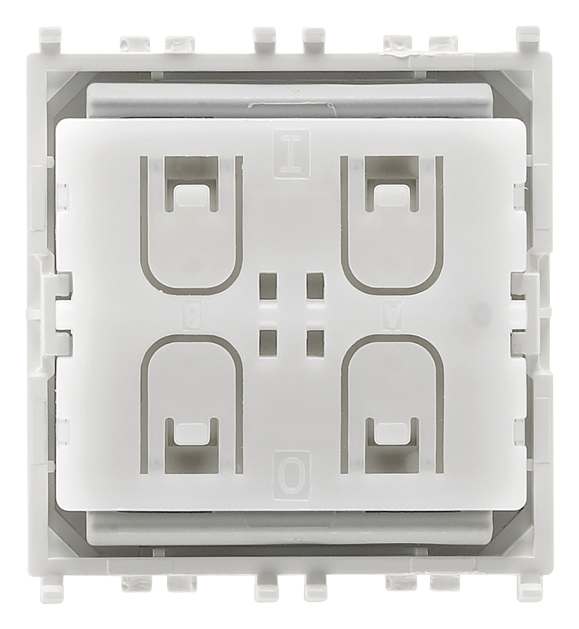

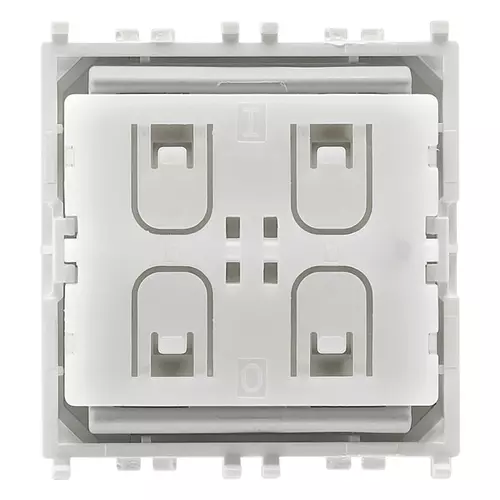

Bluetooth Low Energy RF device
4-button flat device with 2.4 GHz Bluetooth Low Energy standard radiofrequency transmitter, energy harvesting supply powered by built-in electrodynamic generator, to complete with Eikon 20506 or 20506.2, Arké 19506 or 19506.2<(>,<)> Idea 16526 or 16526.2 or Plana 14506 or 14506.2 buttons - 2 modules
产品状态
3 - Active
您可能也感兴趣
单, 说明书, 文档
- Installation diagrams (1068 kb)
- Multilanguage instructions sheet (1253 kb)
- Manuale installatore (550 kb)
- Installer manual (649 kb)
- Manuale app View Wireless (16695 kb)
- Manuel appli View Wireless (36896 kb)
- Manual app View Wireless (36835 kb)
- Manual View Wireless app (36774 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (37151 kb)
- Installationsanleitung View Wireless (36685 kb)
Class group
Installation bus systems
Installation bus systems
Class
Light control unit for bus system
Light control unit for bus system
Bus system KNX
No
No
Bus system KNX-RF (Radio Frequent)
No
No
Bus system radio frequent
Yes
Yes
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
None
None
Radio frequent bidirectional
No
No
Mounting method
Surface mounted
Surface mounted
Width in number of modular spacings
2
2
With bus connection
No
No
Substation input
No
No
Local operation/hand operation
No
No
With LED indication
No
No
Interface 1-10 V
No
No
Number of inputs for light sensor
0
0
Degree of protection (IP)
IP40
IP40
29. QCERT - Colombia
32. FCC - USA
33. ISED - Canada
37. Marking - Morocco
40. Bluetooth technology
最小订单数量: 1 NR
条形码
8007352596054
1 NR
5.1x4.3x5.3 [cm]
41.5 [g]
8007352596061
6 NR
14.4x11.6x6 [cm]
297.4 [g]
| 问题： | Can the EnOcean control be integrated with gateway? |
|---|---|
| 回答： | Yes. Battery-free radio controls can be added and paired with the devices configured in the system, which will allow them to be managed. |
| 问题： | How is it configured? |
| 回答： | The device is configured using the VIEW Wireless App, associating the radio device as an accessory to a connected control already installed in the electrical system and configured using the same App. |
