Rondò plate 1-2M Silk graphite - 17098.D.15

Pdf

17098.D.15
Wiring devices / Traditional wiring devices / IDEA / Cover plates

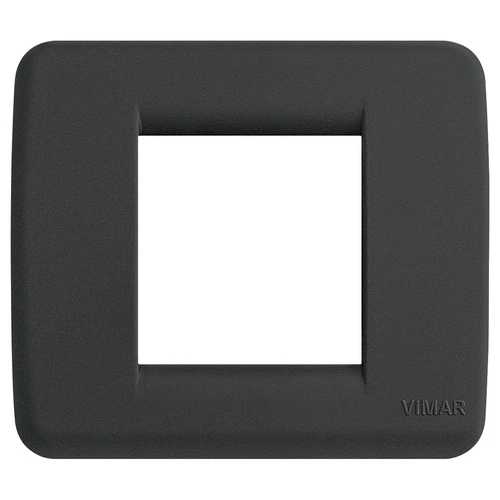

Rondò plate 1-2M Silk graphite
1-module or 2-reduced-module Rondò cover plate, Silk, graphite

产品状态
2 - Will be discontinued

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
91,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
91,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352098923
1 NR
9.1x8x0.9 [cm]
14.27 [g]
Barcode Qty 10 NR
8007352098930
10 NR
11x9.8x9.1 [cm]
183.47 [g]
