14507
Smart systems&products / Smart switch&sound / PLANA / Mounting frames
Frame 2M for RF device white
Frame 2M for RF device white
产品状态
3 - Active

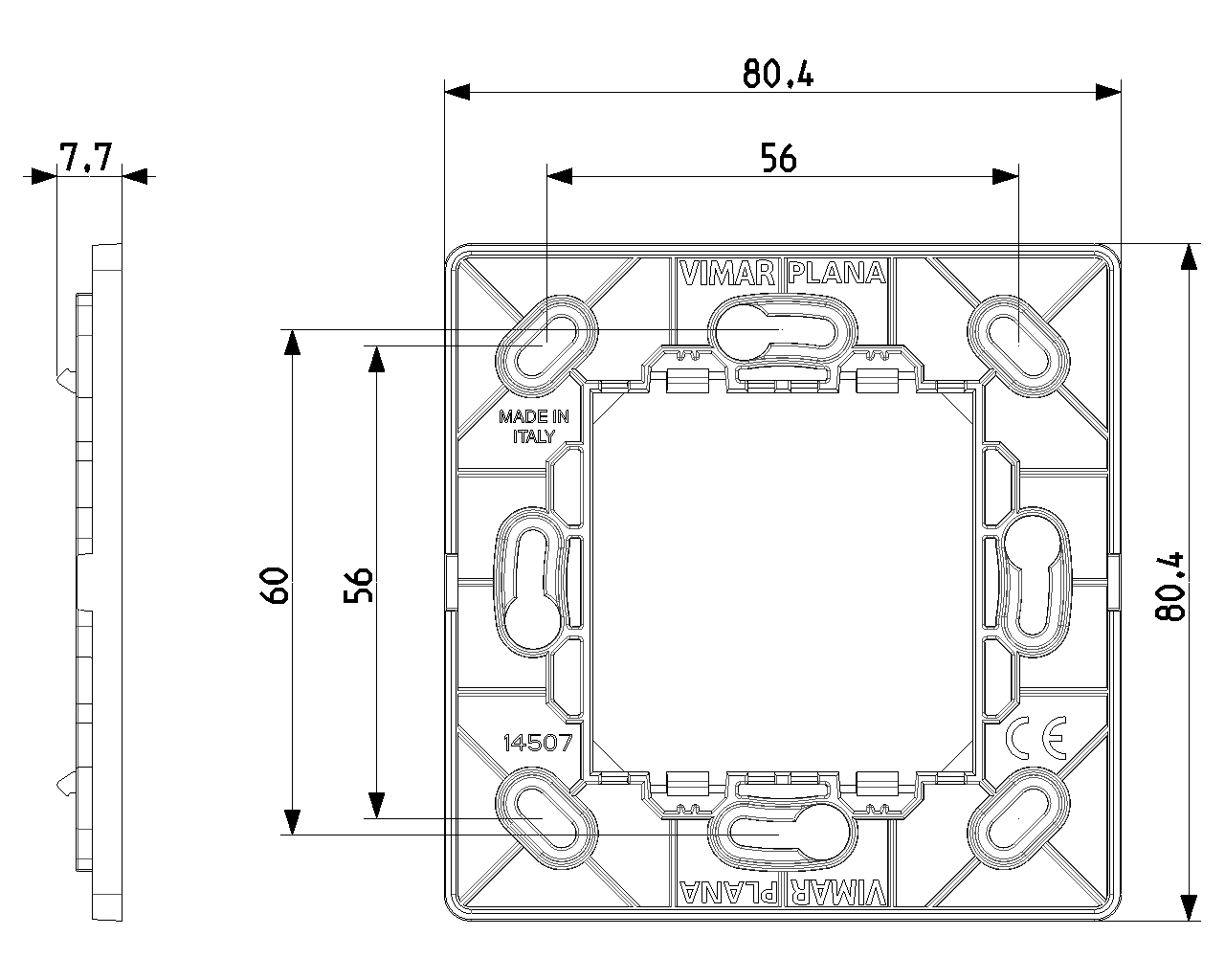

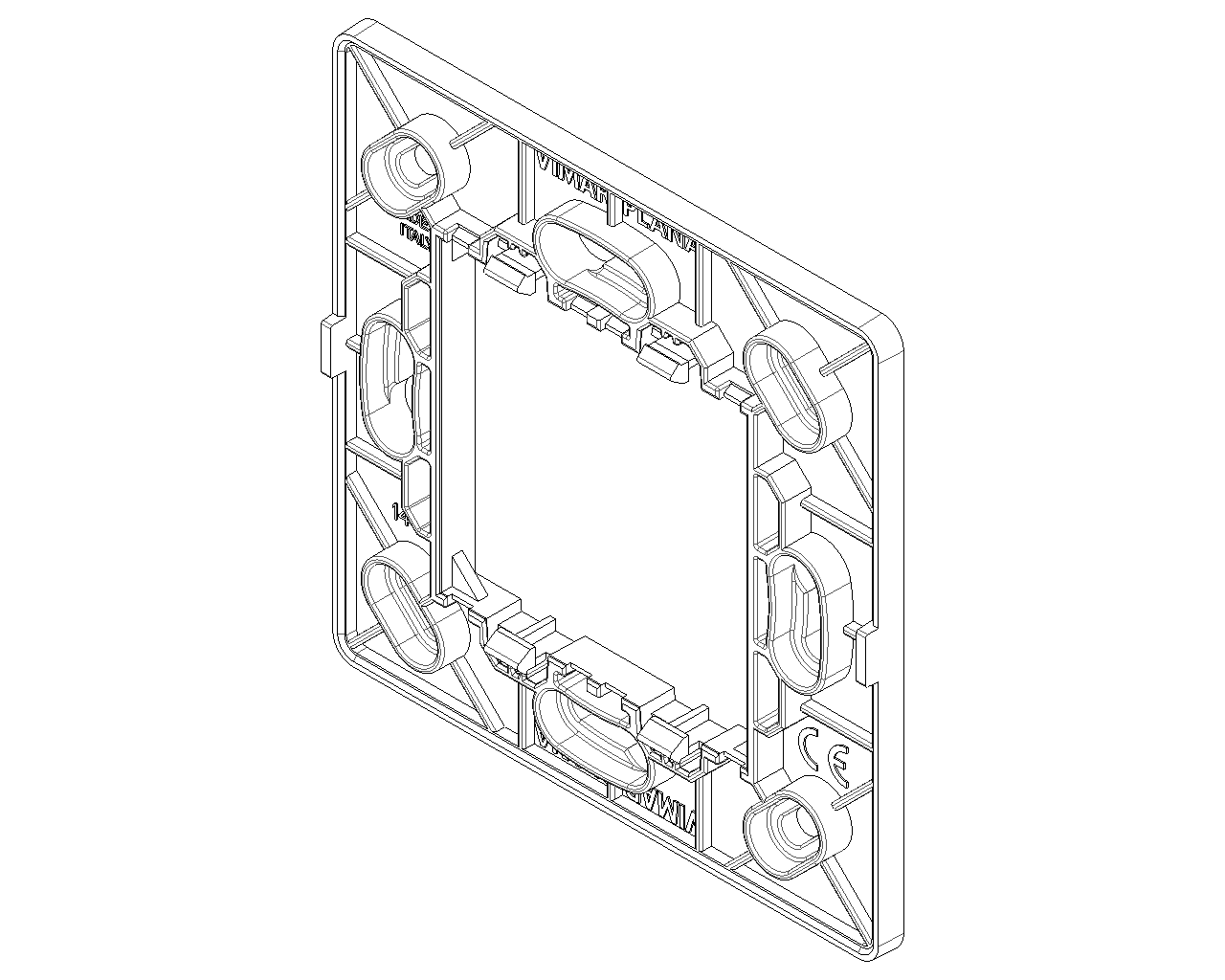

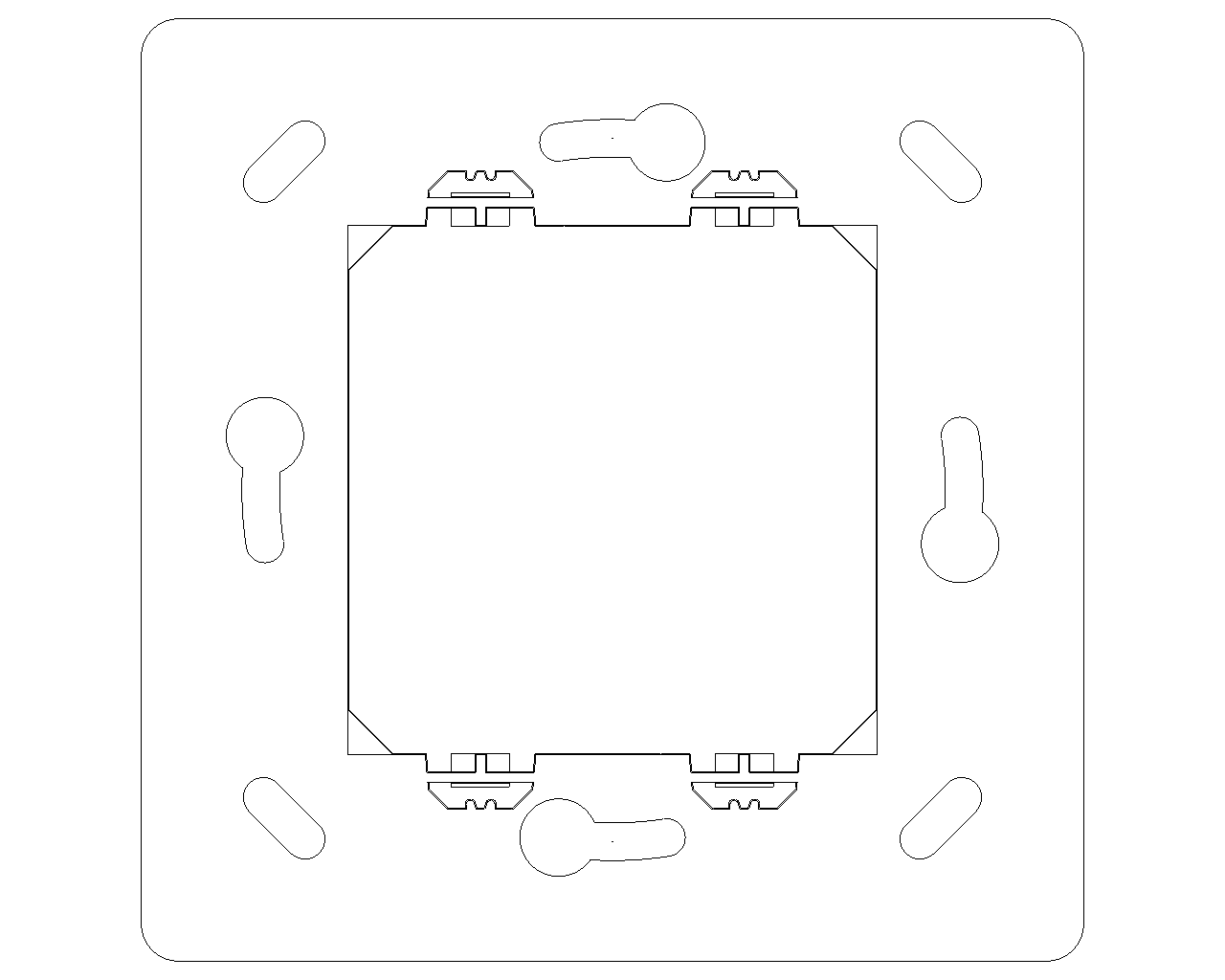

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Holder for modular domestic switching devices
Holder for modular domestic switching devices
Model
Flush-mounted
Flush-mounted
Mounting method
Mounting with screw
Mounting with screw
Mounting method of the module inserts
Front side
Front side
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of modules horizontal (module system)
2
2
Number of modules vertical (module system)
1
1
With built-in installation box
No
No
With screws
No
No
Suitable for mounting in round junction box 60 mm
Yes
Yes
Flush-mounted installation
Yes
Yes
Suitable for subfloor installation duct box
No
No
Suitable for wall duct
No
No
Suitable for mounting on DIN-rail 35 mm
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
29. QCERT - Colombia
最小订单数量: 10 NR
条形码
8007352620377
1 NR
8.8x8.8x0.5 [cm]
18.2 [g]
8007352624238
10 NR
19x14.3x9.5 [cm]
253 [g]
