By-alarm Plus DT flush detect.grey - 19479

Pdf

19479
Safety / By-alarm Plus / ARKÉ / Devices

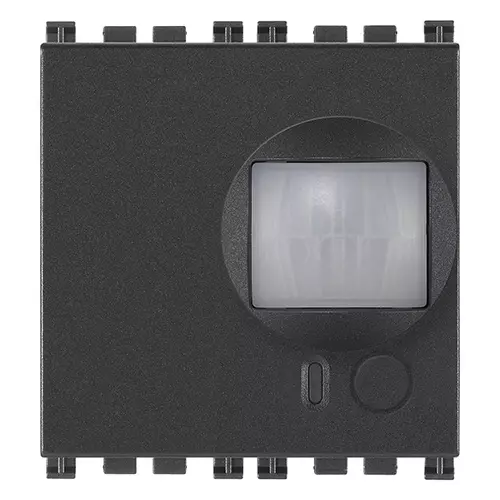

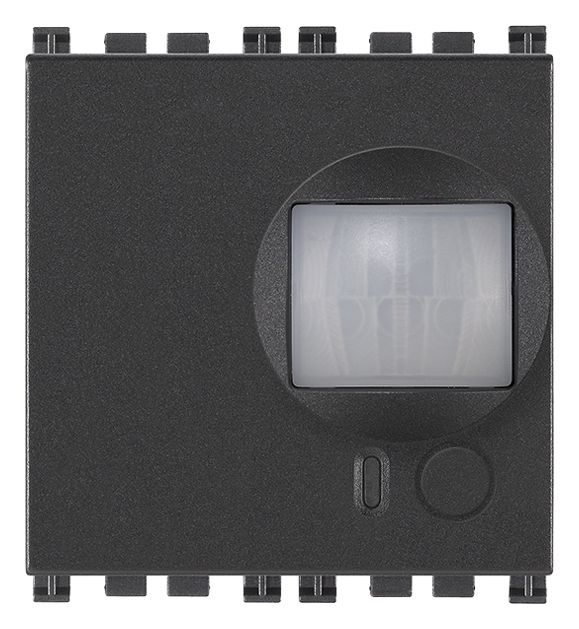

By-alarm Plus DT flush detect.grey
By-alarm Plus passive infrared and microwave dual technology detector, anti-masking function, SET input to disable microwaves when system not on, indoor installation, grey - 2 modules

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Movement detector for danger detection system
Type of messaging
Infrared/microwave (Dual)
Mounting method
Built-in
Operating current
28,00 mA
Operating voltage
12,00 - 12,01 V
Height
49,00 mm
Width
44,80 mm
Depth
43,50 mm
Characteristic
Other
Cover monitoring
Yes
Radio system
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352548749
1 NR
11.2x9.6x9.8 [cm]
114.2 [g]
Barcode Qty 18 NR
8007352648258
18 NR
37.5x30x21 [cm]
2,492 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
