Classica plate 3M techn. graphite grey - 16743.15

Pdf
Vimar - 16743.15 - Classica plate 3M techn. graphite grey
Vimar - 16743.15 - Classica plate 3M techn. graphite grey

16743.15
Wiring devices / Traditional wiring devices / IDEA / Cover plates

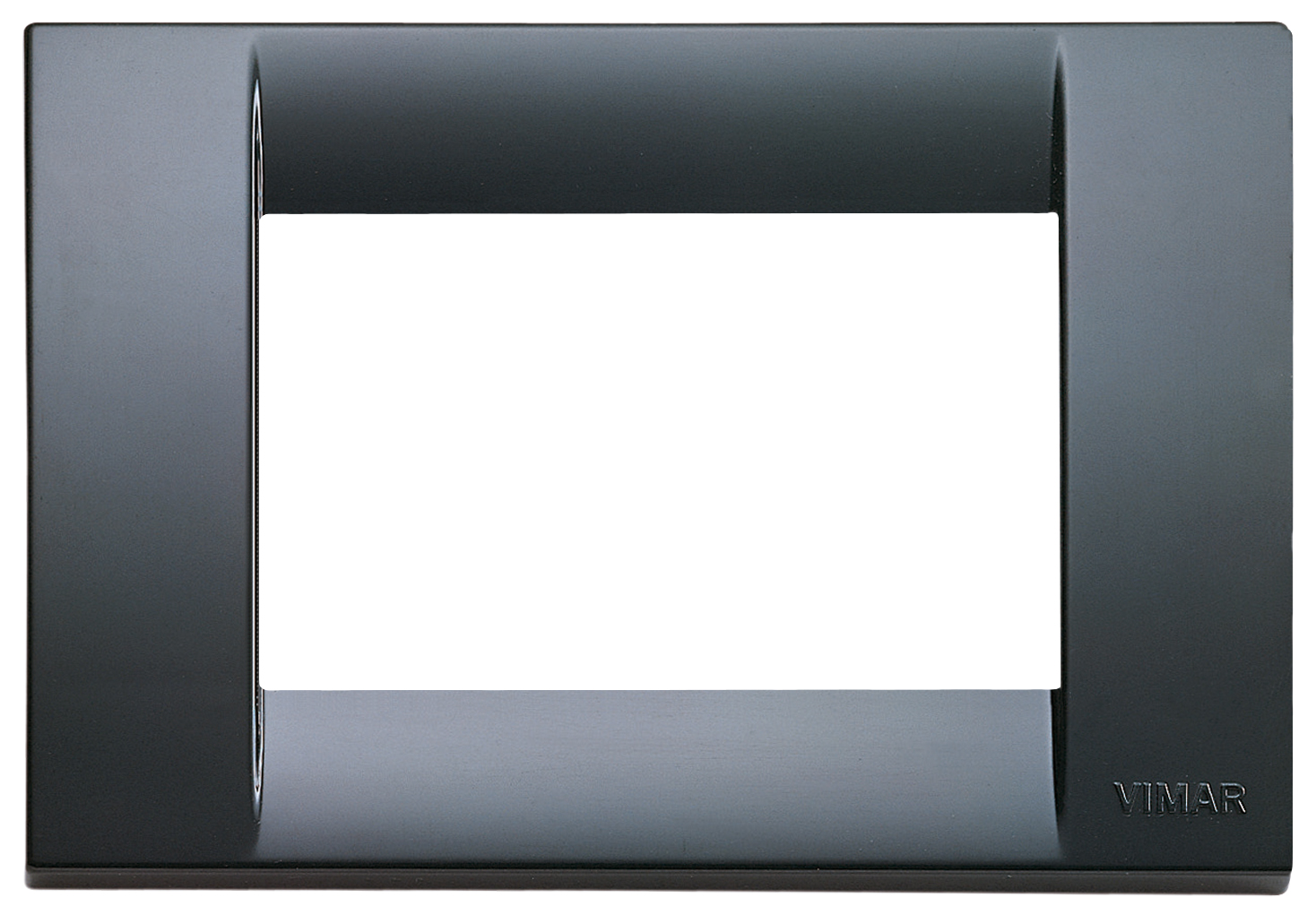

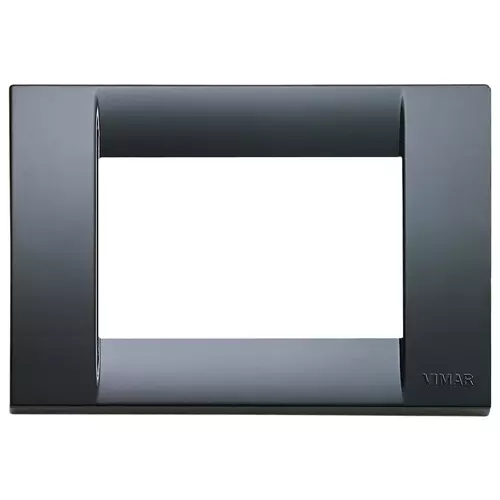

Classica plate 3M techn. graphite grey
3-module Classica cover plate, technopolymer, graphite grey

Product Status
3 - Active

You may also be interested in

16713
16713 - Frame 3M +screws
16723
16723 - Frame 3M Arké idea+screws grey
16813.Q
16813.Q - IP55 frame 3M grey
16813.Q.B
16813.Q.B - IP55 frame 3M white
16722.L
16722.L - Frame 2M smooth front grey
16722.L.B
16722.L.B - Frame 2M smooth front white

Drawings

view encumbered art. 16743.15
PNG DXF
rear view art. 16743.15
PNG DXF
3D view art. 16743.15
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Anthracite
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
82,00 mm
Depth
8,90 mm
Built-in width
120,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352066120
1 NR
12x8x0.9 [cm]
18 [g]
Barcode Qty 10 NR
8007352066168
10 NR
14.1x9.8x9.9 [cm]
222 [g]
Barcode Qty 480 NR
8007352263352
480 NR
59x39x31.5 [cm]
11,456 [g]
Barcode Qty 5,760 NR
8007352587663
5,760 NR
120x80x105 [cm]
102,731 [g]
