Classica plate 3M metal ivory - 16733.10

Pdf

16733.10
Wiring devices / Traditional wiring devices / IDEA / Cover plates

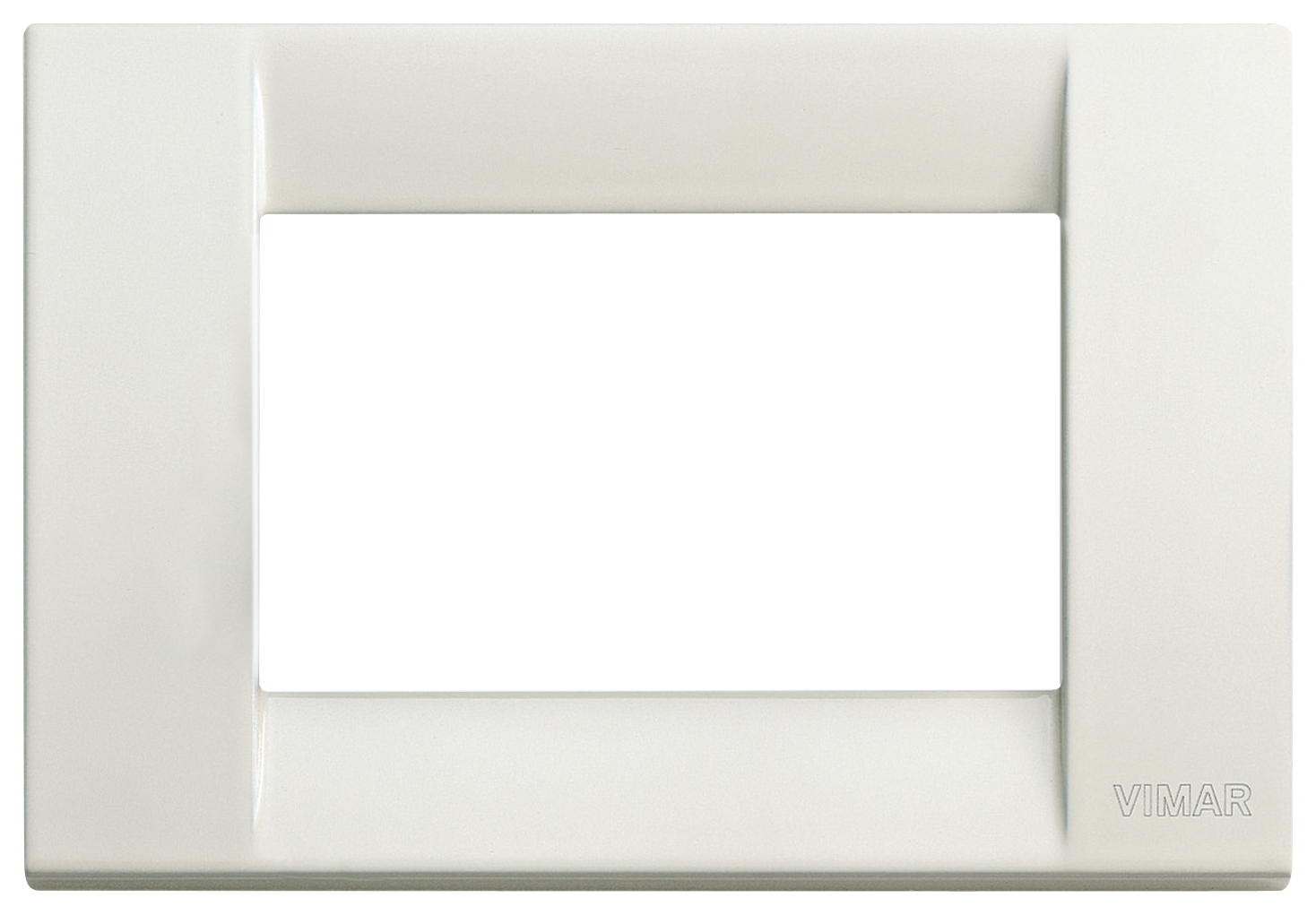

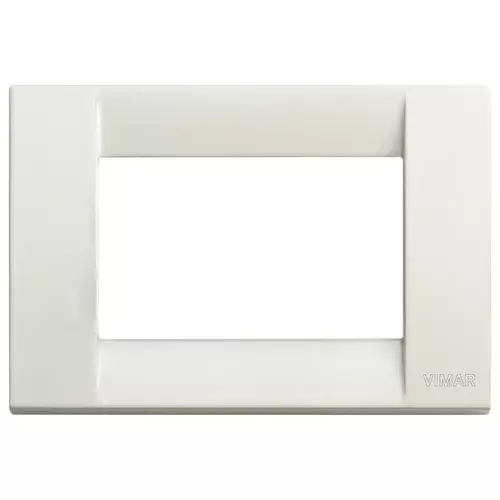

Classica plate 3M metal ivory
3-module Classica cover plate, die-cast metal, ivory

Product Status
2 - Will be discontinued

You may also be interested in

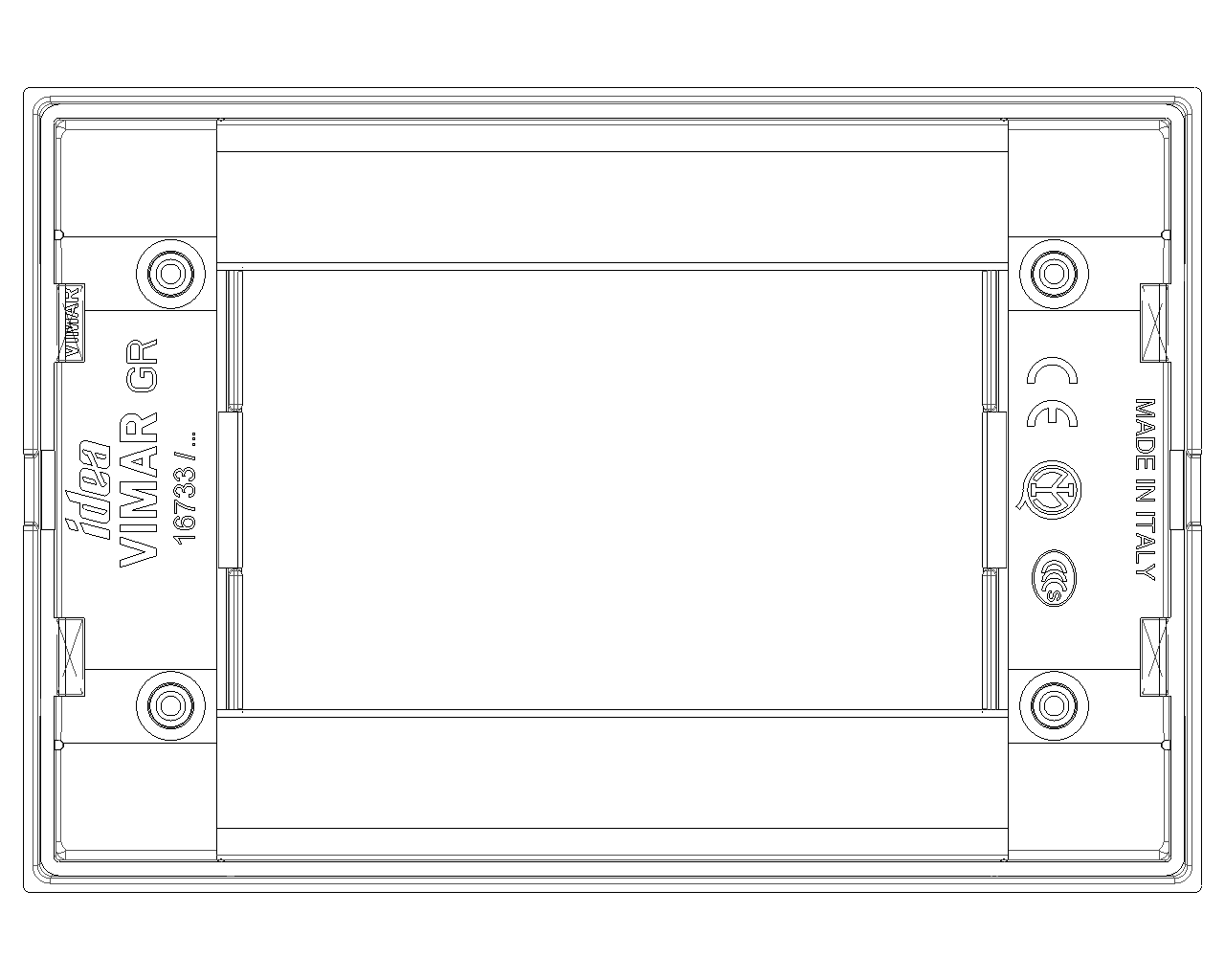

Drawings

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9010
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
82,00 mm
Depth
9,25 mm
Built-in width
120,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352033580
1 NR
12.5x8.5x1.1 [cm]
111 [g]
Barcode Qty 10 NR
8007352000346
10 NR
13.5x12.4x9.2 [cm]
1,164 [g]
Question: What is the difference between technopolymer and cast metal plaques?
Answer: The first are made of plastic with special moulding processes and come in various finishes: glossy, matte SILK soft-touch, satin, wood. The latter are in die-cast metal alloys worked with special technologies and with paint or galvanic deposition surface-finish treatments.
