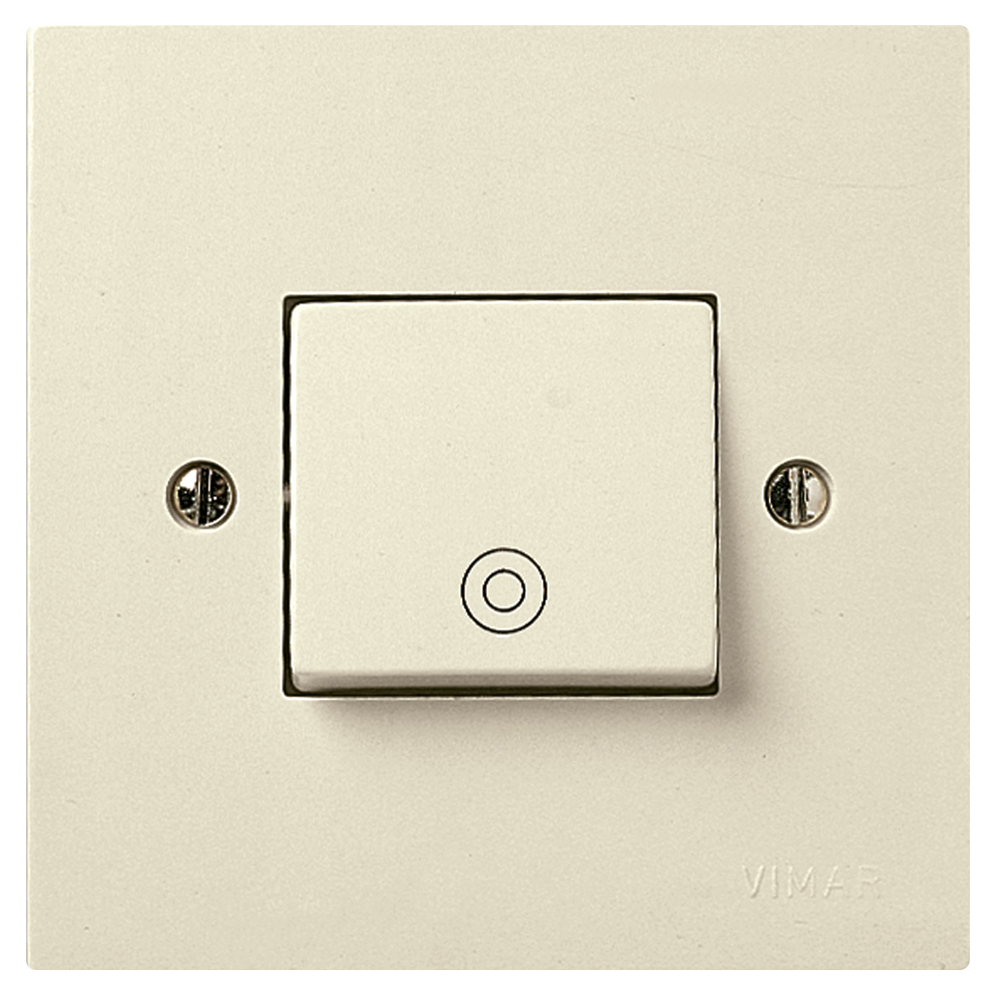

1P NO 10A push button ivory - 06240

Pdf
Vimar - 06240 - 1P NO 10A push button ivory
Vimar - 06240 - 1P NO 10A push button ivory

06240
Wiring devices / Traditional wiring devices / MASCOT / Devices

1P NO 10A push button ivory
1P NO 10 A 250 V~ push button, general symbol, wide button, ivory

Product Status
2 - Will be discontinued

You may also be interested in

V71001
V71001 - Flush mounting box ø 60mm light blue
V71001.AU
V71001.AU - Flush mounting box ø 60mm light black
V71701
V71701 - Round flush-mount box f/hollow wall blue
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Other
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
80,00 mm
Device height
80,00 mm
Device depth
36,00 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352094550
1 NR
8x8x3.6 [cm]
53.9 [g]
Barcode Qty 20 NR
8007352094567
20 NR
29.5x24.8x8.7 [cm]
1,302.13 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
