Round flush-mount box f/hollow wall blue - V71701

Pdf
Vimar - V71701 - Round flush-mount box f/hollow wall blue
Vimar - V71701 - Round flush-mount box f/hollow wall blue

V71701
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

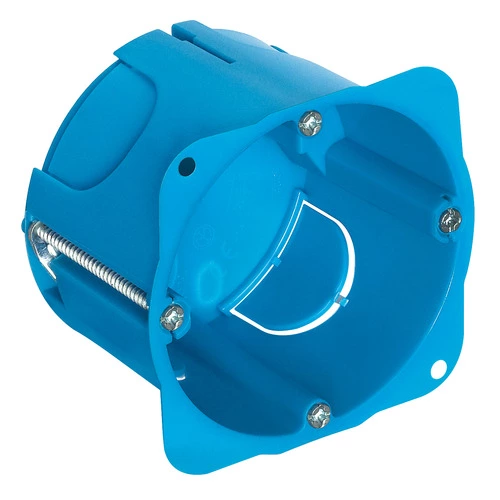

Round flush-mount box f/hollow wall blue
Round mounting boxes (GW 850 °C) for hollow walls, light blue. SuiTable only for mounting frames without screws

  • Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)
  • Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
  • Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
  • Fixing lugs for support screws made of metal
  • Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers

Product Status
3 - Active

You may also be interested in

V71632
V71632 - Flat cover 2M
V71571
V71571 - Accessory for 2M boxes for hollow walls
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Hollow wall
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
68 mm
Length
71,50 mm
Width
71,50 mm
Depth
0,00 - 50,00 mm
Inner depth
50,00 mm
For number of electric fittings
2
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
8
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352425644
1 NR
7.1x6.9x5 [cm]
27.46 [g]
Barcode Qty 5 NR
8007352425651
5 NR
7.1x6.9x25 [cm]
137.3 [g]
Barcode Qty 100 NR
8007352425668
100 NR
38.5x29x30 [cm]
3,200 [g]
