By-alarm Plus 125 zones circuit board - 03802

Pdf

03802
Safety / By-alarm Plus / Surface mounting components / Non-modular components

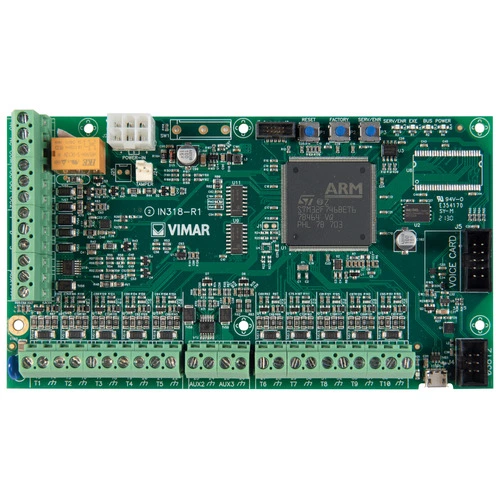

By-alarm Plus 125 zones circuit board
By-alarm Plus programmable control unit with keypad and display, 13.8 VDC power supply, 10 local In/Out zones extendable to 125 with expansions (modules or boards), 3 programmable 12 VDC outputs, 1 programmable relay output, 2 programmable open-collector outputs

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Central alarm panel for intrusion detection system
Number of detection groups
125
Integrated dial device
No
Number of outputs for acoustic signal generators
1
Number of outputs for optical signal generators
3
Occurrence memory
Yes
Operating voltage
13 V
Suitable for bus connection
Yes
Radio connection
Yes
With power adaptor
No
Emergency power supply integrated
Yes
Interface external
Yes
Height
9.000,00 mm
Width
16.000,00 mm
Depth
2.300,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
VdS class
None

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352707245
1 NR
17x11x5.5 [cm]
192.93 [g]
Barcode Qty 10 NR
8007352707252
10 NR
29.5x23.5x17.5 [cm]
2,199 [g]
