03806
Safety / By-alarm Plus / Surface mounting components / Non-modular components

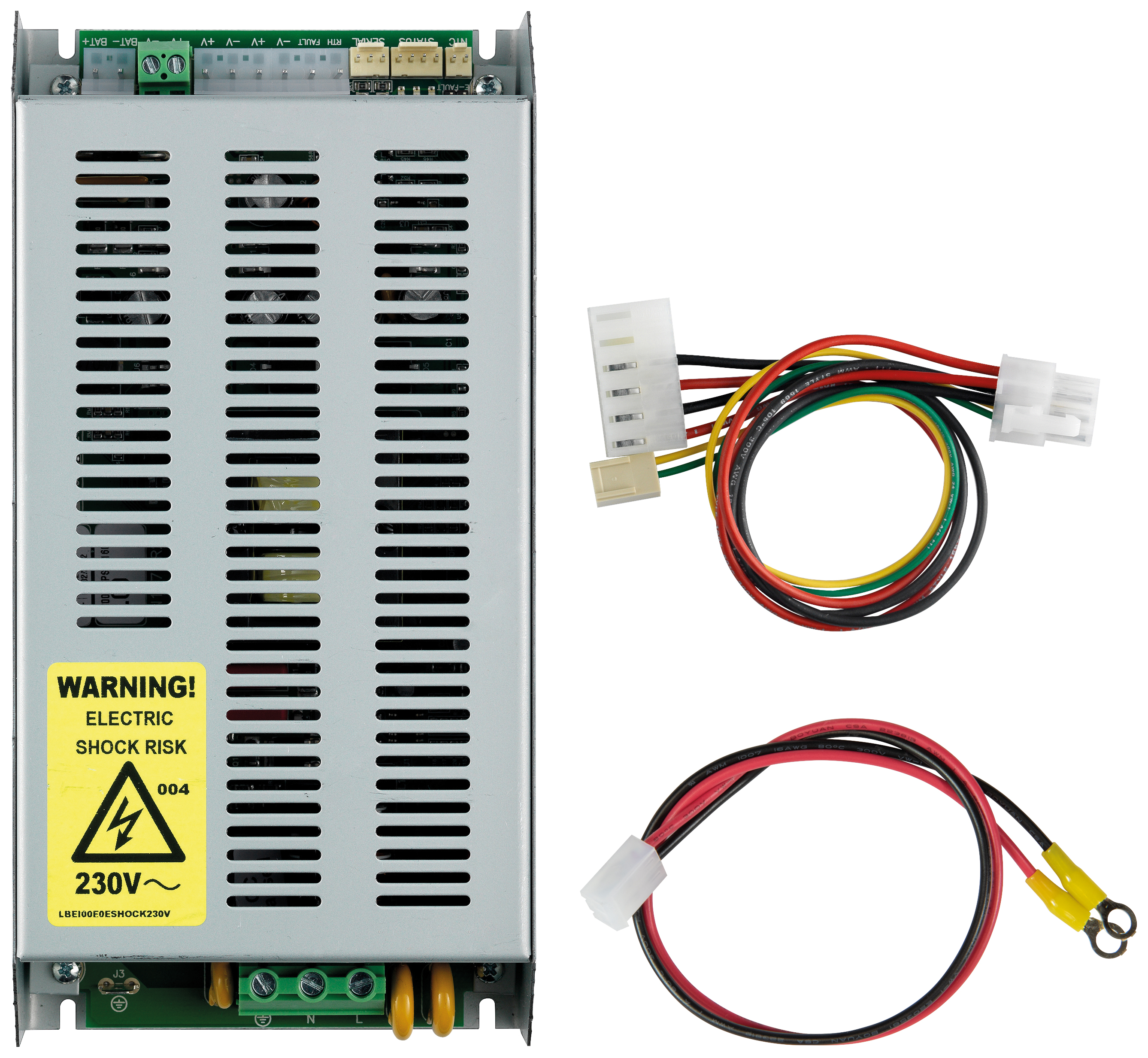

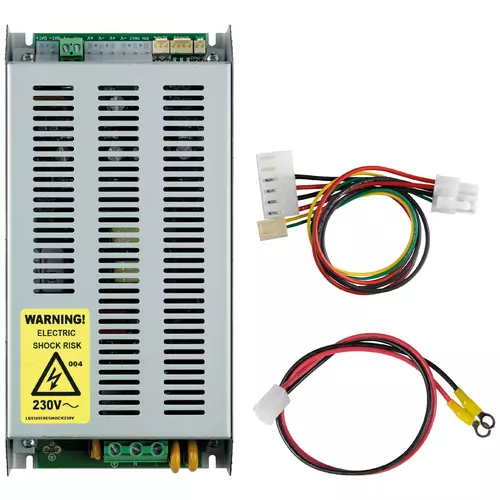

By-alarm Plus power unit 230V13Vdc6,2A
By-alarm Plus power supply unit with 13.8 VDC 6.2 A output, 230 V~ 50/60 Hz power supply
Product Status
3 - Active
Sheets, Manuals, Documentation

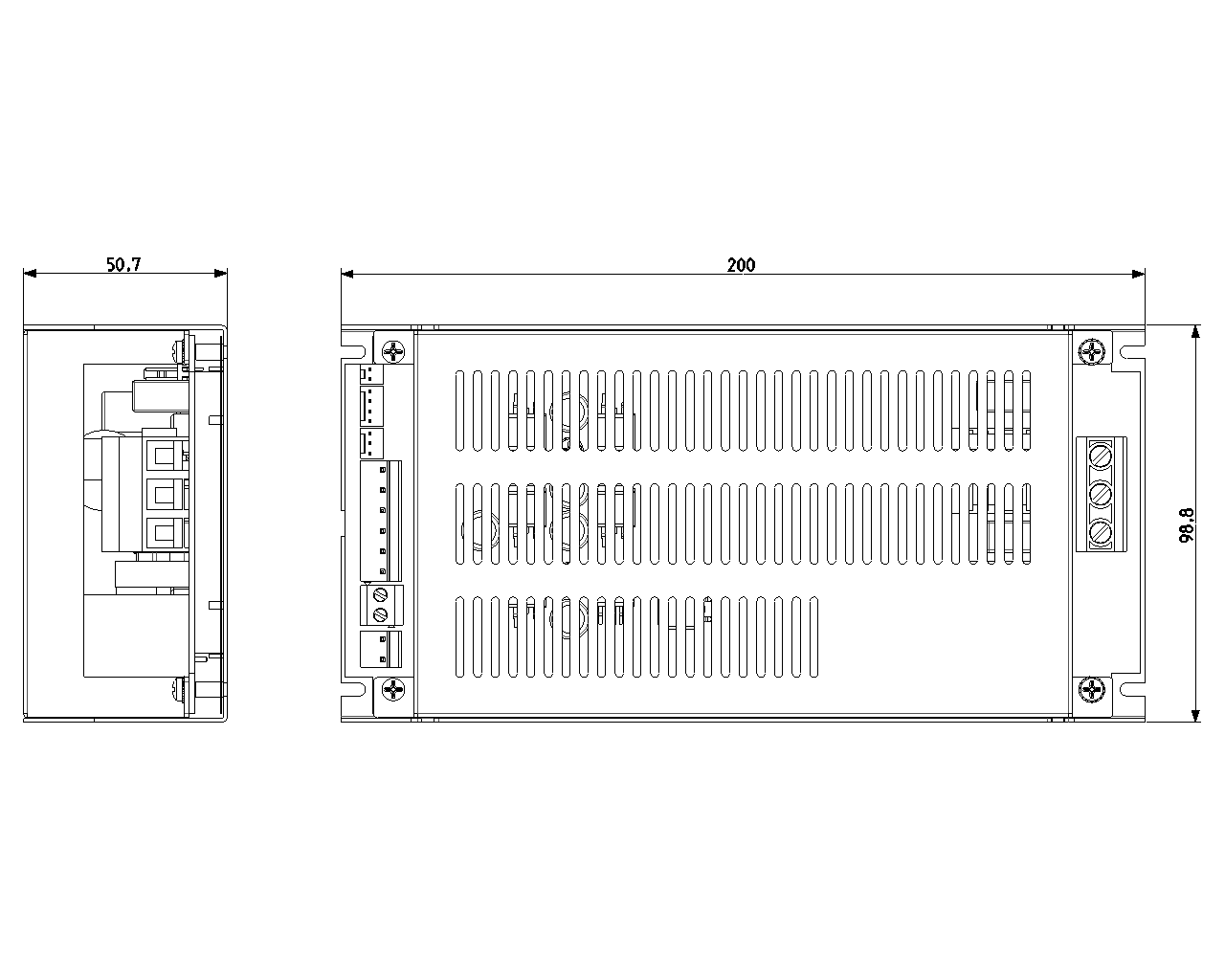

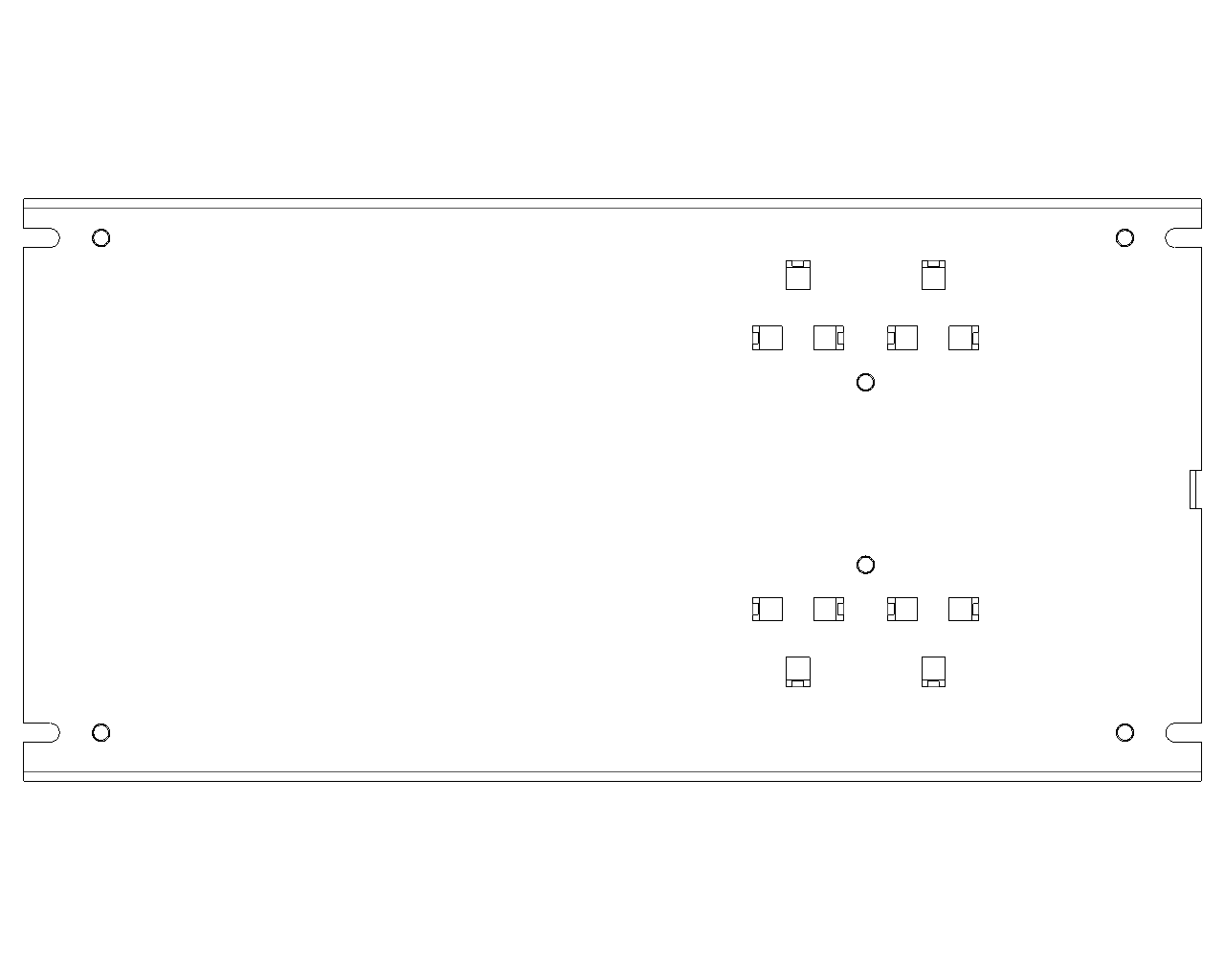

Drawings
Class group
Low-voltage switchgear and control gear
Low-voltage switchgear and control gear
Class
AC/DC-power supply
AC/DC-power supply
Voltage type (supply voltage)
AC/DC
AC/DC
1st secondary output voltage AC
0 - 13 V
0 - 13 V
2nd secondary output voltage AC
0 - 13 V
0 - 13 V
Max. output current 1
5 A
5 A
Max. output current 2
1 A
1 A
Secondary voltage adjustable
No
No
Short-circuit-proof
Yes
Yes
Rated supply voltage AC 50 Hz
0 - 230 V
0 - 230 V
Rated supply voltage AC 60 Hz
0 - 230 V
0 - 230 V
Output voltage stabilized
No
No
Power consumption
45 VA
45 VA
Power output
85 W
85 W
Stabilized
Yes
Yes
Type of electric connection
Screw connection
Screw connection
Suitable for rail mounting
No
No
Wall mounting possible
No
No
Suitable for distribution board
No
No
Direct mounting possible
No
No
Width
20.000,00 mm
20.000,00 mm
Height
9.880,00 mm
9.880,00 mm
Depth
5.070,00 mm
5.070,00 mm
Suitable for safety functions
Yes
Yes
SIL according to IEC 61508
None
None
Performance level according to EN ISO 13849-1
None
None
Degree of protection (IP)
IP00
IP00
Minimum order quantity: 1 NR
Barcode
8007352707283
1 NR
21.4x11.6x6 [cm]
806.6 [g]
8007352707290
10 NR
30.5x25.5x22.5 [cm]
8,358 [g]
