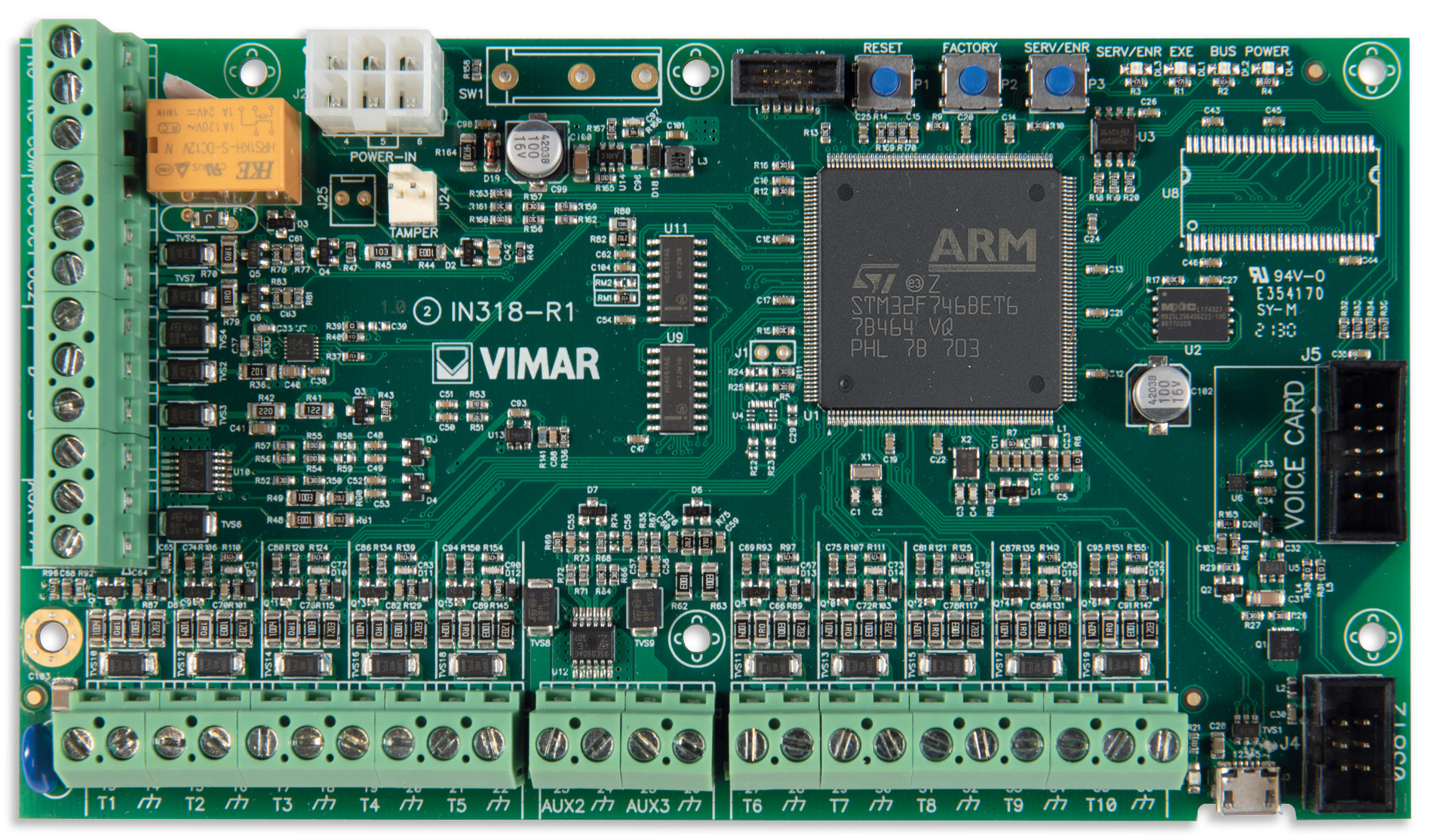

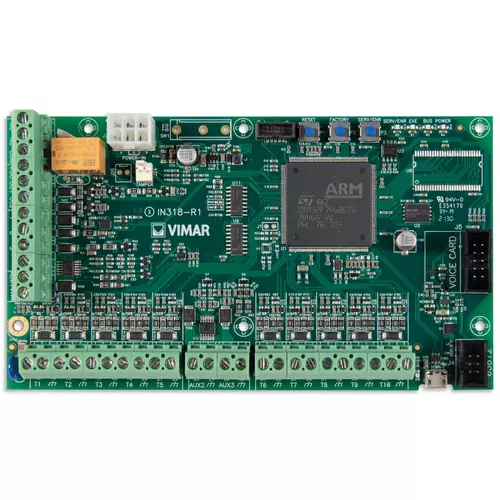

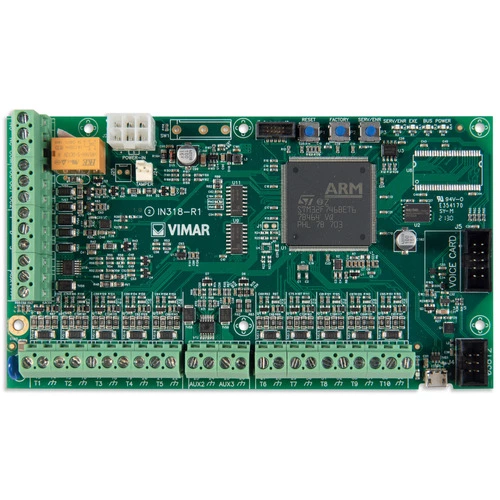

By-alarm Plus 25 zones circuit board
By-alarm Plus programmable control unit with keypad and display, 13.8 VDC power supply, 10 local In/Out zones extendable to 25 with expansions (modules or boards), 3 programmable 12 VDC outputs, 1 programmable relay output, 2 programmable open-collector outputs

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Feuille d’instructions (196 kb)
• Anwendungshinweise (197 kb)
• Multilanguage instructions sheet (283 kb)
• Manuel d’installation (1682 kb)
• Installation Manual (1669 kb)
• Installationsanleitung (1684 kb)
• Manuale installazione (1681 kb)
• Multilanguage user manual (5054 kb)
• Manuel de l'utilisateur (2821 kb)
• Bedienungsanleitung (2823 kb)

Product Software

• FW_Dispositivi_By-alarmPlus_REL-01.03.000_20240115.zip
• SW_By-alarmPlus_Manager_REL-01.03.000_20240115.zip

---

Drawings

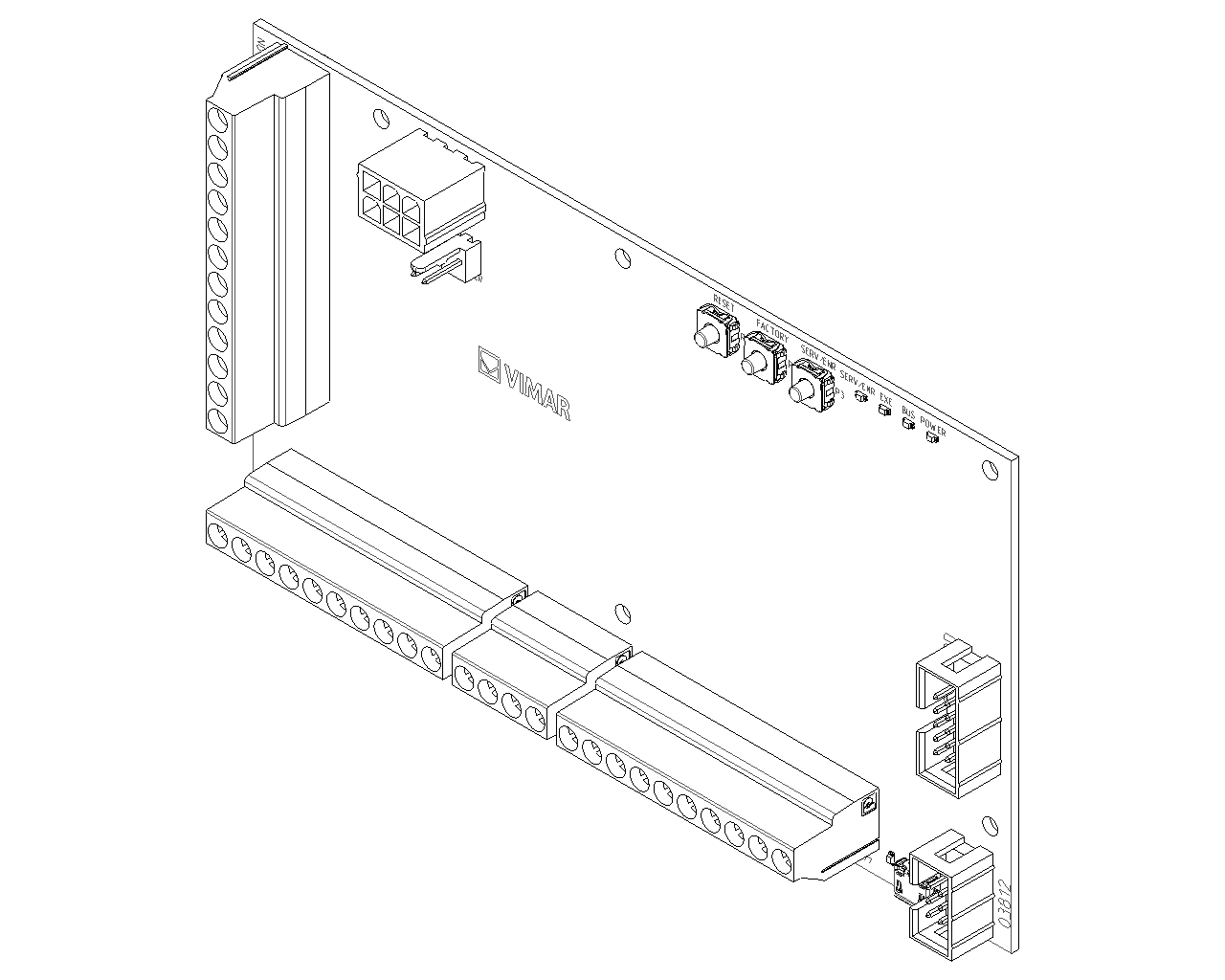

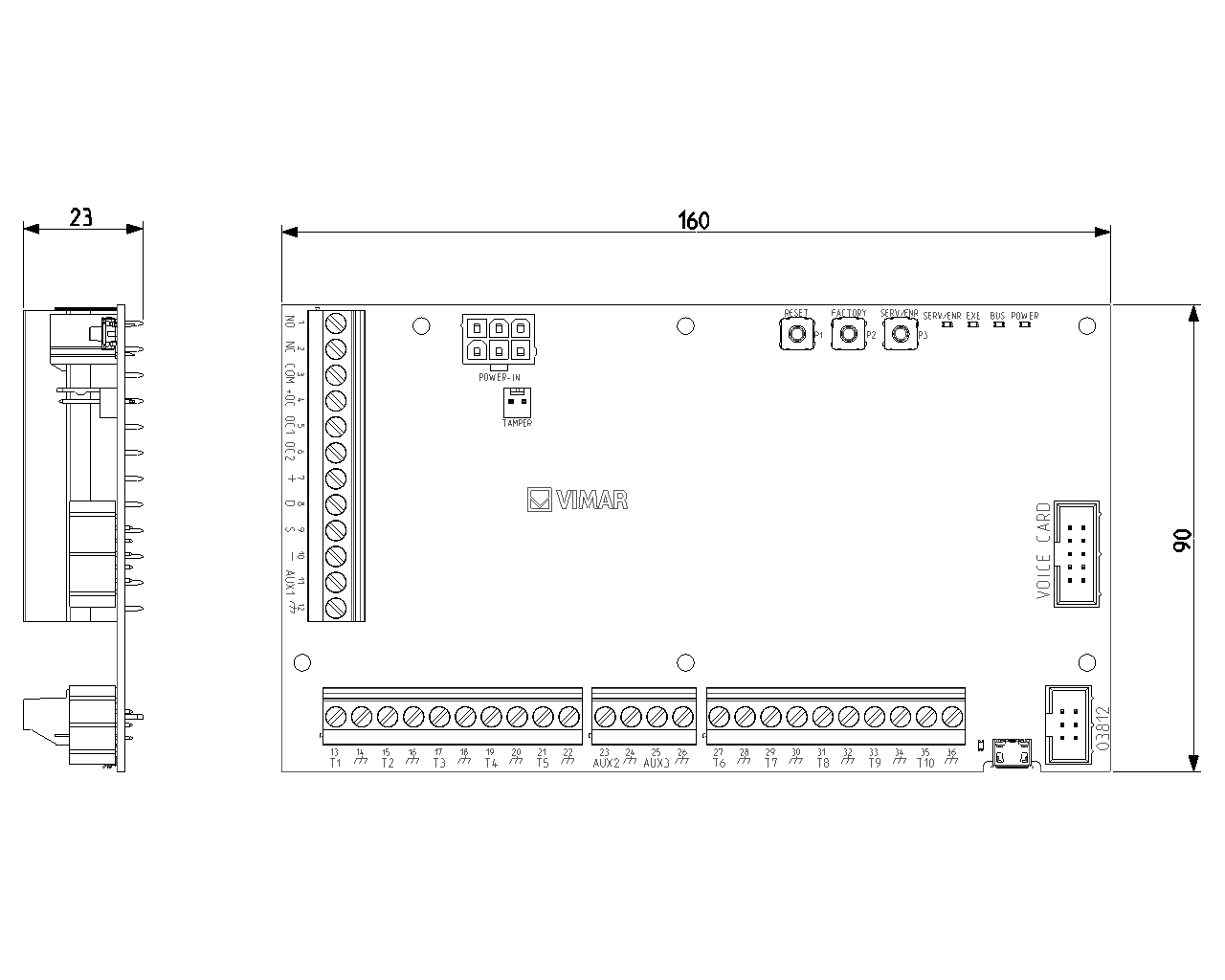

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Central alarm panel for intrusion detection system

Operating voltage
230 V

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352709799

1 NR

17x11x5.5 [cm]

190.9 [g]

8007352709805

10 NR

29.5x23.5x17.5 [cm]

2,154 [g]
