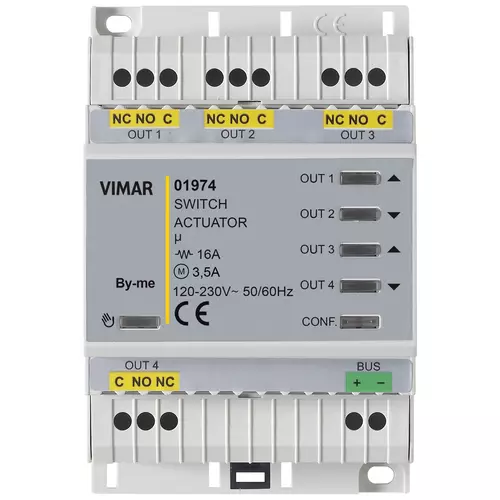

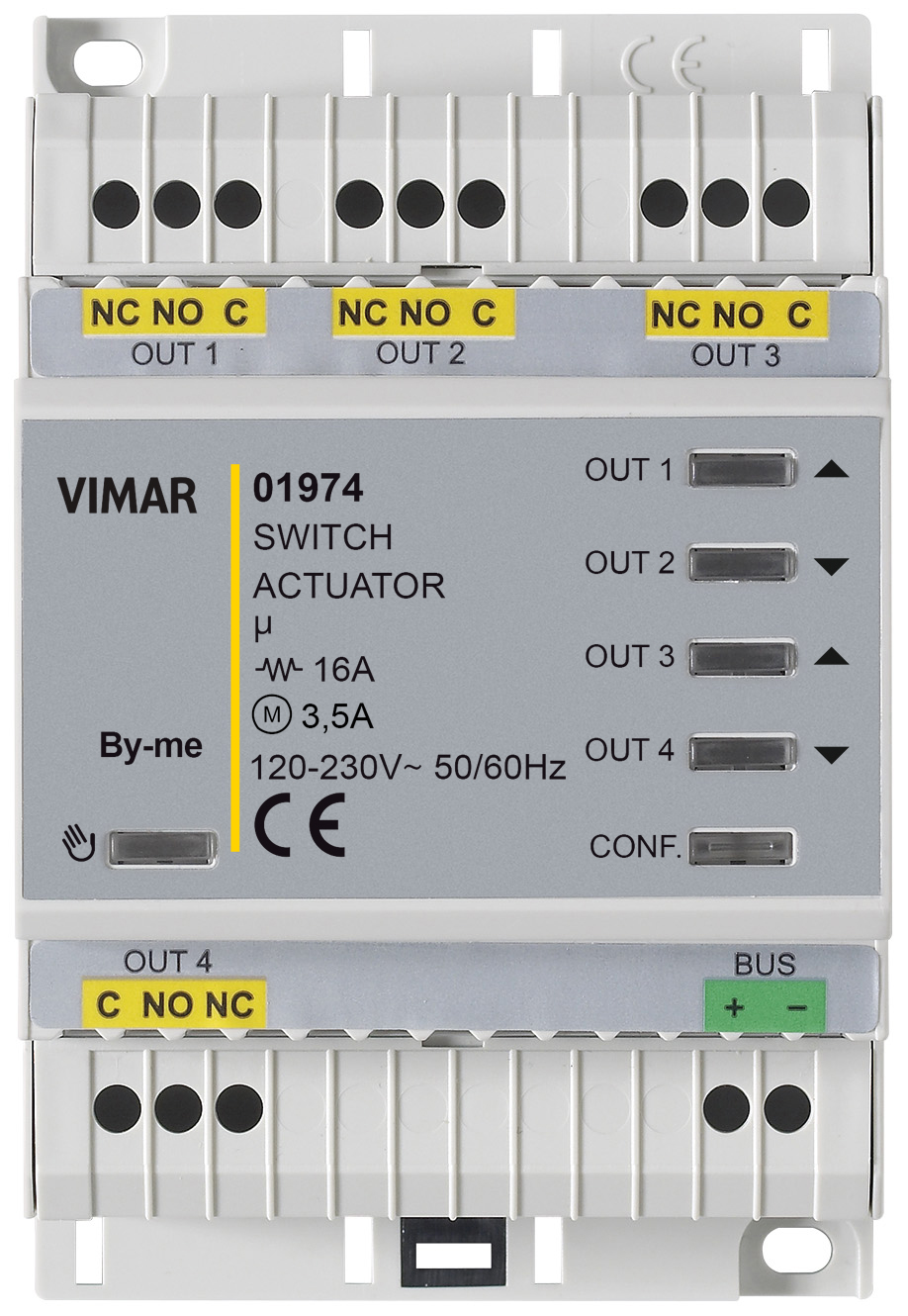

Multifunct.autom.actuator 4OUT MARINE
Actuator with 4 16 A 120-230 V~ change-over relay outputs, programmable function for lighting, rolling shutters laths orientation, fan-coil and push button control, By-me automation, for DIN (60715 TH35) rail installation, occupies 4 17,5 mm modules. For MARINE sector

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• FI - Foglio istruzioni ZIS_49400841A0 (488 kb)
• By-me automation-fw Compatibility (206 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Switch actuator for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequency)
No

Bus system radio frequency
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Radio frequency bidirectional
No

Width in number of modular spacings
4

Local operation/hand operation
No

With LED indication
Yes

Suitable for C-load
No

Max. number of switching contacts
4

Rated current
16 A

Rated operating voltage
120,00 - 230,00 V

Different phases connectable
No

With bus connection
Yes

Modular expandability
No

Degree of protection (IP)
IP20

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352539532

1 NR

11.7x10.8x7.1 [cm]

243.2 [g]

8007352573178

60 NR

59x38.5x30 [cm]

14,580 [g]
