01411
Smart systems&products / View smart system / Shared components / DIN devices

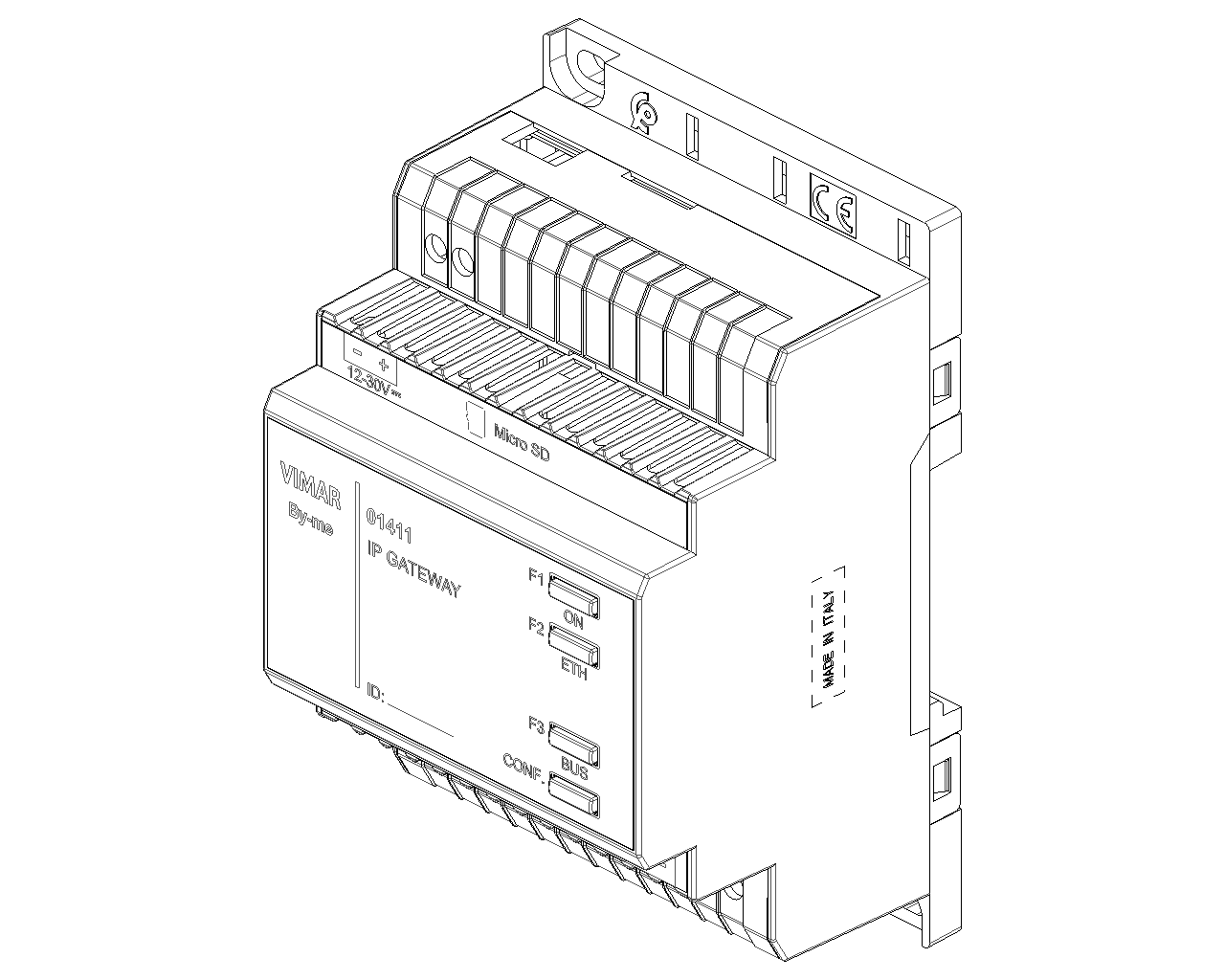

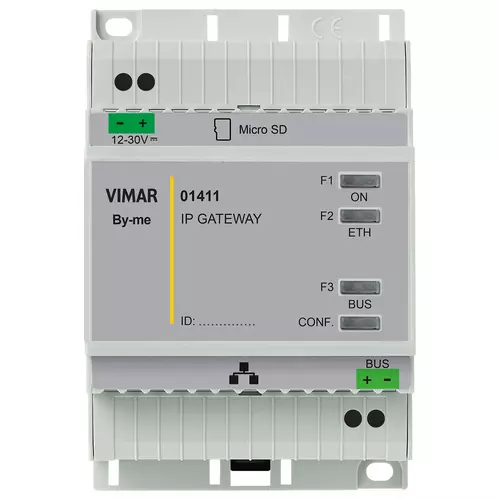

By-me home automation Gateway
IoT gateway for integration, configuration and local or remote maintenance of the By-me Plus home automation system, via IP/LAN network, Cloud and app for smartphone, tablet, PC or IP supervision touch screens, for DIN (60715 TH35) rail installation, occupies 4 17.5 mm modules
Product Status
3 - Active
Sheets, Manuals, Documentation
- Multilanguage instructions sheet (1105 kb)
- Manuale piattaforma View IoT Smart Syst. (9599 kb)
- Manuel installateur app View Pro (6937 kb)
- Manual del instalador View Pro (6921 kb)
- Installer manual View IoT Smart Systems (7021 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (7114 kb)
- Installationsanleitung View Pro (6907 kb)
- Manuale installatore Sistema By-me Plus (30061 kb)
- Manuel installateur By-me Plus (22198 kb)
- Manual del instalador By-me Plus (22244 kb)
- Installer manual By-me Plus System (22392 kb)
- Συνδεδεμένο σύστημα smart automation (22738 kb)
- Installationsanleitung By-me Plus (22257 kb)
Product Software

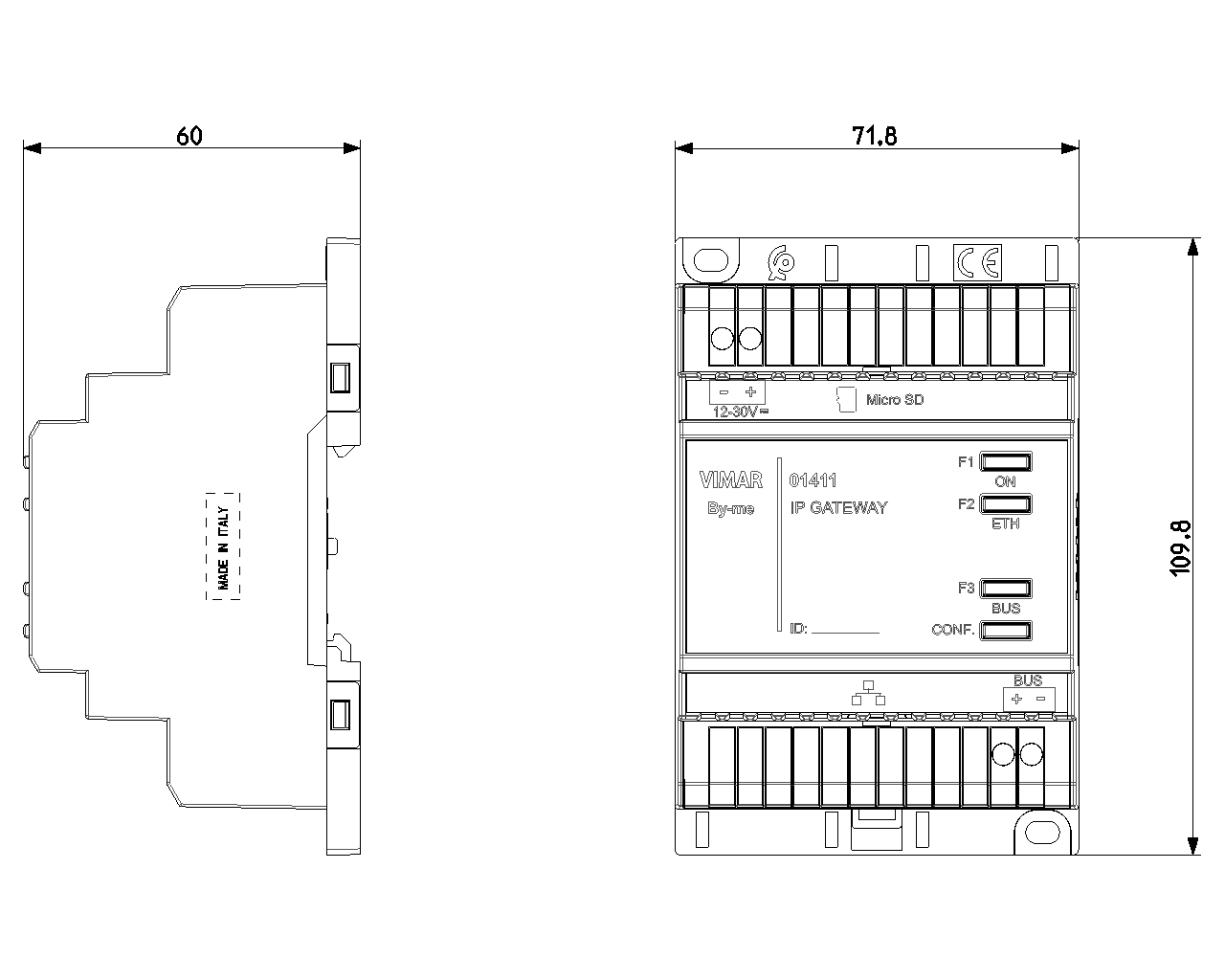

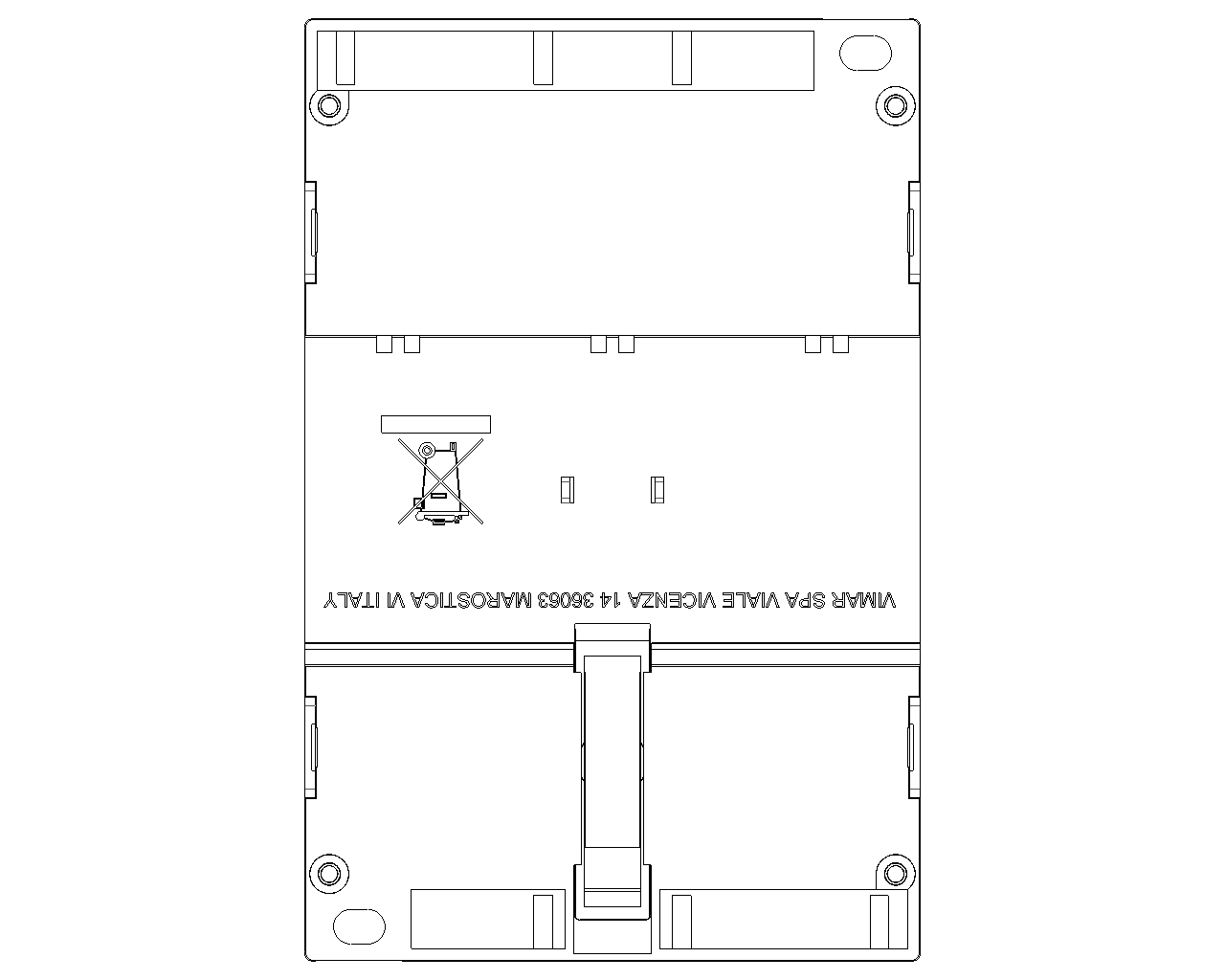

Drawings
Installation bus systems
System interface/media gateway for bus system
Yes
No
No
No
No
Other
No
Ethernet interface
DRA (DIN-rail adapter)
4
No
Yes
Yes
Other
No
Yes
Yes
No
No
IP20
00. CE Marking - EU
37. Marking - Morocco
37. Marking - Morocco
92. RoHS UAE
Barcode
| Question: | Can the gateway act as a control unit and also provide you the possibility of accessing controls via Internet/App directly? |
|---|---|
| Answer: | Gateway art. 01411 performs the control unit functions (configurator) but also those of the supervisor (once those of the Web Server 01945) as well as those of a logic unit. Within 32 home automation system devices installed and fitted with a BUS terminal, the light version of the automations gateway art. 01410 is enough |
| Question: | For the remote management of an electrical system with By-me technology, is the Web Server module necessary or is the gateway sufficient? |
| Answer: | The automations gateway of the By-me Plus system includes the functions which in the previous system, By-me, were specific to the control unit and Web Server; consequently, should you wish to switch to the new system, you will not need to purchase the Web Server but only the gateway in question. |
