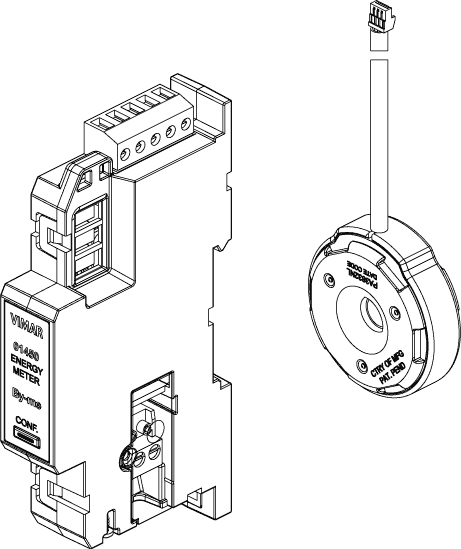

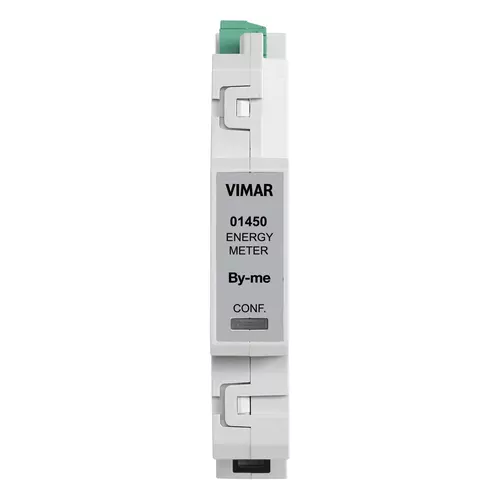

Energy meter 3IN toroidal sensor
Energy meter, 3 inputs for toroidal current sensor, measurable powers 25 W-100 kW, single phase power supply 120-230 V 50/60 Hz three phase 230/400 V 50/60 Hz, installation on DIN rail (60715 TH35), occupies 1 x 17.5 mm module. Supplied with toroidal current sensor.

Product Status
3 - Active

Class group
Installation bus systems
Class
Sensor control for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Model
Other
Mounting method
Other
Number of inputs
3
Degree of protection (IP)
IP20

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352498914
1 NR

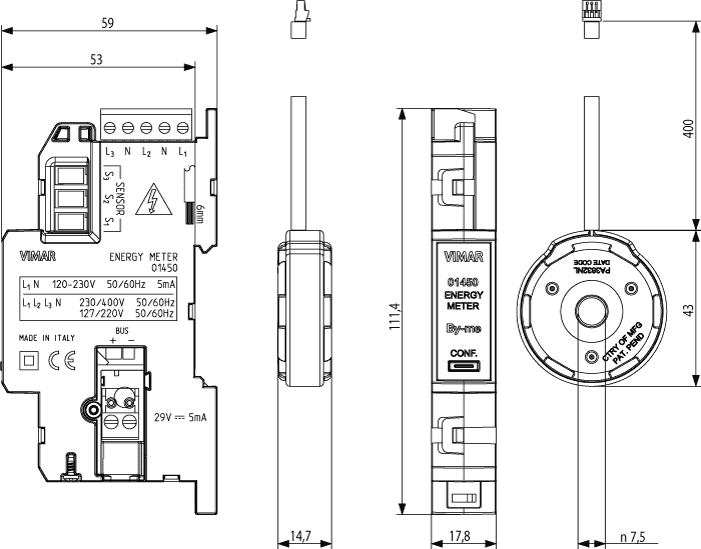

14.2x6.7x5.9 [cm]
119.8 [g]
Question: If I wish to monitor the consumption values of some household appliances do I always need the load control module 01455?
Answer: No. If you only need to measure the consumption of one or more loads, all that is required are articles which support the ˝current sensor˝ function, such as 01450, 01456, 01451 and flush mounting actuators 14537. To view and save the data, you will need a touchscreen and/or webserver type supervision device
Question: Article 01455 is used to manage both the consumption and production of the energy system or is it also necessary to install article 01450?
Answer: Article 01455 is designed for the inlet of three current sensors. This means that in a single phase system in which the production meter is at a maximum distance of 40 cm from the consumption meter, it is possible to use only art.01455 with two current sensors. In three-phase systems or single phase systems with a production meter located in another room or at a distance of more than 40 cm, in addition to the load control module art.01455, you will also need meter art.01450.
