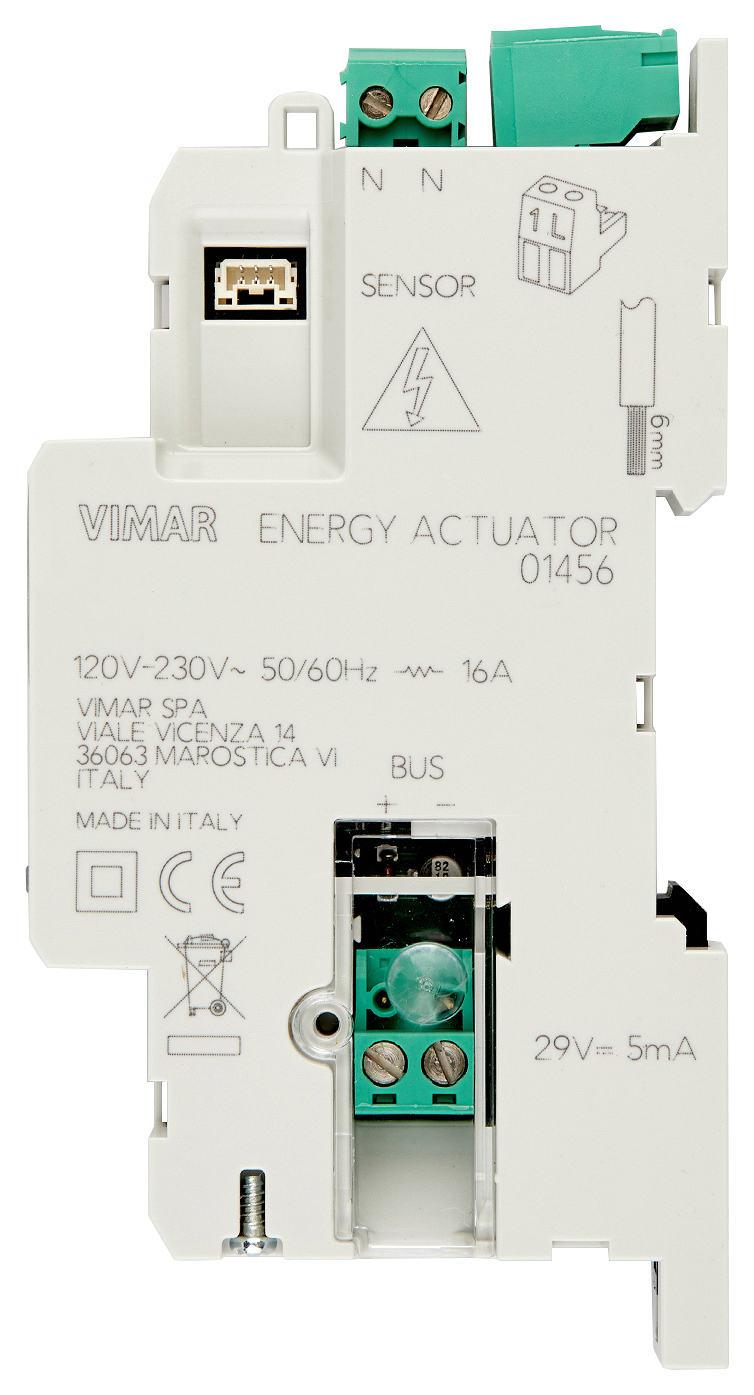

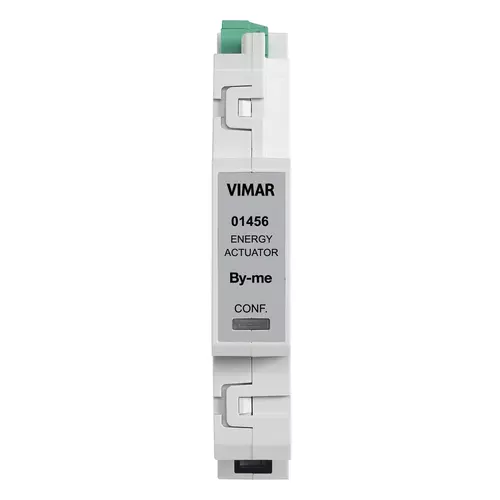

Actuator 16A+current and RCBO-sensor
Actuator with relay output 16 A 120-230 V~ 50/60 Hz with incorporated current sensor, 1 input channel for toroidal differential current sensor, installation on DIN rail (60715 TH35), occupies 1 x 17.5 mm module. Supplied without toroidal differential current sensor.

Product Status
3 - Active

Class group
Installation bus systems
Class
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Mounting method
Other
Width in number of modular spacings
1
Local operation/hand operation
No
With LED indication
Yes
Max. switching power
0 W
Suitable for C-load
No
Max. number of switching contacts
1
Rated current
16 A
Rated operating voltage
120,00 - 230,00 V
Different phases connectable
No
With bus connection
Yes
Bus module detachable
Yes
Modular expandability
No
Degree of protection (IP)
IP20

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352493612
1 NR

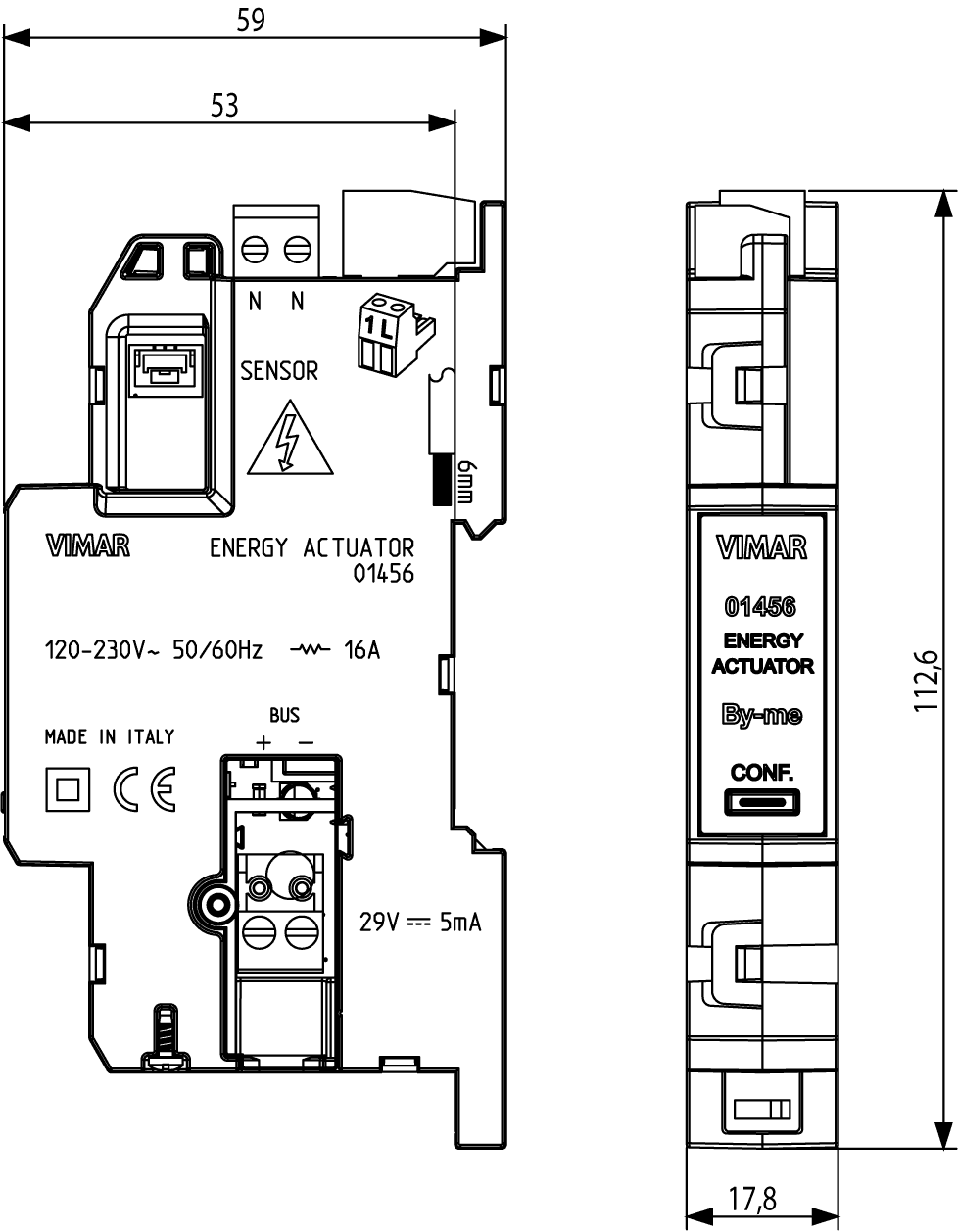

14.2x6.7x5.9 [cm]
107.8 [g]
Question: Is it advisable to use a support relay to disconnect the loads controlled by the Energy Management system?
Answer: No. On the whole range of relay actuators art.01456 and 14537, dedicated to energy management, the devices are equipped with the “zero crossing” function which improves the management of the disconnection, avoiding electric arc phenomena during relay switching. Moreover, the devices are equipped with a current sensor which, to be able to read the correct data, must be connected directly to the load and not to a support relay coil.
Question: Can the differential current sensor art.01459 be installed on any device which allows the input of a current sensor?
Answer: No. The current sensor art.01459 can be installed only in art.01456, which manages it.
Question: If I wish to monitor the consumption values of some household appliances do I always need the load control module 01455?
Answer: No. If you only need to measure the consumption of one or more loads, all that is required are articles which support the ˝current sensor˝ function, such as 01450, 01456, 01451 and flush mounting actuators 14537. To view and save the data, you will need a touchscreen and/or webserver type supervision device
