Toroidal current sensor 19mm hole - 01458

Pdf
Vimar - 01458 - Toroidal current sensor 19mm hole
Vimar - 01458 - Toroidal current sensor 19mm hole

01458
Smart systems&products / By-me Plus / Shared components / Non-modular components

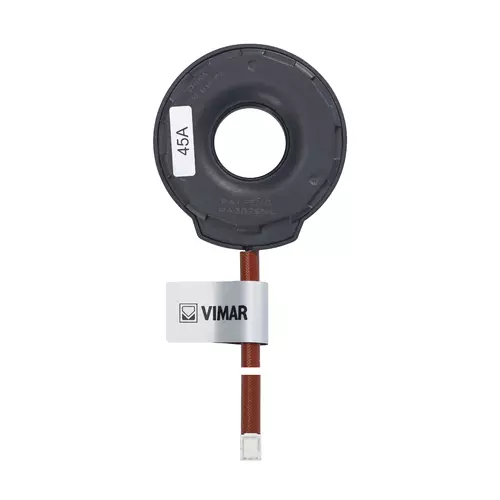

Toroidal current sensor 19mm hole
Toroidal current sensor for load control and power measurement, hole diameter 19 mm, cable length 40 cm

Product Status
3 - Active

Drawings

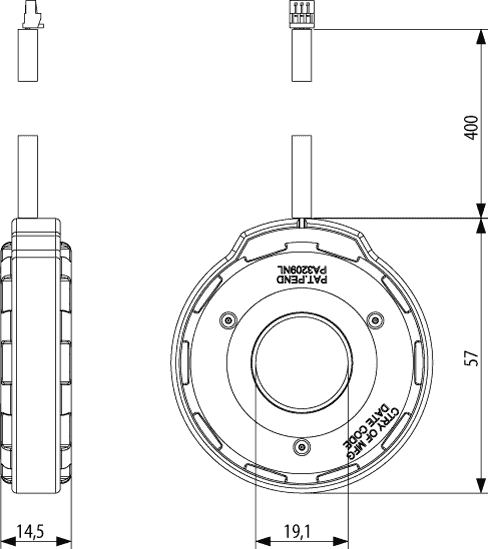

view encumbered art. 01458
PNG DXF

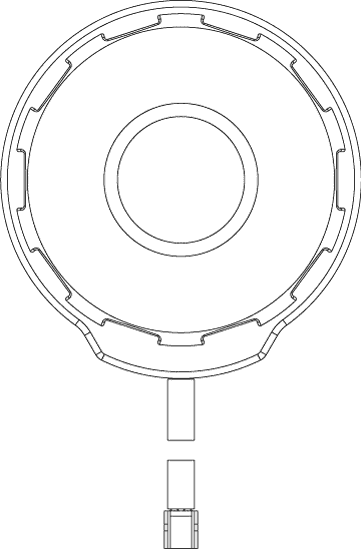

rear view art. 01458
PNG DXF

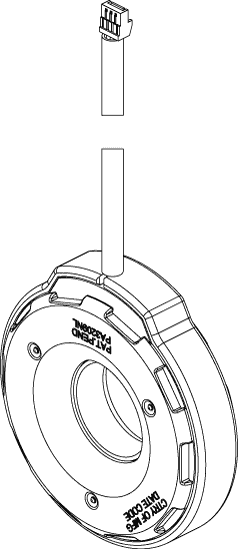

3D view art. 01458
PNG DXF
Class group
Installation bus systems
Class
Energy management for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Model
Direct/transformer
Connection type
Direct
Reactive power
No
Approved according to PTB
No
S0 impulse interface
None
Tariff switch
No

00. CE Marking - EU

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352487925
1 NR
11x10x1.7 [cm]
37.7 [g]
Barcode Qty 10 NR
8007352493230
10 NR
19x14.3x9.5 [cm]
451.9 [g]
