Retractable turret 12M hollow cover - V54412

Pdf

V54412
System infrastructure / Enclosures and control units / Floor mount turrets / Flush mounting

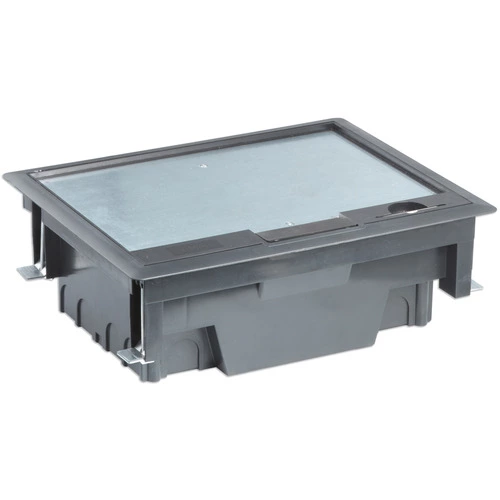

Retractable turret 12M hollow cover

产品状态
3 - Active

Class group
Subfloor systems
Class
Device installation insert for subfloor installation
Cover model
Rectangular
Number of inlets
12
Number of device cups
1
Number of socket outlets with protective contact CEE 7/3 (type F)
0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
0
Number of socket outlets British Standard BS1363
0
With cable outlet in cover
Yes
Lockable cover
Yes
Housing material
Plastic
Surface protection housing
Untreated
Material cover
Plastic
Surface protection cover
Untreated
Surface treatment cover
Untreated
Cover load
1,5
Degree of protection (IP)
Other
With opening carpeting
Yes
Protective frame carpeting
Yes
Colour
Other
RAL-number
7021
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for subfloor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Suitable for concrete installation
No
Suitable for floors in computer rooms
Yes
Suitable for wet cleaning
Yes
Outer width
300,3 mm
Outer length
234,0 mm
Length built-in dimension
209,8 mm
Width built-in dimension
276,0 mm
Min. built-in depth
100,5 mm

00. CE Marking - EU

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352735224
1 NR
36x30x13 [cm]
2,131 [g]

分享

Codice QR scheda articolo

合法

Vimar保留随时修改所示产品的特性的权利,恕不另行通知。 安装必须由符合资质的人员执行,严格遵守所在国家现行的电气材料安装相关规定。 有关产品卡信息的使用条件,请参阅 使用条件
