Joint plate for flush-mount bixes yellow - V71563

V71563
System infrastructure / Enclosures and control units / Connector block boxes / Installation accessories

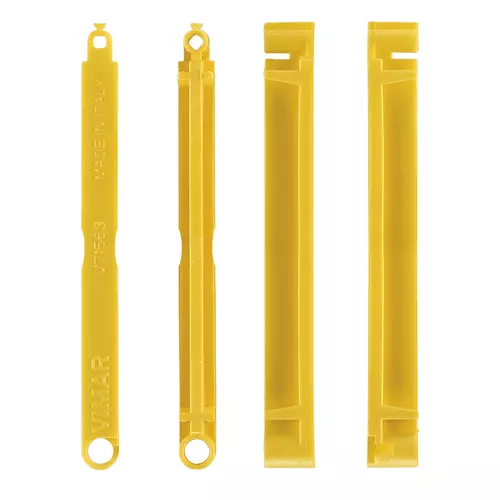

Joint plate for flush-mount bixes yellow
Coupling joints for both horizontal and vertical compositions in flush mounting boxes V71303, V71304,V71305, V71306, yellow

Product Status
3 - Active

You may also be interested in

V71303 - Flush mounting box 3M light blue

V71304 - Flush mounting box 4M light blue

V71305 - Flush mounting box 5M light blue

V71306 - Flush mounting box 6-7M light blue

V71303.AU - Flush mounting box 3M black

V71304.AU - Flush mounting box 4M black

V71305.AU - Flush mounting box 5M black

V71306.AU - Flush mounting box 6-7M black

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

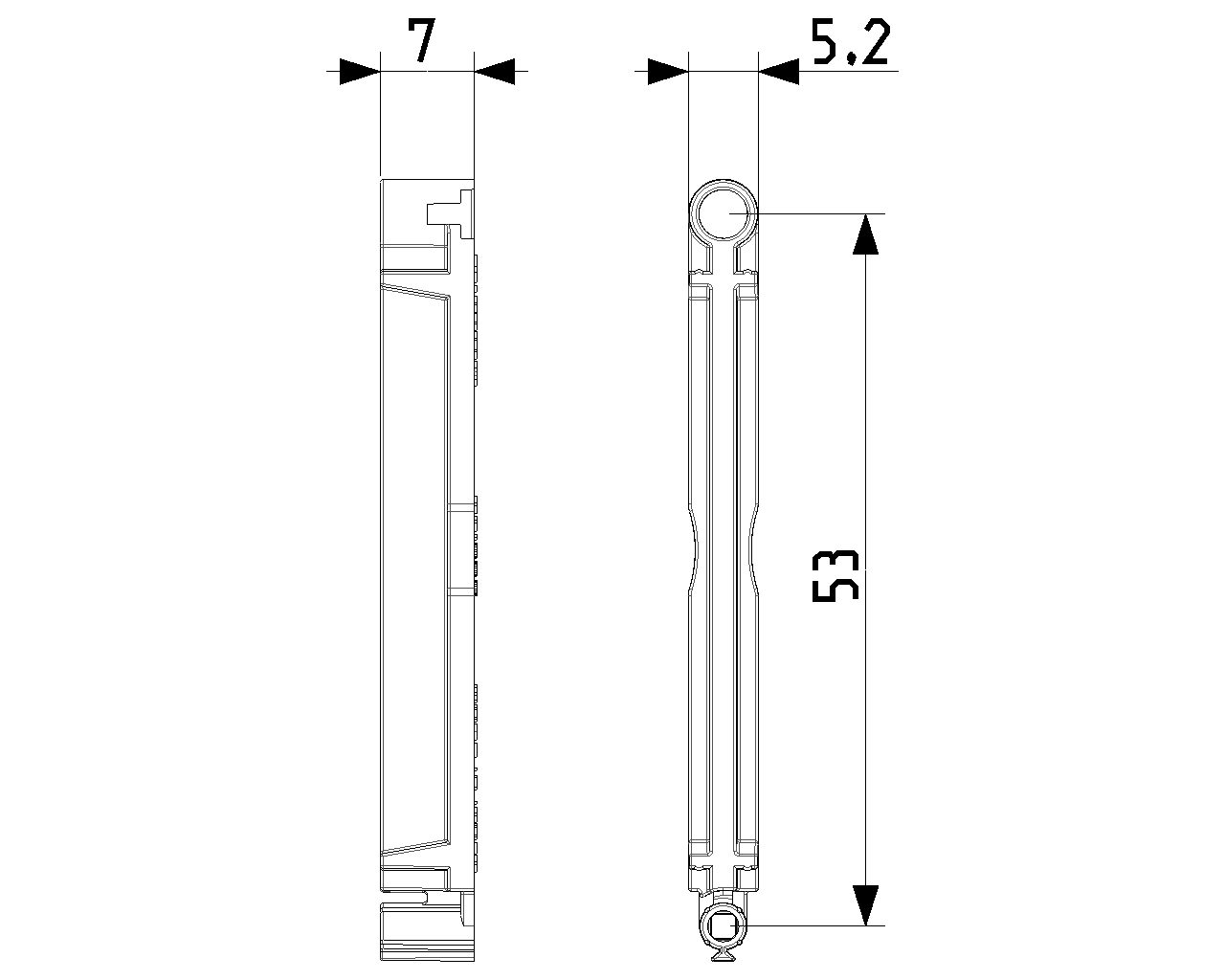

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Connection material (electrotechnical)

Class
Accessories/spare parts for junction boxes/cases for mounting in the wall

Type of accessory/spare part
Other

Accessory
Yes

Spare part
No

Suitable for built-in installation box
Yes

Suitable for central conduit box
Yes

00. CE Marking - EU

01. IMQ - Italy

Minimum order quantity: 200 NR

---

Barcode

8007352485013

1 NR

5.8x0.5x0.8 [cm]

1.309 [g]

8007352485020

200 NR

18.8x13.8x7 [cm]

261.8 [g]
