Flush mounting box 4M light blue - V71304

Pdf
Vimar - V71304 - Flush mounting box 4M light blue
Vimar - V71304 - Flush mounting box 4M light blue

V71304
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

Flush mounting box 4M light blue

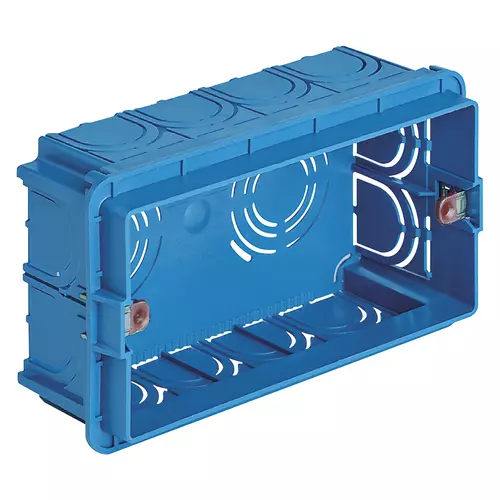

4-module flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

  • Plenty of space of internal wiring
  • Wide range of accessories available: anti-mortar covers, coupling joints to create multiple series of boxes
  • Knockouts designed for the insertion of pipes with various cross-sections
  • Rack for fixing the dividing screen (patented)
  • Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing

Product Status
3 - Active

You may also be interested in

V71304.AU
V71304.AU - Flush mounting box 4M black
V71324
V71324 - Antimortar cover for flush-mount box 4M
V71634
V71634 - Flat cover 4M
V71550
V71550 - Dividing screen for flush-mount box yell
V71563
V71563 - Joint plate for flush-mount bixes yellow

Drawings

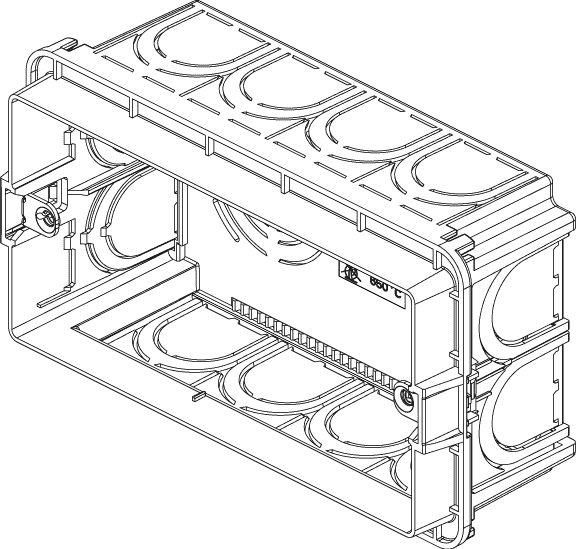

view encumbered art. V71304
PNG DXF

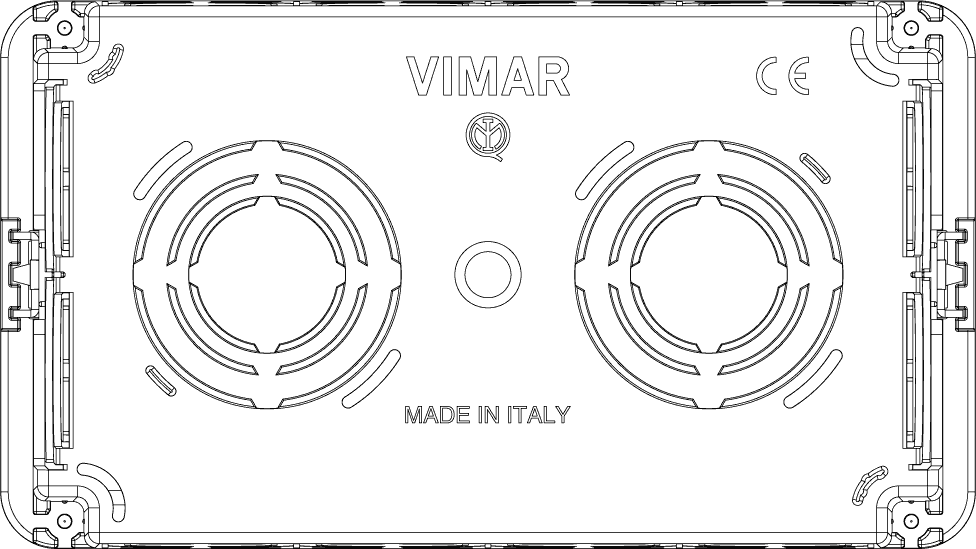

rear view art. V71304
PNG DXF
3D view art. V71304
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm
Length
59,00 mm
Width
121,00 mm
Depth
0,00 - 49,80 mm
Inner depth
50,00 mm
For number of electric fittings
4
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
14
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 6 NR

Barcode

Barcode Qty 1 NR
8007352079403
1 NR
13.1x6.9x5 [cm]
38.2 [g]
Barcode Qty 6 NR
8007352079410
6 NR
13.1x6.9x30 [cm]
238.27 [g]
Barcode Qty 96 NR
8007352079427
96 NR
59.5x38.5x26.5 [cm]
4,595.33 [g]
Barcode Qty 2,304 NR
8007352356245
2,304 NR
80x120x180 [cm]
115,000 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
