Flush-mount box f/hollow walls f/V53108 - V53708

Pdf
Vimar - V53708 - Flush-mount box f/hollow walls f/V53108
Vimar - V53708 - Flush-mount box f/hollow walls f/V53108

V53708
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

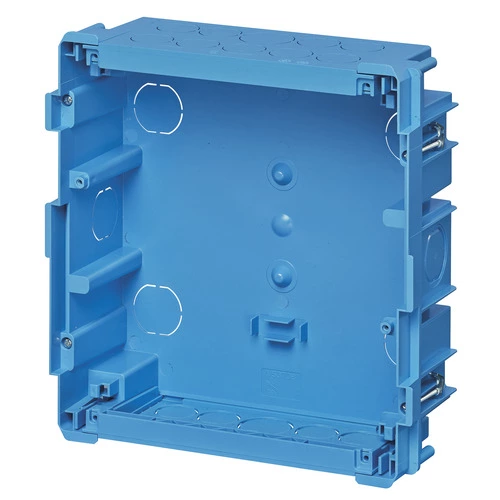

Flush-mount box f/hollow walls f/V53108
Flush mounting box for 8-module consumer unit (GW 650 °C) for hollow walls, light blue. Dimensions 228x238x80 mm

Product Status
3 - Active

Class group
Distribution boards
Class
Empty cabinet
Mounting method
Flush-mounted
Type of covering
None
Cover model
None
Type of door
None
Transparent cover/door
No
With lock
No
Nominal current (In)
0 A
Height
238 mm
Width
228 mm
Depth
80,00 mm
Built-in depth
80,00 mm
Inner depth
78,00 mm
Colour
Other
RAL-number
0
Number of modules
8
Number of rows
1
Width in number of modular spacings
8
Number of openings for flange plates
0
Extension possible
No
Number of conduit inlets
26
Housing material
Plastic
Surface protection
Untreated
With mounting plate
No
Suitable for outdoor use
No
Suitable for lightning protection
No
Degree of protection (IP)
IP40
Protection class
II
Circuit integrity
None

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 8 NR

Barcode

Barcode Qty 1 NR
8007352509993
1 NR
22.8x23.8x8 [cm]
373.4 [g]
Barcode Qty 8 NR
8007352510005
8 NR
49x36x26 [cm]
3,662 [g]
