Flush consumer unit 8M smokegrey - V53108

Pdf
Vimar - V53108 - Flush consumer unit 8M smokegrey
Vimar - V53108 - Flush consumer unit 8M smokegrey

V53108
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

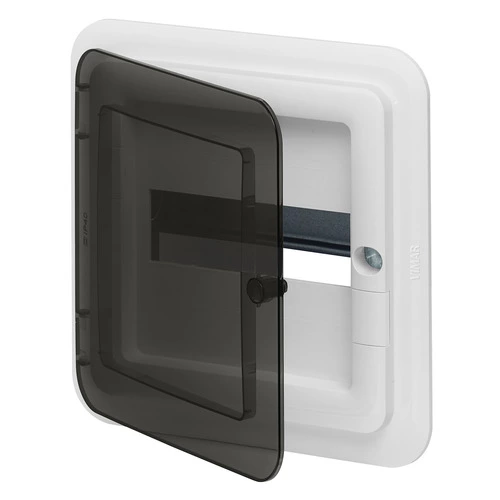

Flush consumer unit 8M smokegrey
8-module flush mounting consuner unit, IP40, with DIN (60715 TH35) rail and smoked glass door

Product Status
3 - Active

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush-mounted
Number of rows
1
Width in number of modular spacings
8
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
Yes
Housing material
Plastic
Built-in depth
75,70 mm
Inner depth
104,50 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
Height
259,90 mm
Width
256,90 mm
Depth
105,50 mm

01. IMQ - Italy

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352492196
1 NR
29x28x14 [cm]
861.1 [g]
