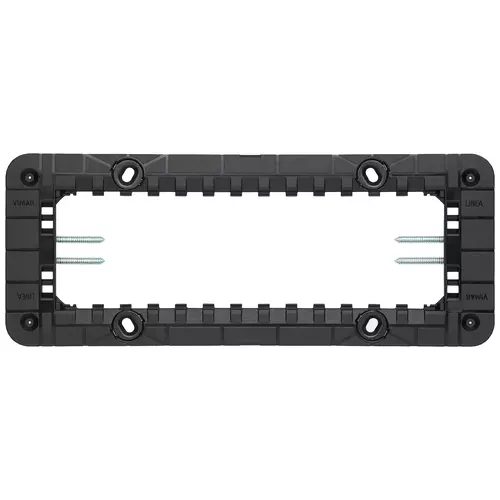

Frame 7M + screws
7-module mounting frame, with screws, for 6/7-module mounting boxes

Product Status
3 - Active

You may also be interested in

30617.C - Linea 7M mounting frame protection

30613 - Frame 3M + screws

30614 - Frame 4M + screws

30040.B - 1/2M blank module white

30040.C - 1/2M blank module canvas

30040.G - 1/2M blank module black

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

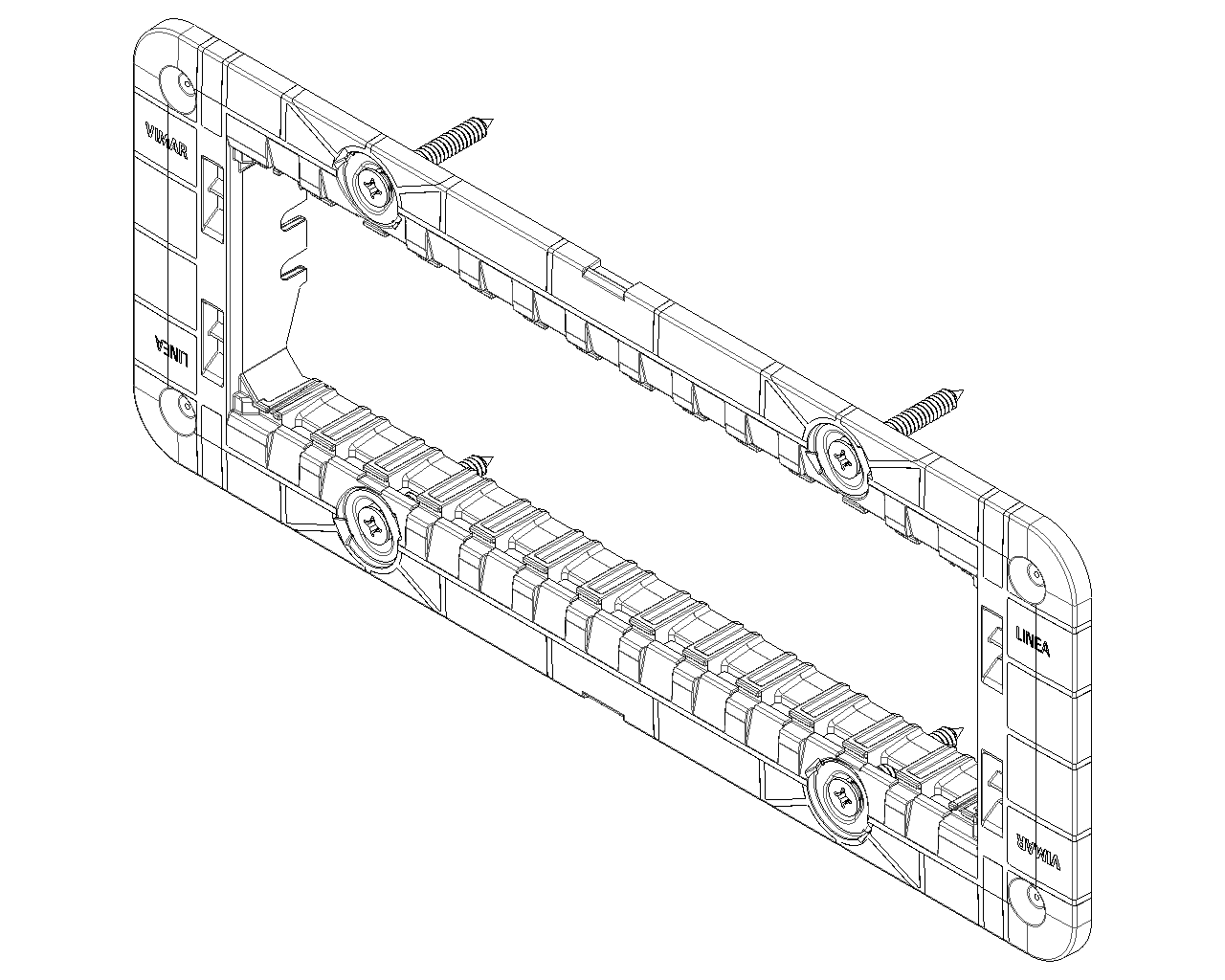

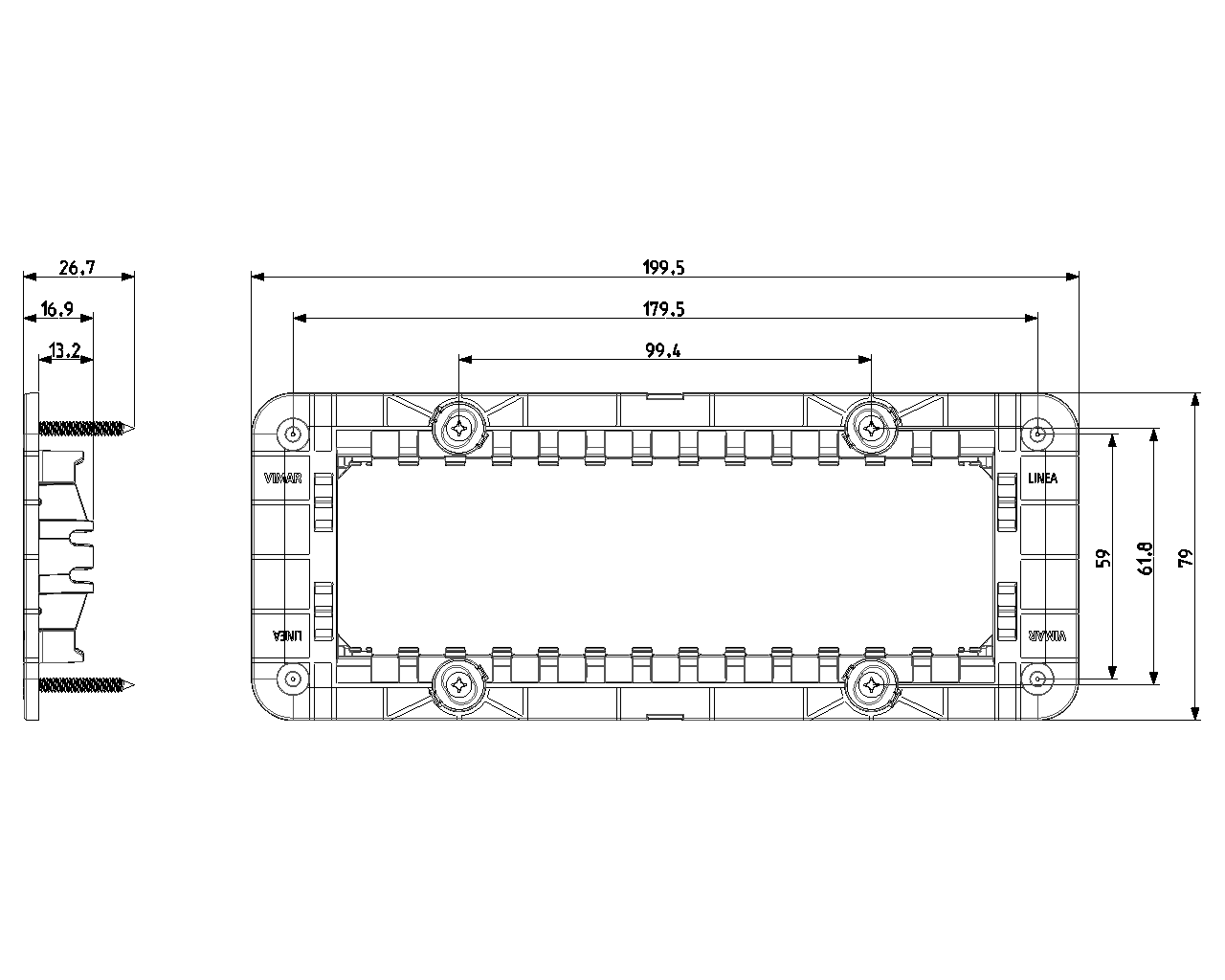

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

With nail
No

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
7

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 30 NR

---

Barcode

8007352703445

1 NR

20x7.9x2.6 [cm]

50.5 [g]

8007352703452

30 NR

28.4x24.4x14.9 [cm]

1,692 [g]

8007352703469

120 NR

62x26x30 [cm]

7,364 [g]
