Frame 3M + screws - 30613

30613
Wiring devices / Traditional wiring devices / LINEA / Mounting frames

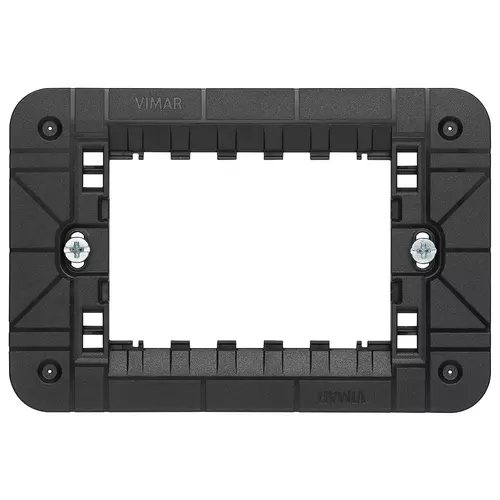

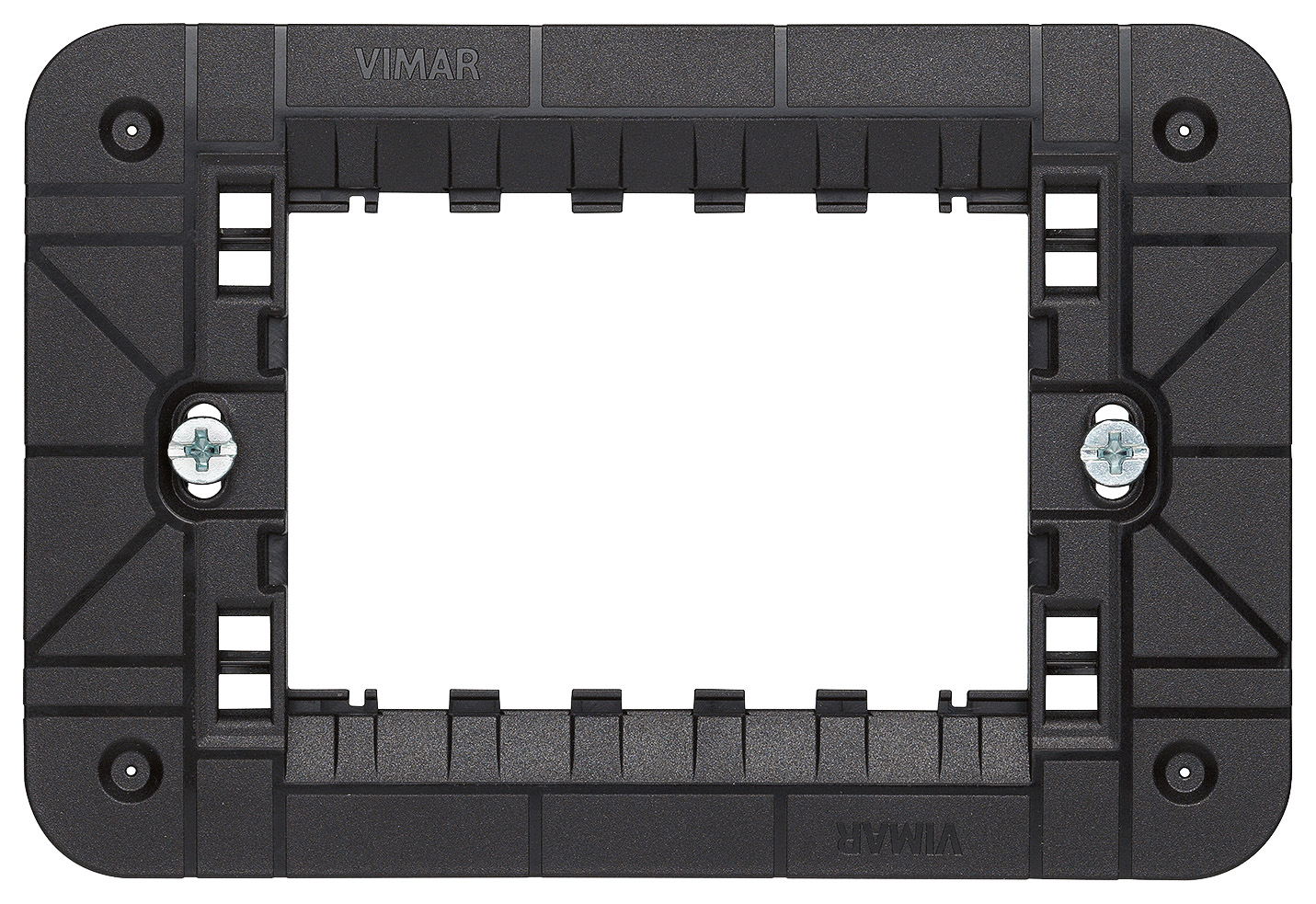

Frame 3M + screws
3-module mounting frame, with screws, for 3-module mounting boxes

Product Status
3 - Active

You may also be interested in

30613.C - Linea 3M mounting frame protection

30614 - Frame 4M + screws

30617 - Frame 7M + screws

30040.B - 1/2M blank module white

30040.C - 1/2M blank module canvas

30040.G - 1/2M blank module black

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

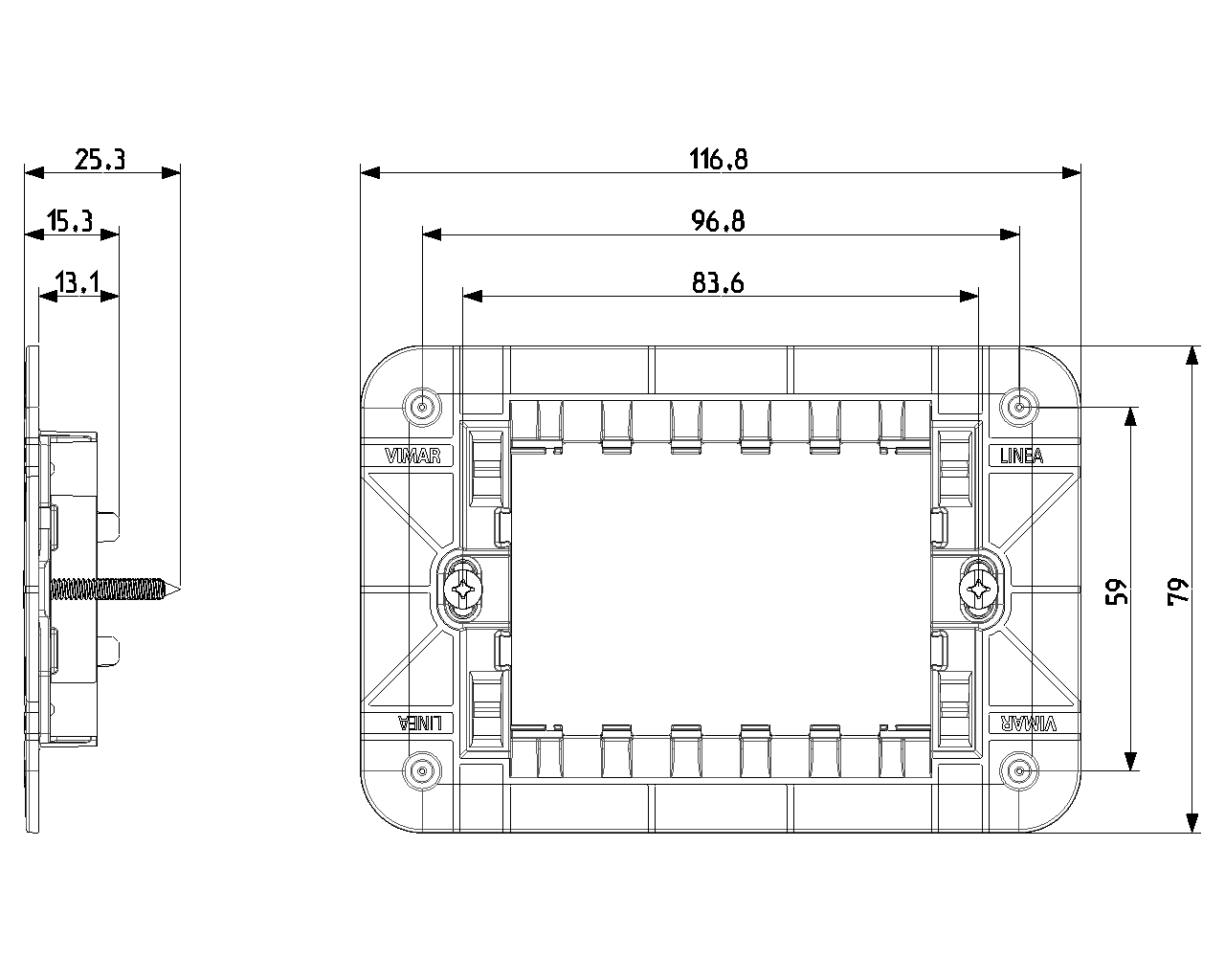

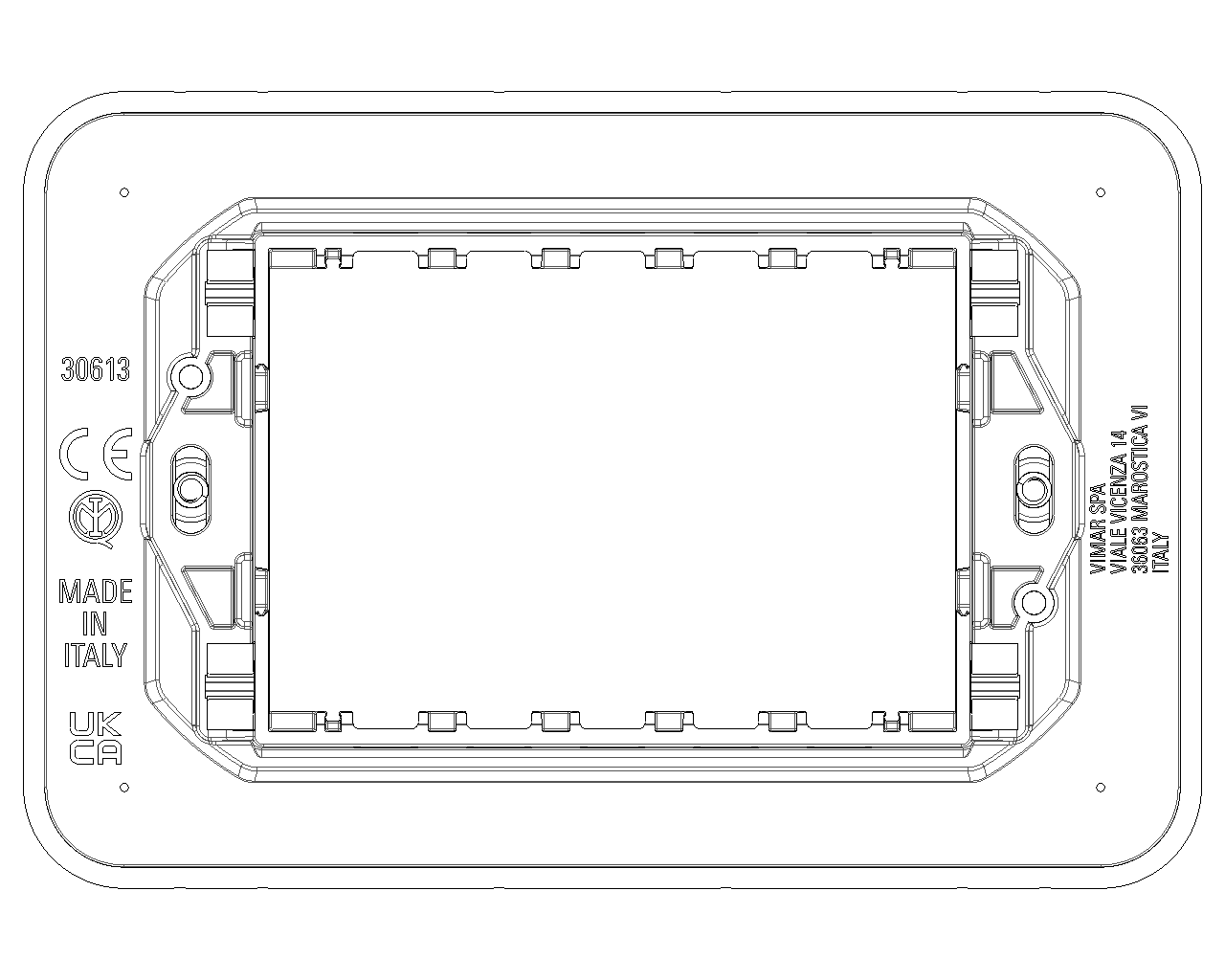

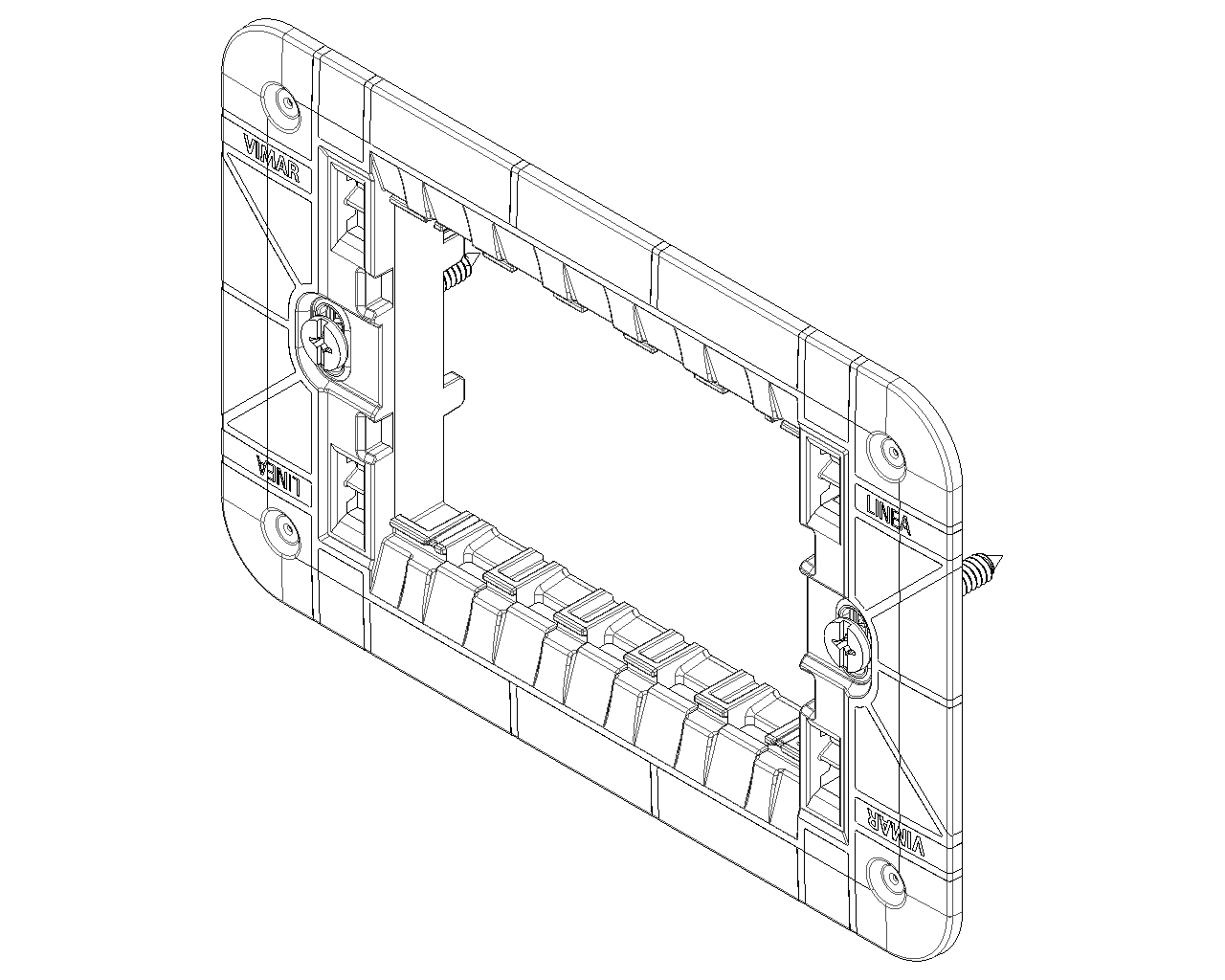

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

With nail
No

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
3

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352702660

1 NR

11.6x7.8x1.4 [cm]

25 [g]

8007352702653

10 NR

11.6x12.5x7.8 [cm]

260 [g]

8007352702325

200 NR

42x27x25 [cm]

5,610 [g]

8007352750159

3,600 NR

120x80x105 [cm]

100,980 [g]
