1P 10AX reversing switch mechanism - 30012

Pdf

Vimar - 30012 - 1P 10AX reversing switch mechanism

30012
Wiring devices / Traditional wiring devices / LINEA / Devices

1P 10AX reversing switch mechanism
1P 10 AX 250 V~ lightable reversing switch mechanism, to be completed with 1-module button. Max 100 W for lamps with built-in power supply unit (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

31000S.B - White lower 1M path light button

31000S.G - Black lower 1M path light button

31000S.C - Lower 1M path light button Canvas

31000A.B - Axial button 1M white

31000A.G - Axial button 1M black

31000A.C - Axial button 1M canvas

31000.B - Button 1M aligned white

31000.G - Button 1M aligned 1M black

31000.C - Button 1M aligned Canvas

00943.W - Linea 110-250V white LED unit

Drawings

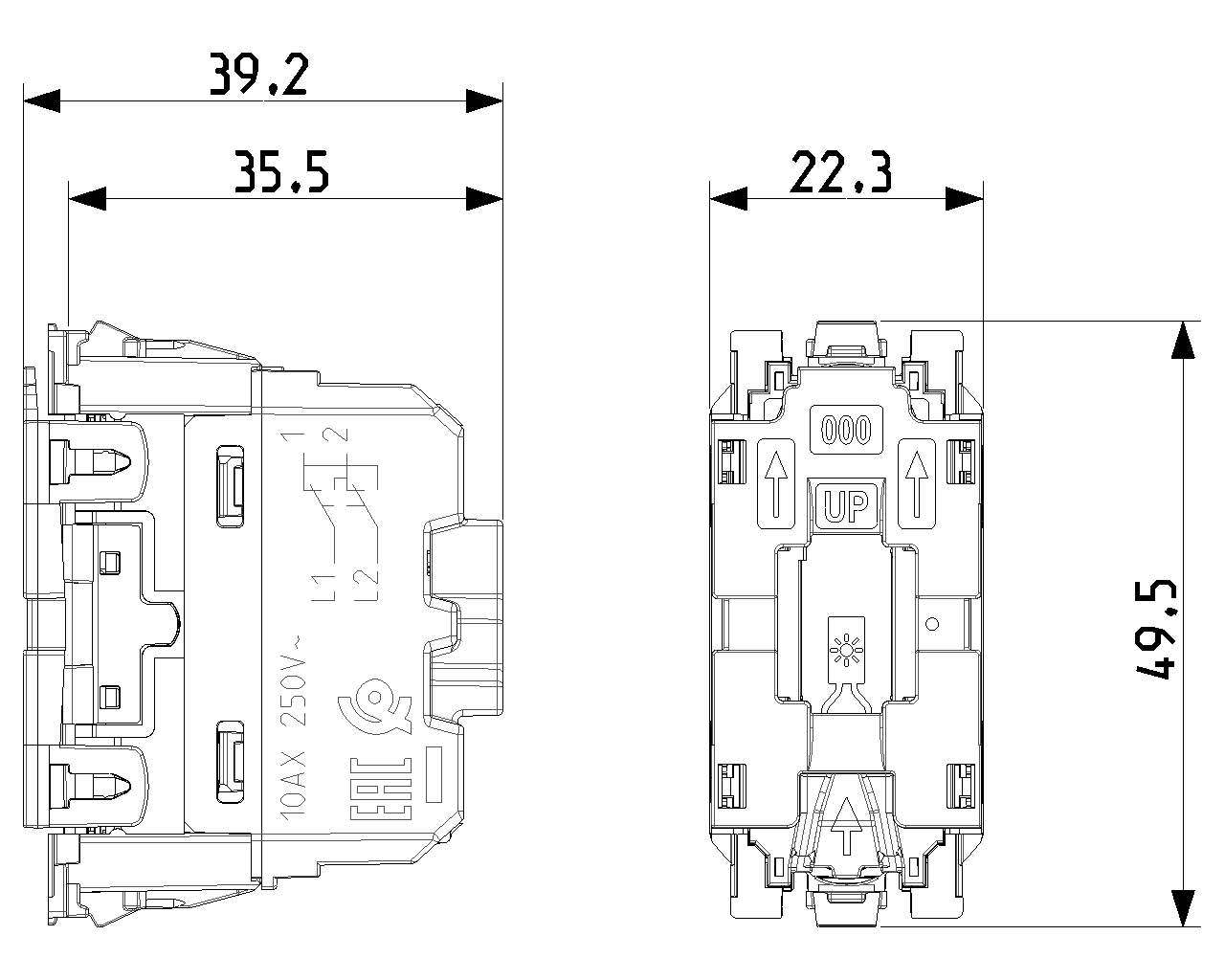

view encumbered art. 30012

PNG DXF

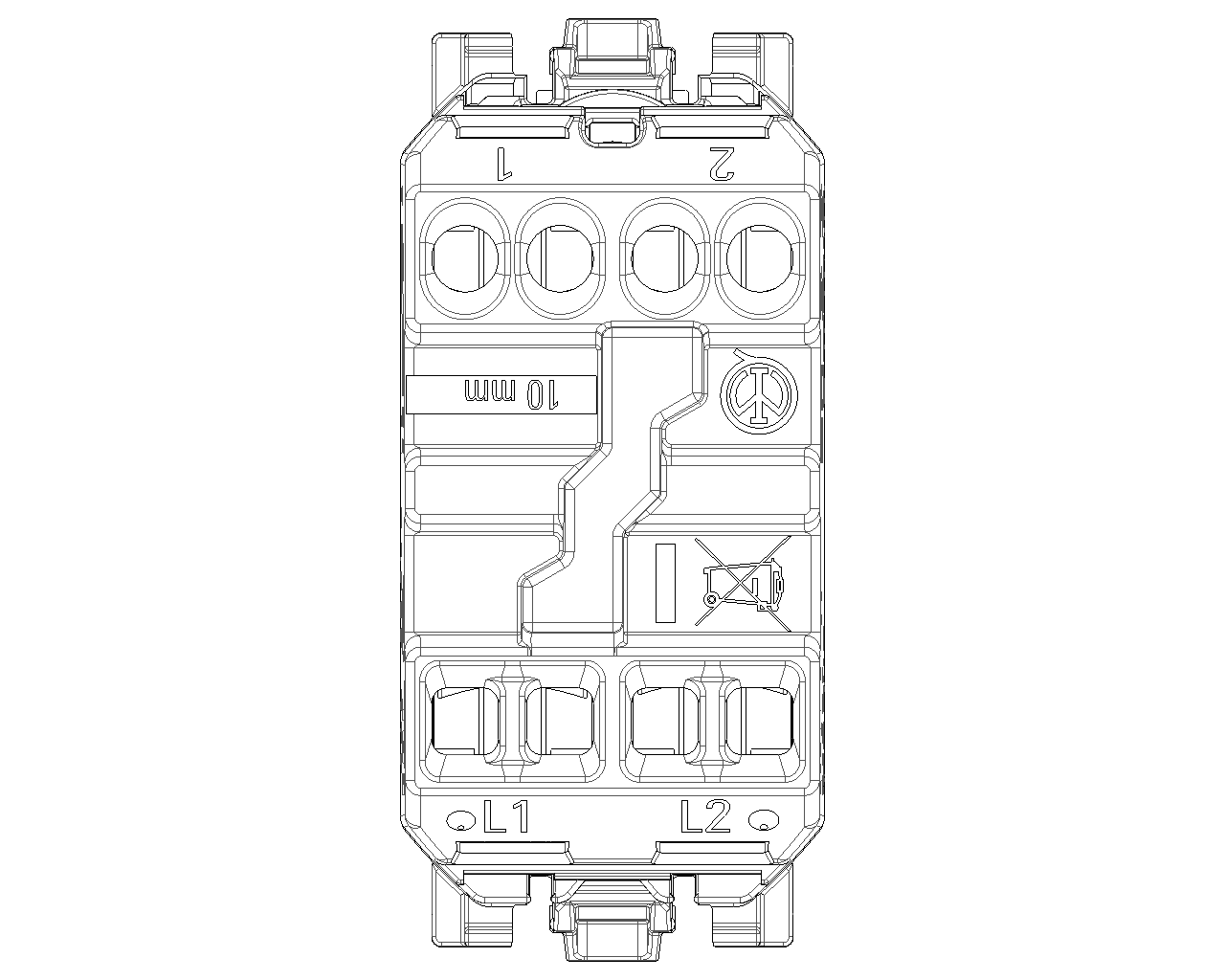

rear view art. 30012

PNG DXF

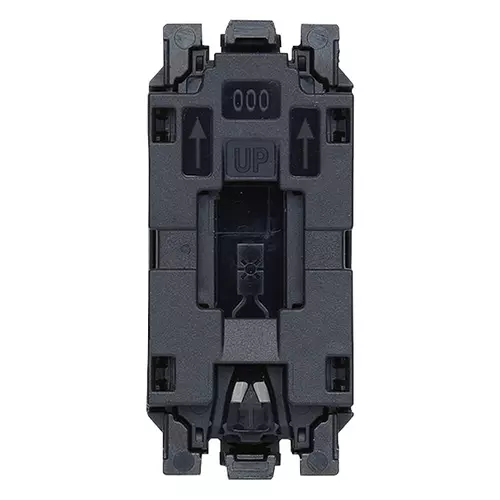

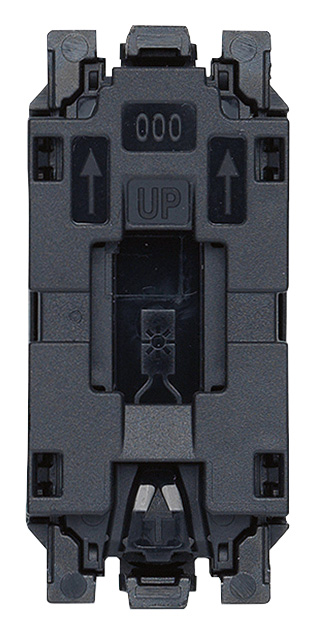

3D view art. 30012

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Intermediate switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Anti-bacterial treatment
No

Surface protection
Untreated

Surface finishing
Matt

Colour
Black

RAL-number (similar)
7024

Label space/information surface
No

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
10,00 A

Switching current for fluorescent lamps
10

Feedback-signal contact
No

Connection type
Screwed terminal

Heating switch
No

Washing machine switch
No

Device width
22,30 mm

Device height
49,50 mm

Device depth
39,20 mm

Built-in depth
35,50 mm

Compatible with Apple HomeKit
No

Compatible with Google Assistant
No

Compatible with Amazon Alexa
No

IFTTT support available
No

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352674493

1 NR

4.6x2.7x5.6 [cm]

33.8 [g]

8007352674509

50 NR

23.7x14.8x12.8 [cm]

1,873 [g]

8007352674516

300 NR

45.5x27x27 [cm]

11,662 [g]

Share

Codice QR scheda articolo
