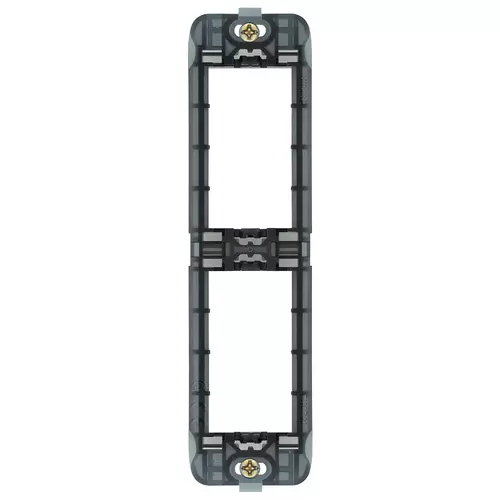

Frame 2M for panel mounting
2-module mounting frame, with screws, for panel mounting

Product Status
3 - Active

You may also be interested in

16776.AU - Flush mounting box for panel mounting

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

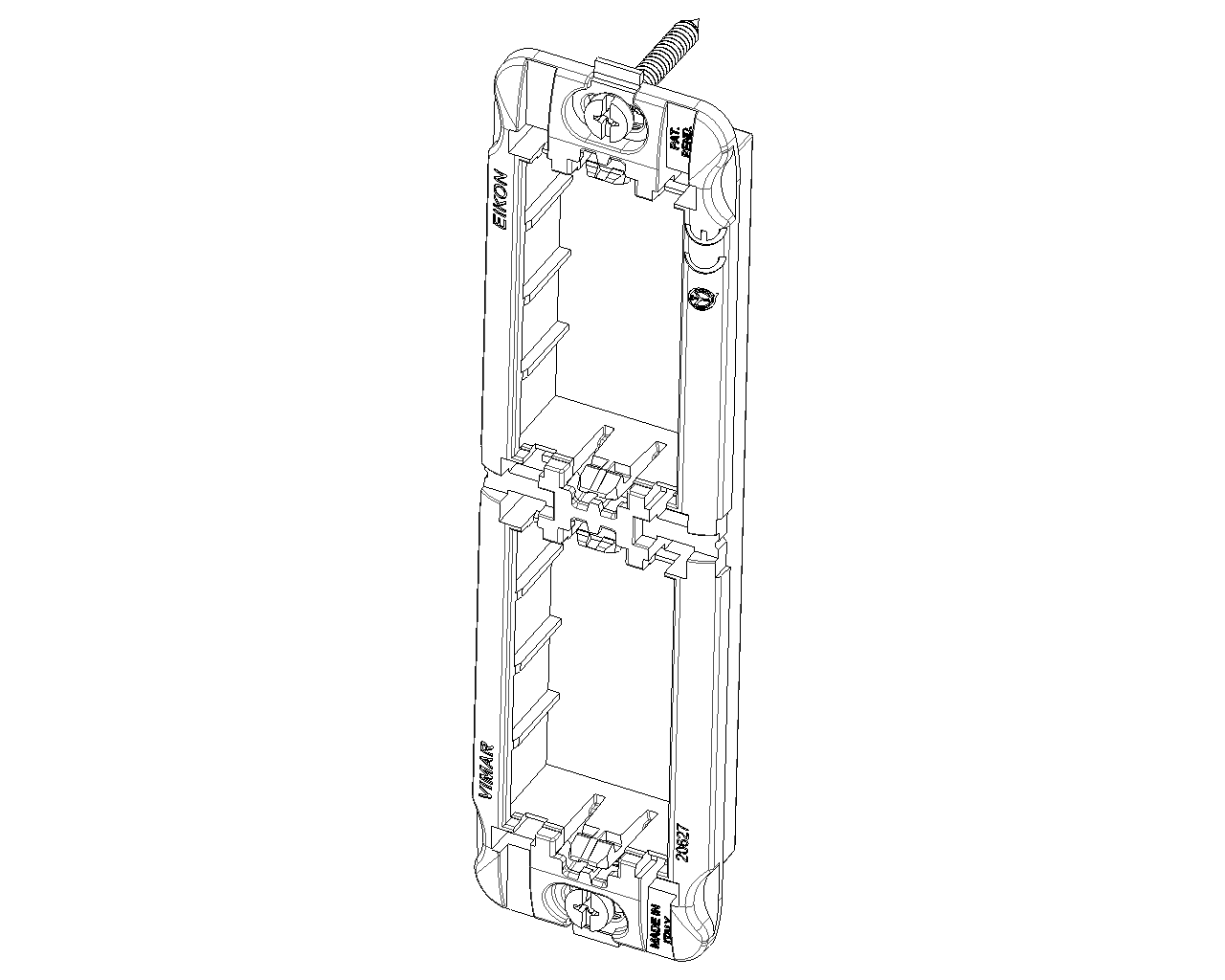

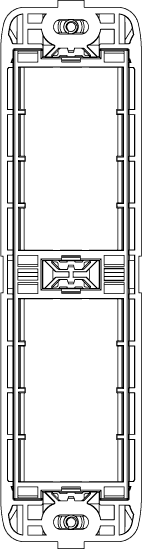

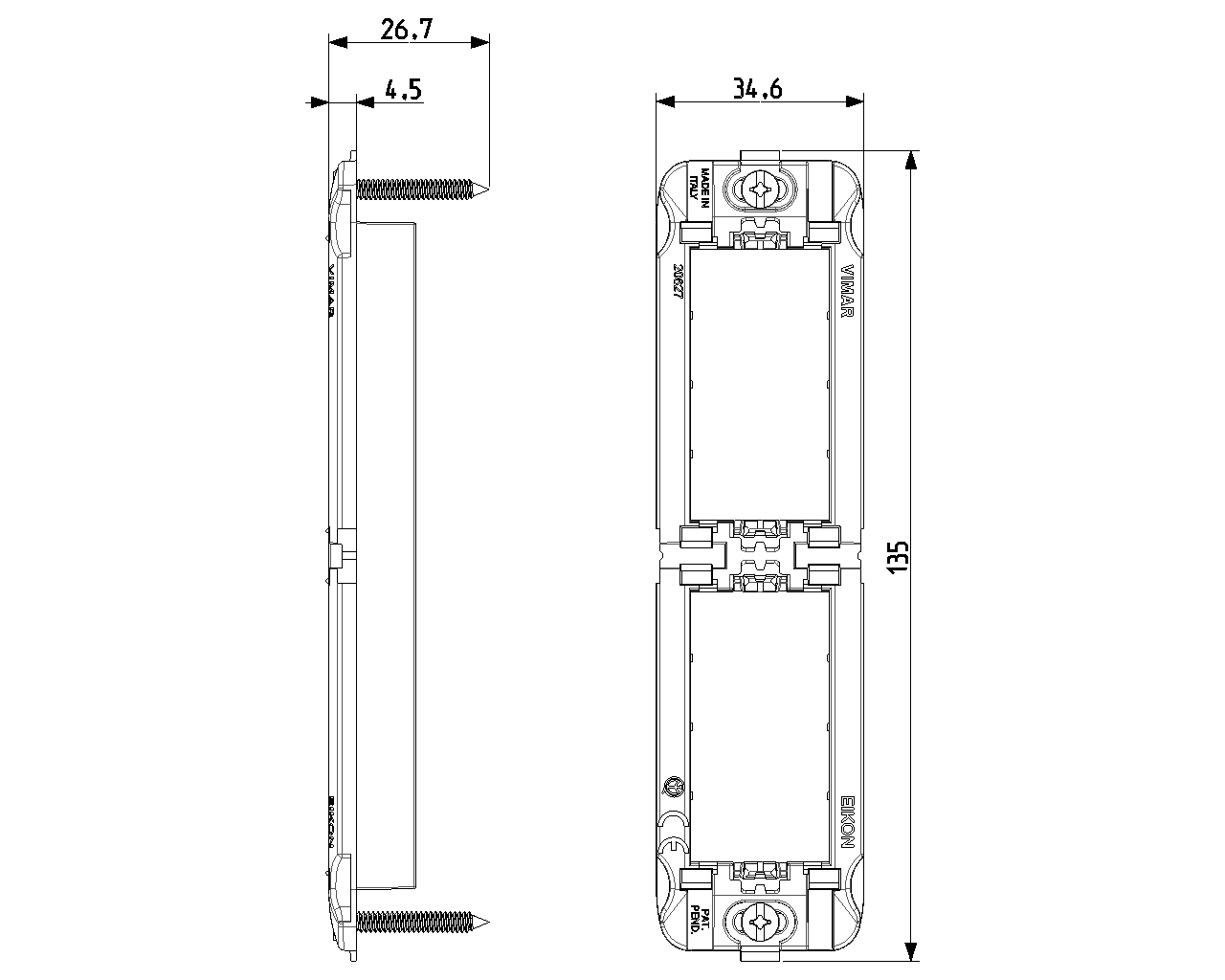

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
1

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352251502

1 NR

3.5x13.5x2.1 [cm]

15.27 [g]

8007352251519

10 NR

18.8x13.8x7 [cm]

214.73 [g]
