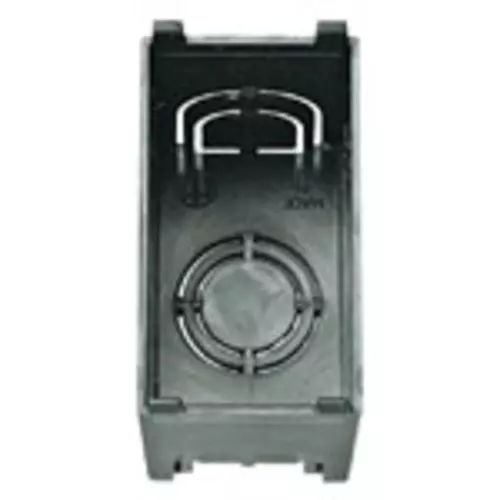

Flush mounting box for panel mounting
Flush mounting box for panel mounting frames (GW 960 °C), black

Product Status
3 - Active

Drawings

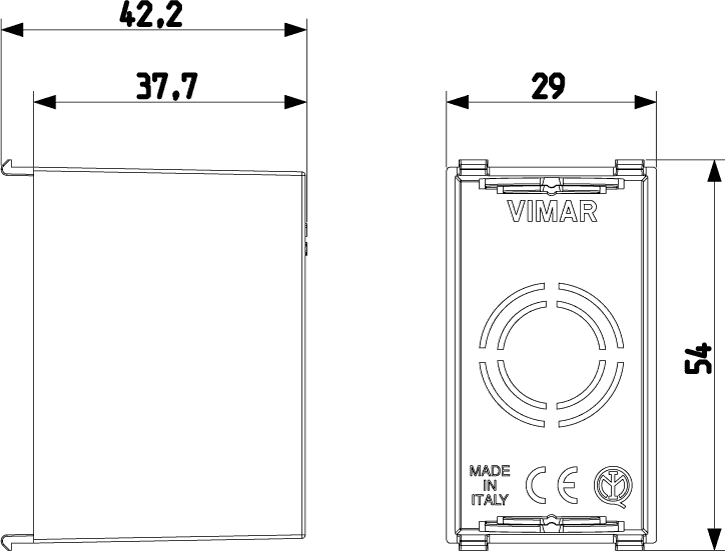

view encumbered art. 16776.AU
PNG DXF

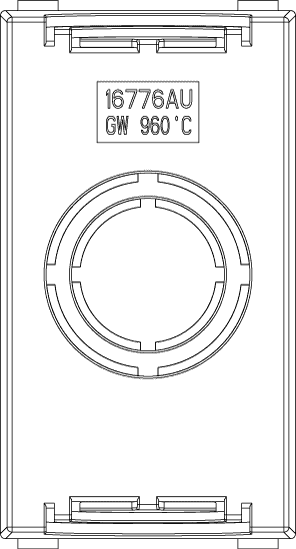

rear view art. 16776.AU
PNG DXF

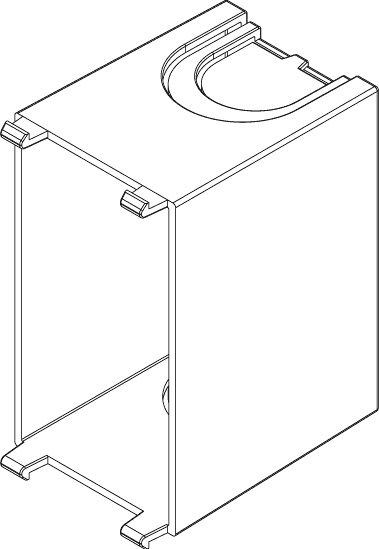

3D view art. 16776.AU
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Other
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Single
Provided with revolving ring
No
Couplable
No
Equipped with
None
Diameter
25 mm
Length
54,00 mm
Width
29,00 mm
Depth
0,00 - 42,20 mm
Inner depth
36,20 mm
For number of electric fittings
1
Mounting switching equipment
Spread
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Suitable for cable diameter
0 - 25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
3
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Black
Degree of protection (IP)
IP40
Cover model
None
Transparent cover
No
Cover attachment
Other
Sealable
No
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 12 NR

Barcode

Barcode Qty 1 NR
8007352082496
1 NR
2.9x5.4x4.2 [cm]
9.6 [g]
Barcode Qty 12 NR
8007352084094
12 NR
14.2x9.8x9.1 [cm]
159.93 [g]
