Wiring devices / View Wireless wiring devices / EIKON / Devices

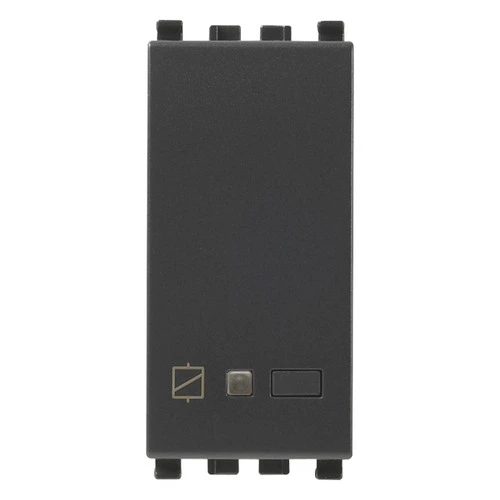

16 A IoT connected actuator grey
View Wireless connected electronic control device with NO 16(3,5)A 100-240 V~ 50/60 Hz relay output, local control with push button or remote control, double technology with Bluetooth® wireless technology 5.0 standard for the realization of View Wireless mesh system and Zigbee 3.0 standard, function for measuringthe instant power and load cut-off threshold, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, grey
- Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
- Compatible with Alexa, Google Home and IFTTT, using the dedicated gateway or Zigbee hub
- Compatible with SmartThings hub
Product Status
3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (987 kb)
- Foglio istruzioni Full (551 kb)
- Feuille d’instructions Full (549 kb)
- Hoja de instrucciones Full (547 kb)
- Full instructions sheet (545 kb)
- Φυλλάδιο οδηγιών Full (720 kb)
- Anweisungsblatt Full (547 kb)
- ورقة الإرشادات Full (611 kb)
- Manuale app View Wireless (16695 kb)
- Manuel appli View Wireless (36896 kb)
- Manual app View Wireless (36835 kb)
- Manual View Wireless app (36774 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (37151 kb)
- Installationsanleitung View Wireless (36685 kb)
Drawings
Installation bus systems
Switch actuator for bus system
No
No
Yes
No
No
None
Yes
Flush-mounted
1
Yes
Yes
Yes
1
16 A
100,00 - 240,00 V
No
Yes
No
IP40
01. IMQ - Italy
19. NOM - Mexico
29. QCERT - Colombia
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
92. RoHS UAE
Barcode
| Question: | How many devices can I install in a Wireless system? |
|---|---|
| Answer: | The system allows the configuration of a maximum of 64 devices for each gateway code 14597-16497-19597-20597 |
| Question: | Which App is dedicated to system configuration? |
| Answer: | The system can be configured using the View Wireless App. |
| Question: | How do you reset the devices? |
| Answer: | Resetting is done by pressing the configuration push button for a prolonged amount of time, which must be done within 5 min of commissioning (powering) the product. |
| Question: | Which function envisages the actuator device art.14593-19593-20593-16593, configured in energy monitoring mode? |
| Answer: | The product allows the display of the energy consumed and the disconnection upon exceeding a given threshold which can be set by the user. |
| Question: | How many Energy meters art.02963 can I install in a Wireless system? |
| Answer: | Each connected system allows a maximum of 2 meters art.02963. |
| Question: | Can the connected 2-way switch art.14592-19492-19592-20592 be used as a 1-way switch for a controlled socket outlet |
| Answer: | No, as a minimum load of 2W is necessary for correct operation. To manage a controlled socket outlet, you can use art. 14593-16493-19593-20593 or art. 03981 |
| Question: | Can products 14593 and 14592 be used as light dimmers? |
| Answer: | No, these devices cannot be used in the dimmer function. |
