2P+E 16A P17/11 outlet grey - 20203

Pdf
Vimar - 20203 - 2P+E 16A P17/11 outlet grey
Foto gallery #1
Foto gallery #2
Vimar - 20203 - 2P+E 16A P17/11 outlet grey

20203
Wiring devices / Traditional wiring devices / EIKON / Devices

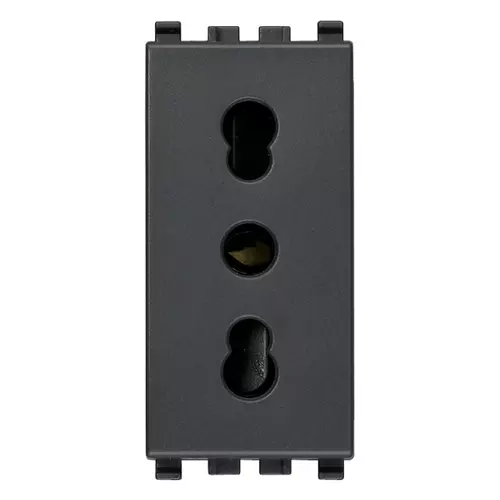

2P+E 16A P17/11 outlet grey
2P+E 16 A 250 V~ SICURY Bpresa socket outlet, Italian standard P17/11, grey

Product Status
3 - Active

You may also be interested in

20593
20593 - 16 A IoT connected actuator grey

Drawings

view encumbered art. 20203
PNG DXF

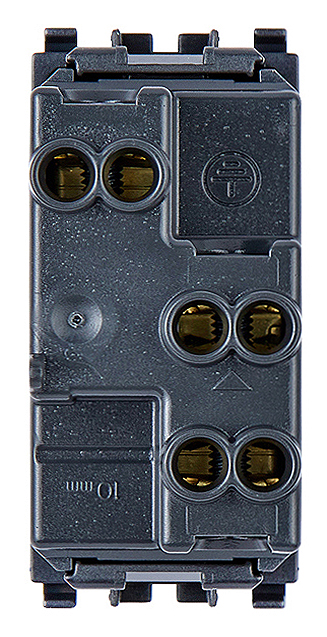

rear view art. 20203
PNG DXF
3D view art. 20203
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type Bipasso
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7024
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
22,30 mm
Device height
49,00 mm
Device depth
34,50 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

50. Product Environm. Profile

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352249356
1 NR
4.1x2.8x5.3 [cm]
31.33 [g]
Barcode Qty 50 NR
8007352249363
50 NR
21.6x11.6x14.3 [cm]
1,578 [g]
Barcode Qty 500 NR
8007352290532
500 NR
57.5x22.5x30 [cm]
17,120 [g]
Barcode Qty 10,500 NR
8007352352230
10,500 NR
80x120x103 [cm]
371,000 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
