Frame for RF device grey

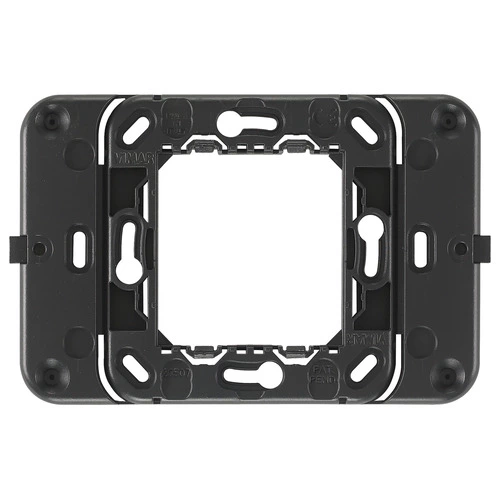

Frame for surface mounting of EnOcean, Bluetooth, ZigBee radiofrequency devices, to complete with Eikon or Plana 2-central-module or 2-module cover plates, grey

  • The honeycomb structure gives structural strength
  • The slots in the corners enable fixing to the panel
  • The hooking teeth encourage fixing in series for the installation of multiple modules
  • Thanks to the central slots, the support can be fixed onto the wall level

Product Status
3 - Active

You may also be interested in

07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm

Drawings

view encumbered art. 20507
PNG DXF
rear view art. 20507
PNG DXF
3D view art. 20507
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352362710
1 NR
11.3x7.3x0.9 [cm]
26.3 [g]
Barcode Qty 10 NR
8007352362727
10 NR
13.9x11.9x7.4 [cm]
309.2 [g]
Barcode Qty 200 NR
8007352647541
200 NR
38.5x29.5x25 [cm]
6,640 [g]
