20496
Safety / By-alarm Plus / EIKON / Devices

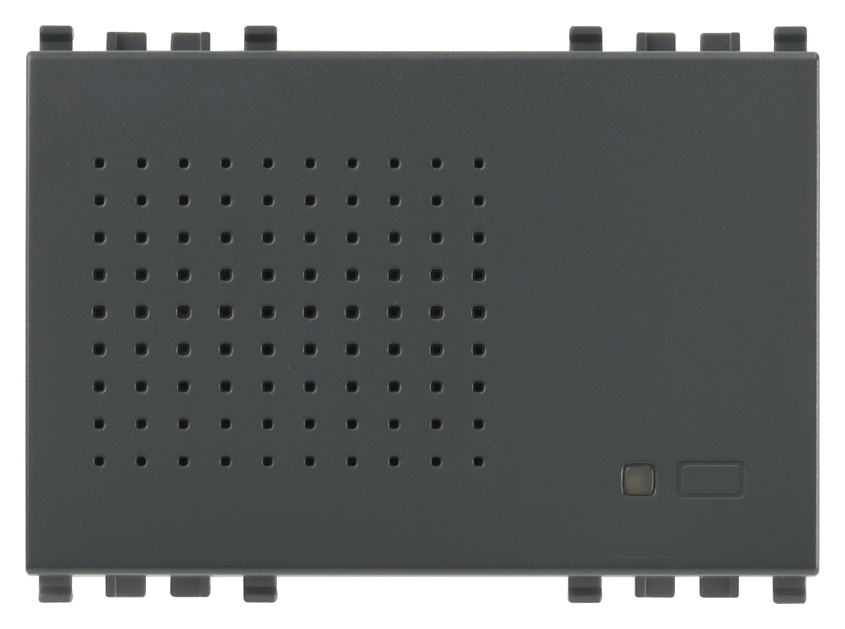

By-alarm - Inner siren grey
By-alarm siren for indoor use, 2 selectable ringtones, on/off beep volume setting, alarm signalling with red LED, grey - 3 modules
Product Status
3 - Active
Drawings
Class group
Optical and acoustic signalling equipment
Optical and acoustic signalling equipment
Class
Alarm signal
Alarm signal
Housing colour
Grey
Grey
Housing material
Plastic
Plastic
Type of tone
Other
Other
Loudness
77 dB
77 dB
Nominal voltage
12,00 V
12,00 V
Built-in transformer
No
No
Type of current
DC
DC
Electricity consumption
0,11 A
0,11 A
Mounting method
Flush-mounted
Flush-mounted
Degree of protection (IP)
IP40
IP40
00. CE Marking - EU
21. IMQ-SICUREZZA - Italy
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352548701
1 NR
11.2x9.6x9.8 [cm]
130.6 [g]
8007352648678
18 NR
37.5x30x21 [cm]
2,780 [g]
| Question: | Where do I connect and how do I set the parameters for the siren for outdoor use art.01715 and indoor use art.20496/19496/14496? |
|---|---|
| Answer: | Any system sirens must be connected to the terminals +S INT (indoor siren) and +S EXT (outdoor siren) on the control panel. The siren parameters must be set in the section “Relays > Relay 1” in the By-alarm Manager software. In addition to the general parameters of “Relay 1” you must define which zones generate the relay in the event of active system unbalancing in “Activation by zone”. |
