IR presence detector grey - 20485

Pdf
Vimar - 20485 - IR presence detector grey
Foto gallery #1
Vimar - 20485 - IR presence detector grey

20485
Smart systems&products / By-me Plus / EIKON / Devices

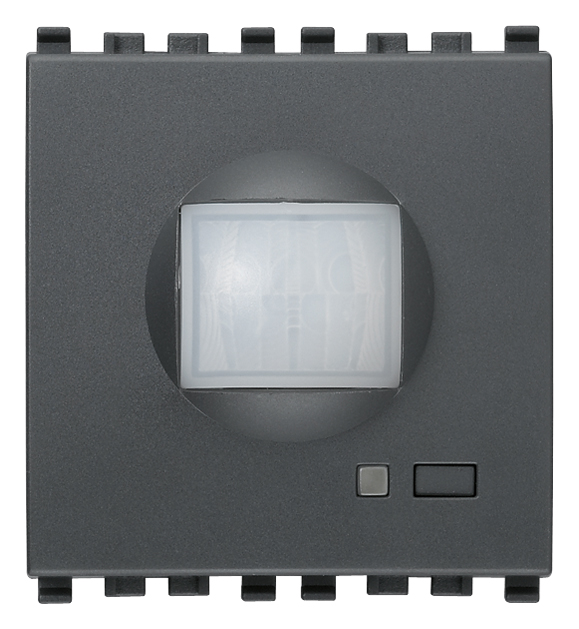

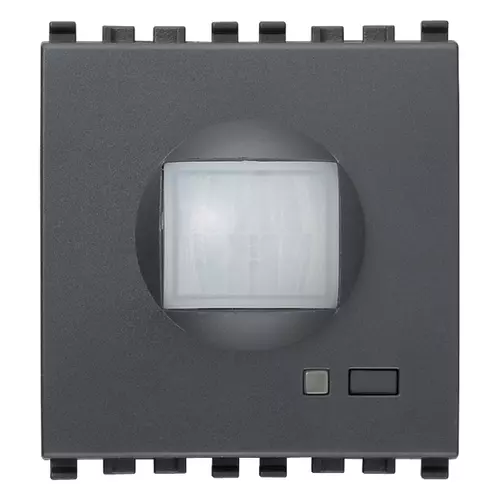

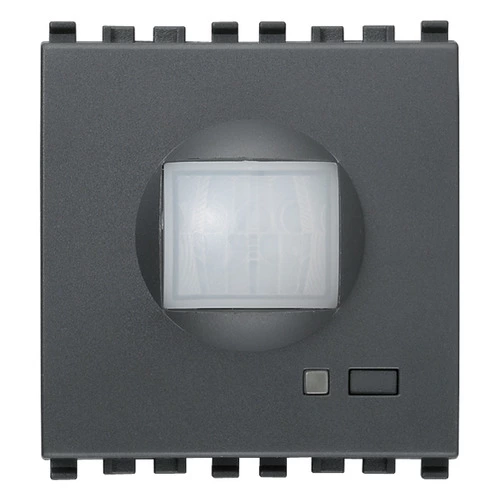

IR presence detector grey
Passive infrared motion detector, grey - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Model
Movement sensor
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes
Substation input
No
Creep-under protection
No
Operation mode switch
No
Animal zone
No
Staircase light controller
No
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Switch-off delay self-learning
No
DALI-2 certified
No
Optimum mounting height
1,20 m
Max. reach sideways
0,00 m
Max. reach frontally
10 m
Diameter reach on floor
0 m
Detection angle vertical
0 - 36
Detection angle horizontal
0,00 - 112,00
Number of channels
1
Switching power
0 W
Min. switch-on time
10 s
Max. duty cycle
250 min
Min. depth of built-in installation box
30 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

46. UK PSTI compliance

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352251755
1 NR
11.2x9.6x9.8 [cm]
118.87 [g]
