Quid - Rolling shutters 2-way switch whi - 20196.B

Pdf
Vimar - 20196.B - Quid - Rolling shutters 2-way switch whi
Vimar - 20196.B - Quid - Rolling shutters 2-way switch whi

20196.B
Wiring devices / Traditional wiring devices / EIKON / Devices

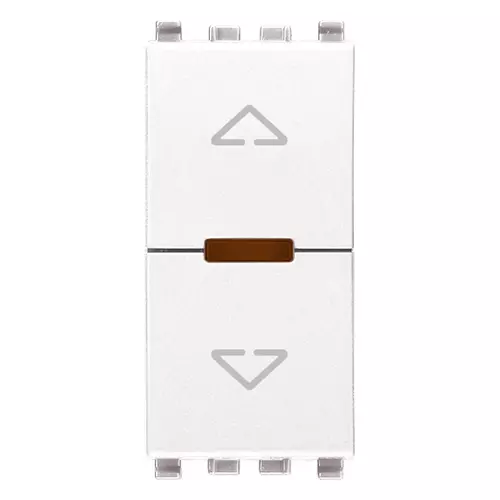

Quid - Rolling shutters 2-way switch whi
Quid electronic switch for centralised operation of roller shutter with slat orientation with relay outputs for cosφ 0.6 motor 2 A 220-240 V~ 50/60 Hz, position saving, white

Product Status
3 - Active

You may also be interested in

03992
03992 - Quid - Step relay module 10A+reset
03997
03997 - Quid rolling shutters module
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Group push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
2
Rated current
5,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes

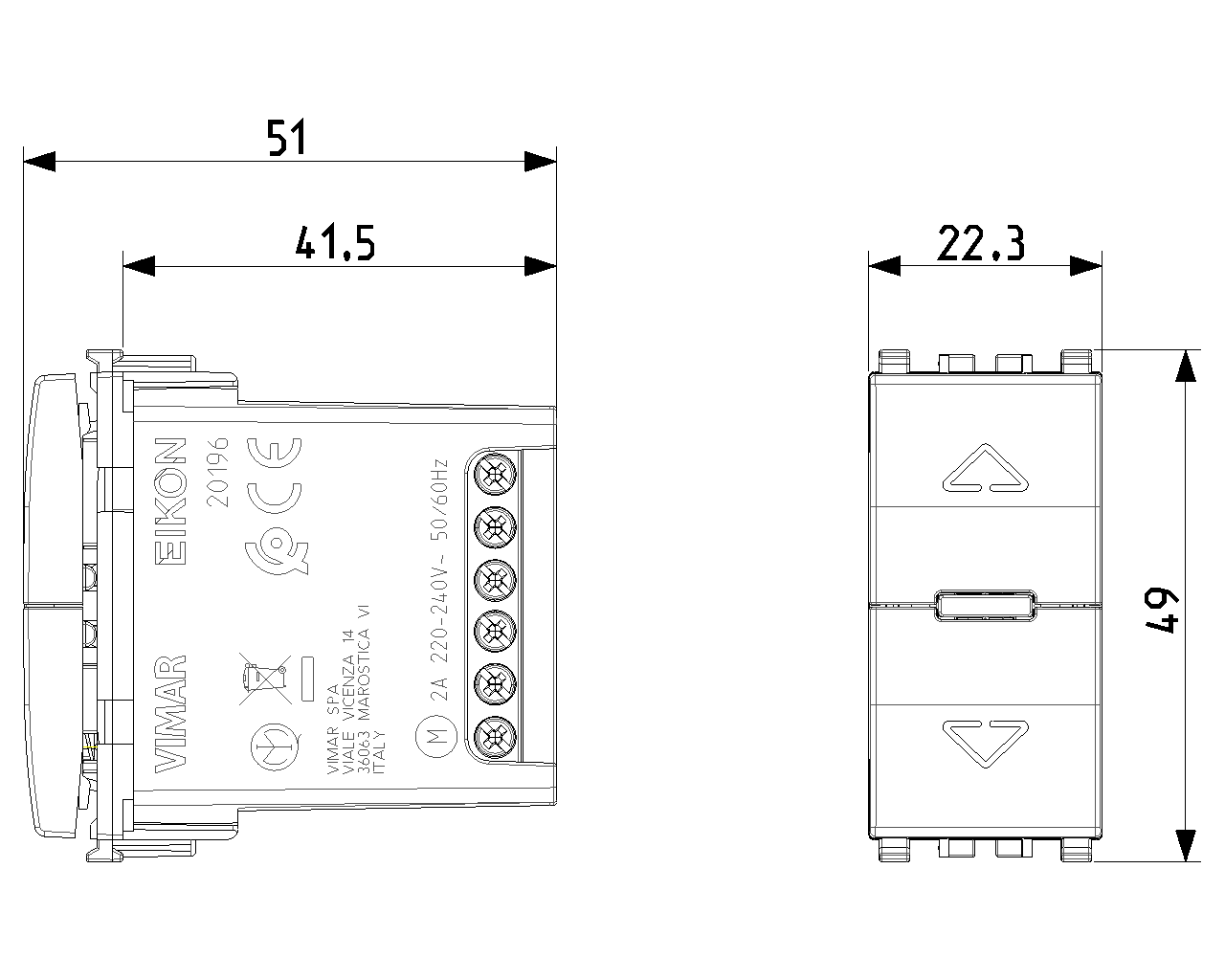

Device height
49,00 mm
Device depth
51,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352623170
1 NR
5.1x4.3x5.3 [cm]
45.4 [g]
Barcode Qty 10 NR
8007352623187
10 NR
26.9x11.6x4.9 [cm]
475 [g]
Barcode Qty 200 NR
8007352623712
200 NR
47.5x27x29 [cm]
9,619 [g]
