19788
System infrastructure / Enclosures and control units / Connector block boxes / Desktop

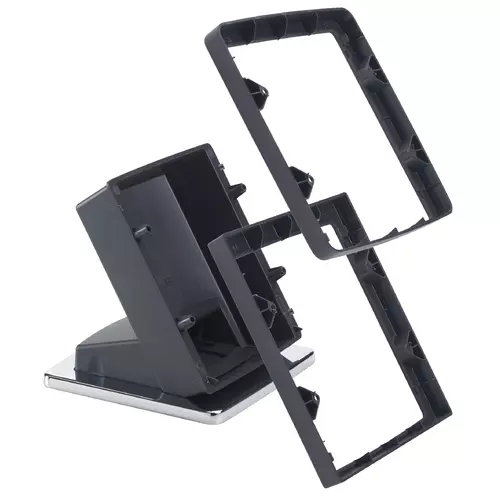

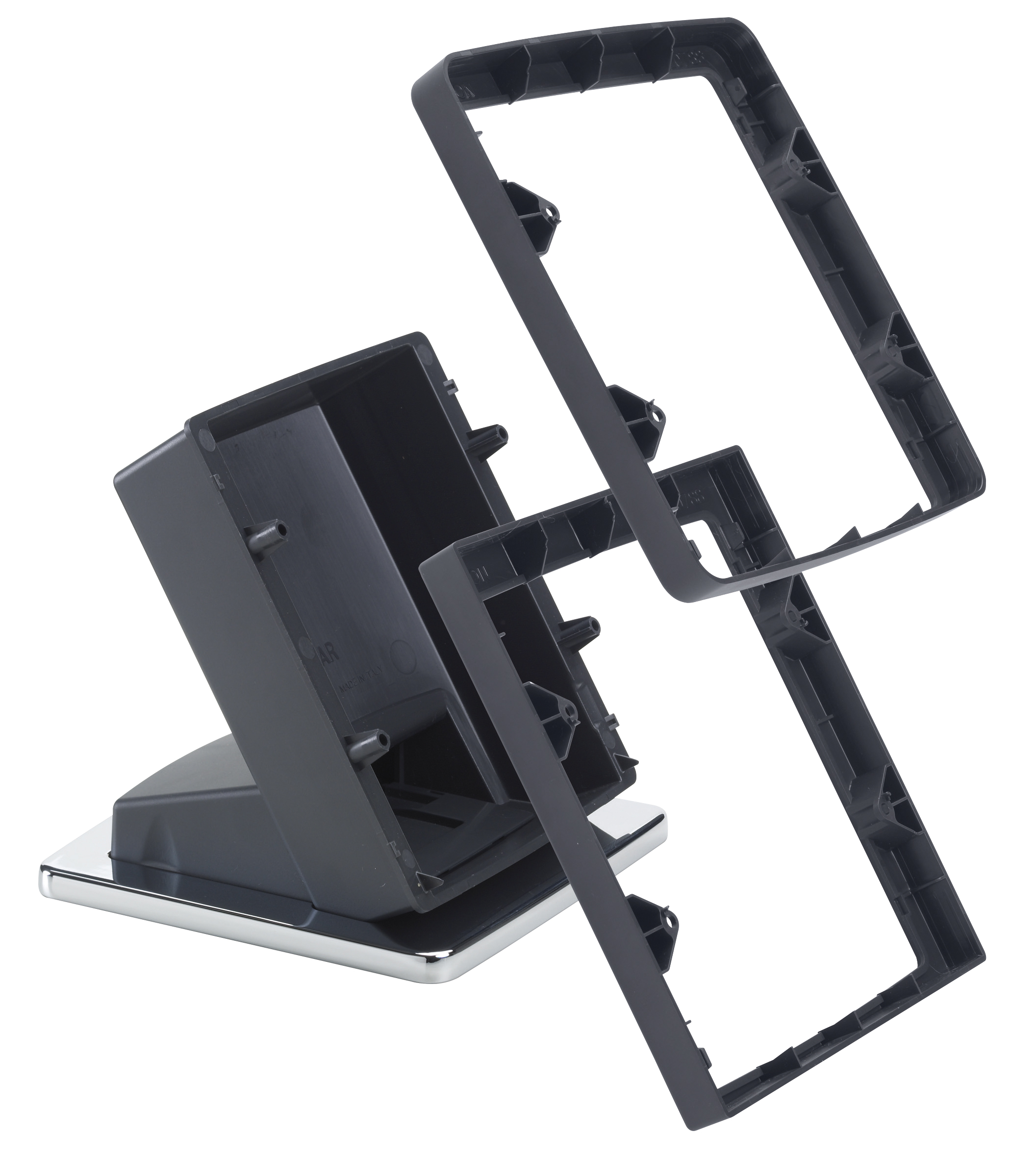

Table frame 8M grey
Table mounting box, 8(4+4) modules, grey. Delivered with frame for Arké Classic or Round cover plate
Product Status
3 - Active
Sheets, Manuals, Documentation
Video
Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Surface mounted box for flush-mounted switching equipment
Assembly arrangement
Other
Other
Suitable for modular domestic switching devices
Yes
Yes
Number of modules (module system)
8
8
Number of units
8
8
Mounting direction
Horizontal
Horizontal
Material
Plastic
Plastic
Material quality
Other
Other
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Grey
Grey
RAL-number (similar)
7015
7015
Transparent
No
No
With cover frame
No
No
With duct entry
No
No
With cable entry
Yes
Yes
With screw gland entry
No
No
Shock resistant
Yes
Yes
Degree of protection (IP)
IP20
IP20
Device width
142,30 mm
142,30 mm
Device height
150,30 mm
150,30 mm
Device depth
134,00 mm
134,00 mm
Minimum order quantity: 1 NR
Barcode
8007352451766
1 NR
19x16.5x13 [cm]
1,016 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
