Frame 8M with screws - 19618

19618
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

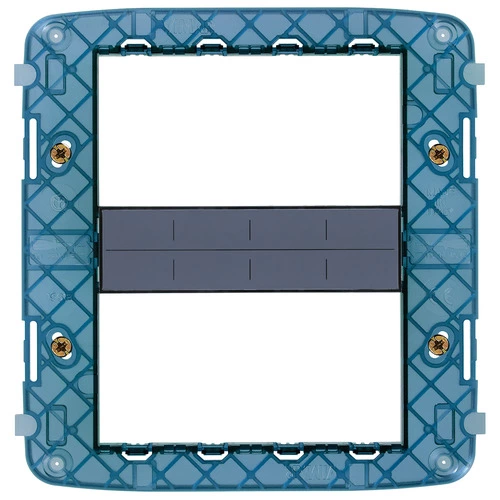

Frame 8M with screws
8 (4+4)-module mounting frame, with screws, for V71318 and V71718 flush and 19788 table mounting boxes

Product Status
3 - Active

You may also be interested in

21618.C - Cover 8M Eikon/Arké/Plana mount-frame

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Video

• Arké lives in your time

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
4

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 5 NR

---

Barcode

8007352450714

1 NR

14x14.4x2 [cm]

59 [g]

8007352450721

5 NR

17.5x16.3x9.8 [cm]

375 [g]
