Classic plate 3M technopolymer matt blue - 19653.76

Pdf
Vimar - 19653.76 - Classic plate 3M technopolymer matt blue
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 19653.76 - Classic plate 3M technopolymer matt blue

19653.76
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

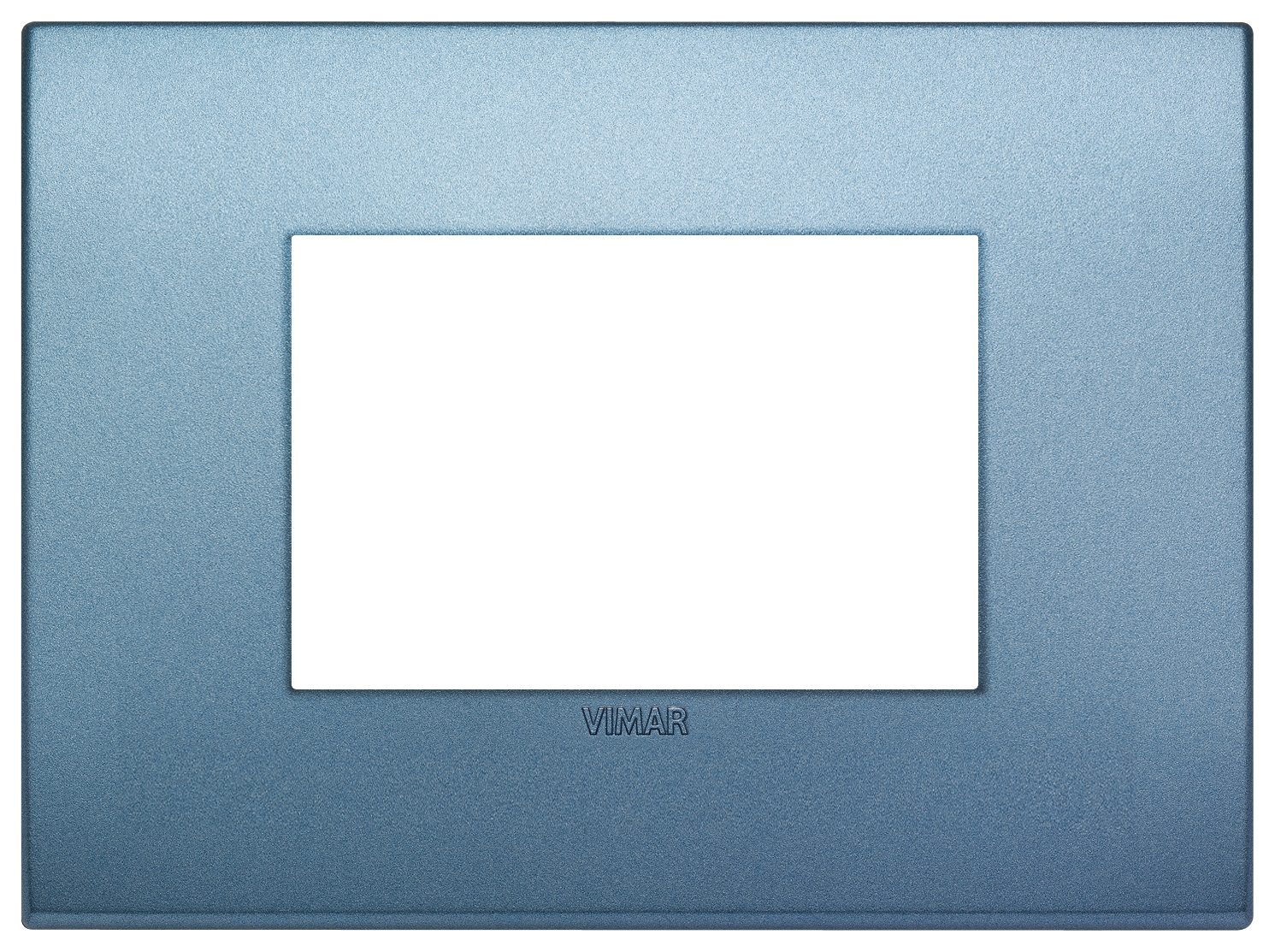

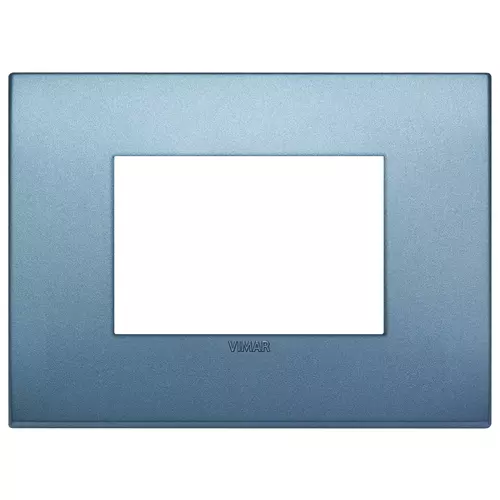

Classic plate 3M technopolymer matt blue
3-module Classic cover plate, technopolymer, matt blue

Product Status
3 - Active

You may also be interested in

19613
19613 - Frame 3M +screws
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Blue
RAL-number (similar)
5014
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
122,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352446182
1 NR
12.2x9x0.9 [cm]
20 [g]
Barcode Qty 10 NR
8007352446199
10 NR
14.1x9.8x9.9 [cm]
249 [g]
Barcode Qty 160 NR
8007352639621
160 NR
39x29.5x22 [cm]
4,474 [g]
