Frame 3M +screws - 19613

19613
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

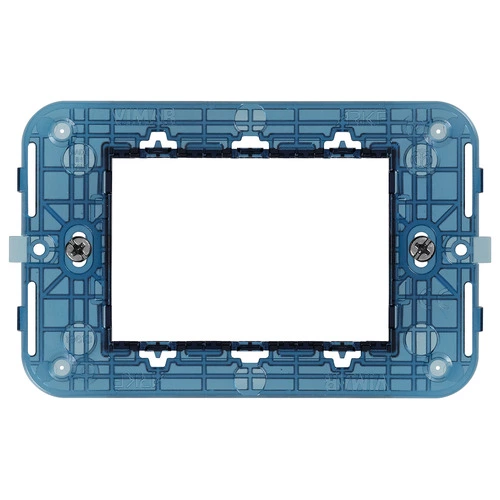

Frame 3M +screws
3-module mounting frame, with screws, for 3-module mounting boxes

Product Status
3 - Active

You may also be interested in

21613.C - Cover 3M Eikon/Arké/Plana mount-frame

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Video

• Arké lives in your time

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
3

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352427600

1 NR

11.8x7.3x2.1 [cm]

20.8 [g]

8007352427617

10 NR

11.8x7.3x21 [cm]

210.6 [g]

8007352427624

200 NR

38x34x24 [cm]

4,668 [g]

8007352482616

6,400 NR

120x80x127 [cm]

149,376 [g]
