By-alarm - Inner siren grey - 19496

Pdf

19496
Safety / By-alarm Plus / ARKÉ / Devices

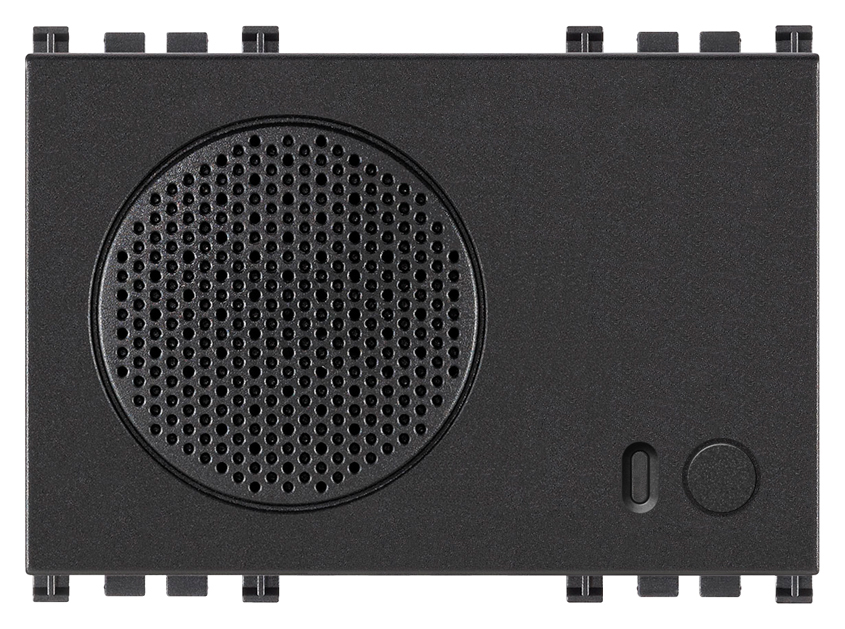

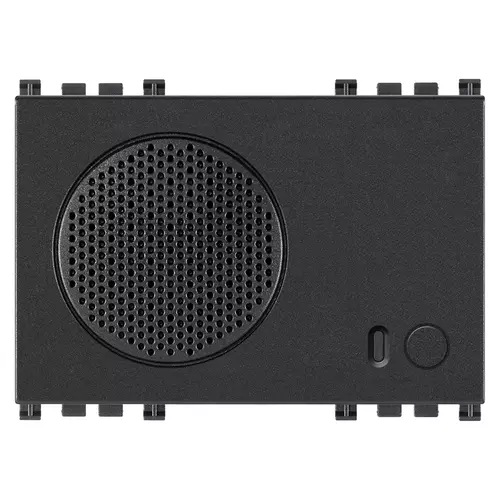

By-alarm - Inner siren grey
By-alarm siren for indoor use, 2 selectable ringtones, on/off beep volume setting, alarm signalling with red LED, grey - 3 modules

Product Status
3 - Active

Class group
Optical and acoustic signalling equipment
Class
Alarm signal
Housing colour
Grey
Type of tone
Other
Loudness
77 dB
Nominal voltage
12,00 V
Built-in transformer
No
Type of current
DC
Electricity consumption
0,11 A
Mounting method
Flush-mounted
Degree of protection (IP)
IP40

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352548688
1 NR
11.2x9.6x9.8 [cm]
129.4 [g]
Barcode Qty 18 NR
8007352648722
18 NR
37.5x30x21 [cm]
2,780 [g]
Question: Where do I connect and how do I set the parameters for the siren for outdoor use art.01715 and indoor use art.20496/19496/14496?
Answer: Any system sirens must be connected to the terminals +S INT (indoor siren) and +S EXT (outdoor siren) on the control panel. The siren parameters must be set in the section “Relays > Relay 1” in the By-alarm Manager software. In addition to the general parameters of “Relay 1” you must define which zones generate the relay in the event of active system unbalancing in “Activation by zone”.
